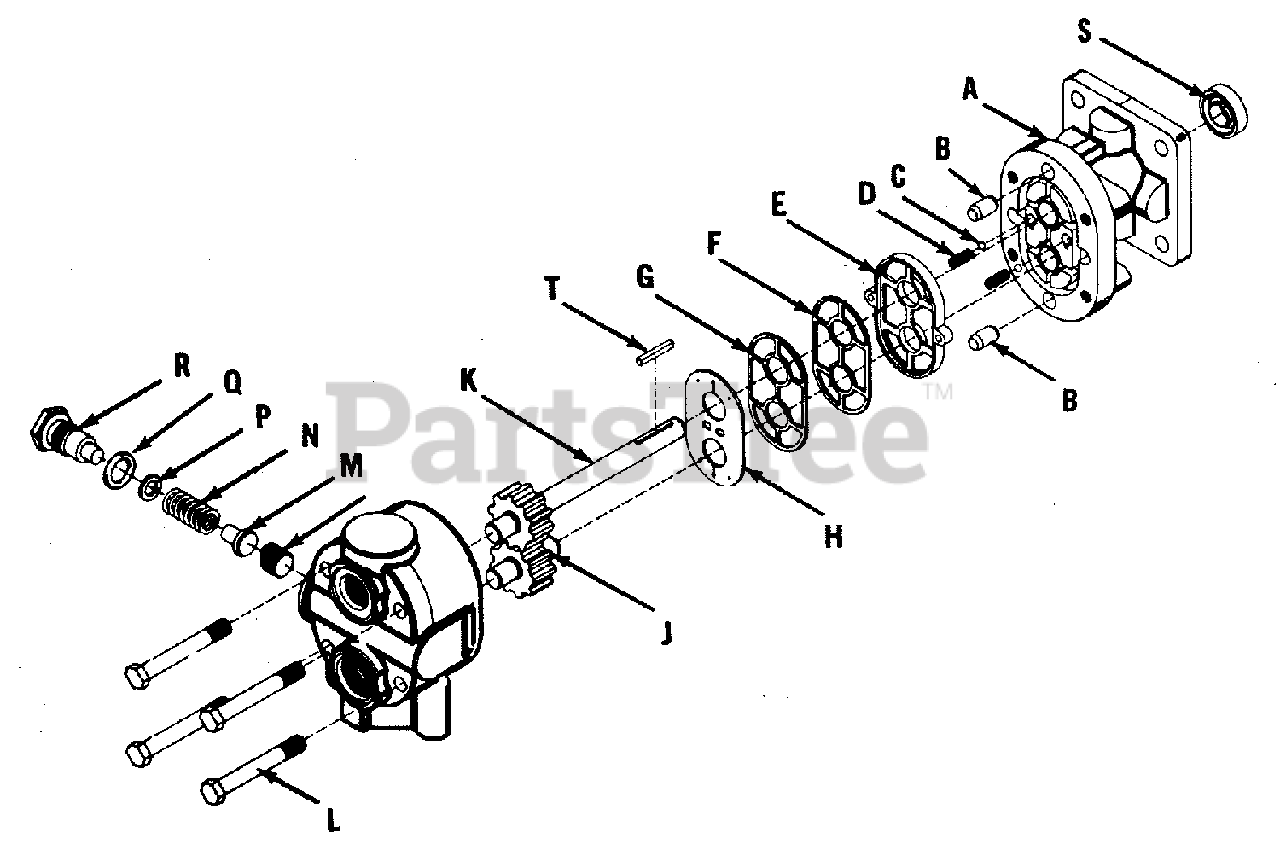

990412 - Simplicity Loader, Front End Pump Group (3646I07) Parts Diagram

Loader, Front End

Pump Group (3646I07) Parts Diagram

  • Title

A

Simplicity 125050

FRONT PLATE ASSEMBLY

$

$

Not available

B

Simplicity 125055

PIN, Dowel

$

$

Not available

C

Simplicity 125084

BALL, Steel

$

$

Not available

D

Simplicity 125051

SPRING, Check

$

$

Not available

E

Simplicity 125047

SEAL, Diaphragm

$

$

Not available

F

Simplicity 125048

GASKET, Protector

$

$

Not available

G

Simplicity 125056

GASKET, Back-up

$

$

Not available

H

Simplicity 125049

DIAPHRAGM

$

$

Not available

J

Simplicity 125052

IDLER SHAFT ASSEMBLY

$

$

Not available

K

Simplicity 125053

DRIVE SHAFT ASSEMBLY

$

$

Not available

L

Simplicity 715076

SCREW, Hex, Cap, 1/4"-20 NC x 2"
(Superseded to 715293)

$39.99

$

Usually ships in 2-12 days

0

M

Simplicity 125043

POPPET

$

$

Not available

N

Simplicity 125045

SPRING, Relief

$

$

Not available

P

Simplicity 125044

SHIM

$

$

Not available

Q

Simplicity 125083

RING, "O"

$

$

Not available

R

Simplicity 125054

PLUG, Hex

$

$

Not available

S

Simplicity 125046

SEAL, Shaft

$

$

Not available

T

Simplicity 125085

KEY

$

$

Not available

U

Simplicity 125099

BACK PLATE REPAIR KIT

$

$

Not available

V

Simplicity 125100

MAJOR SEAL REPAIR KIT

$

$

Not available
