990419 - Simplicity 32" Rotary Snow Thrower Attachment HITCH GROUP Parts Diagram

32" Rotary Snow Thrower Attachment

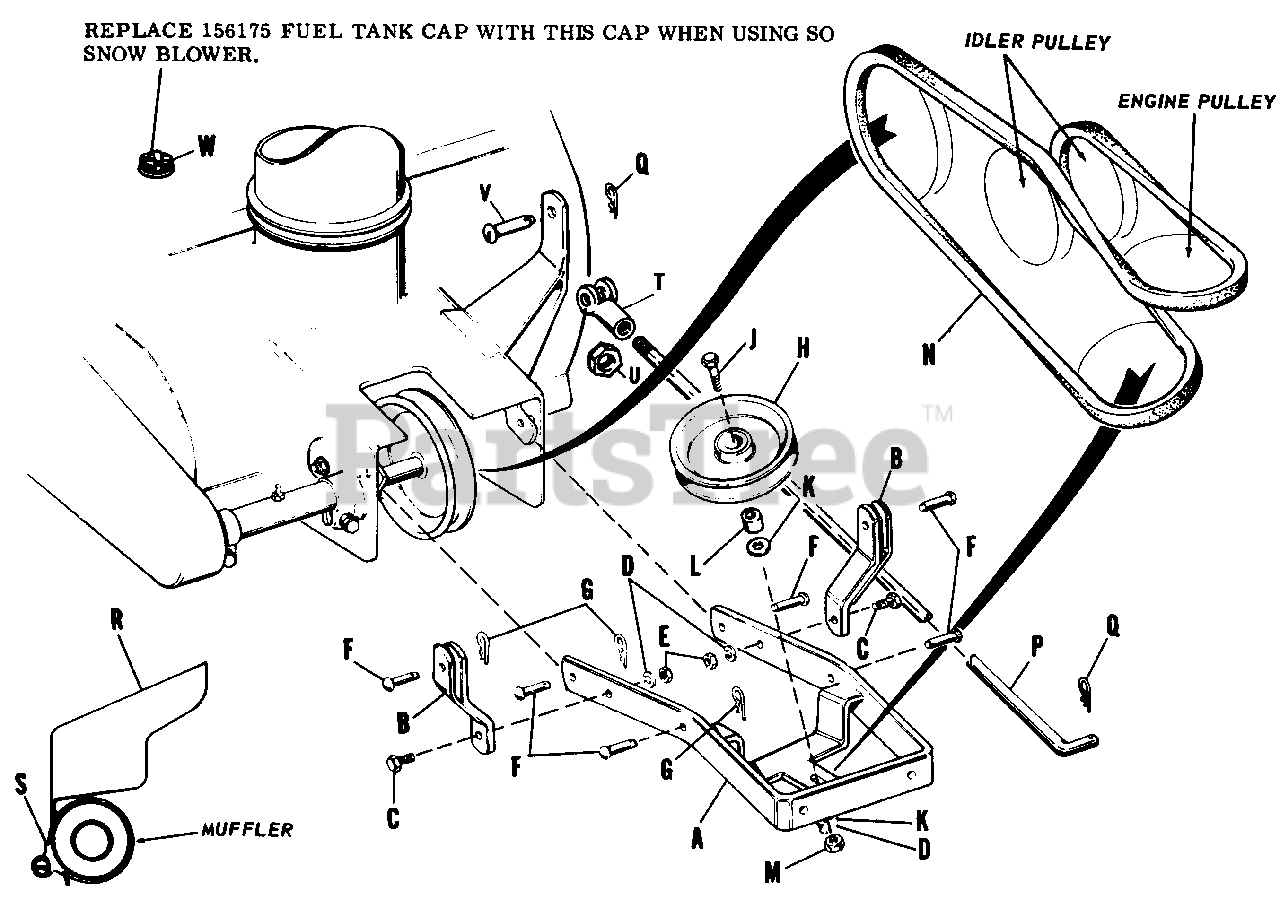

HITCH GROUP Parts Diagram

  • Title

A

Simplicity 106500

Push Arm Assembly

$

$

Not available

B

Simplicity 106504

Support Arm Assembly

$

$

Not available

C

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

D

Simplicity 2720002

Lock Washer, 3/8 "

$

$

Not available

E

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

F

Simplicity 2156306SM

Pin

$7.49

$

In Stock, Qty 20+

0

G

Simplicity 2106788

Spring Clip

$

$

Not available

H

Simplicity 2101096SM

Pulley

$59.99

$

In Stock, only 1 left!

0

J

Simplicity 2705010

Hex Capscrew, 3/8"-16 x 1-3/4" lg.

$

$

Not available

K

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

L

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 4 left!

0

M

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

N

Simplicity 2106723

"V" Belt

$

$

Not available

P

Simplicity 107079

Front Lift Rod

$

$

Not available

Q

Simplicity 2106788

Spring Clip

$

$

Not available

R

Simplicity 106714

Deflector

$

$

Not available

S

Simplicity 106715

Clamp

$

$

Not available

T

Simplicity 2154304SM

Adj. Yoke

$67.99

$

Usually ships in 2-12 days

0

U

Simplicity 717008

Hex Nut,Full, 1/2-20

$

$

Not available

V

Simplicity 2154305

Yoke Pin

$

$

Not available

W

Simplicity 106798

Cap (winter) Fuel Tank

$

$

Not available
