990419 - Simplicity 32" Rotary Snow Thrower Attachment ROTOR GROUP Parts Diagram

32" Rotary Snow Thrower Attachment

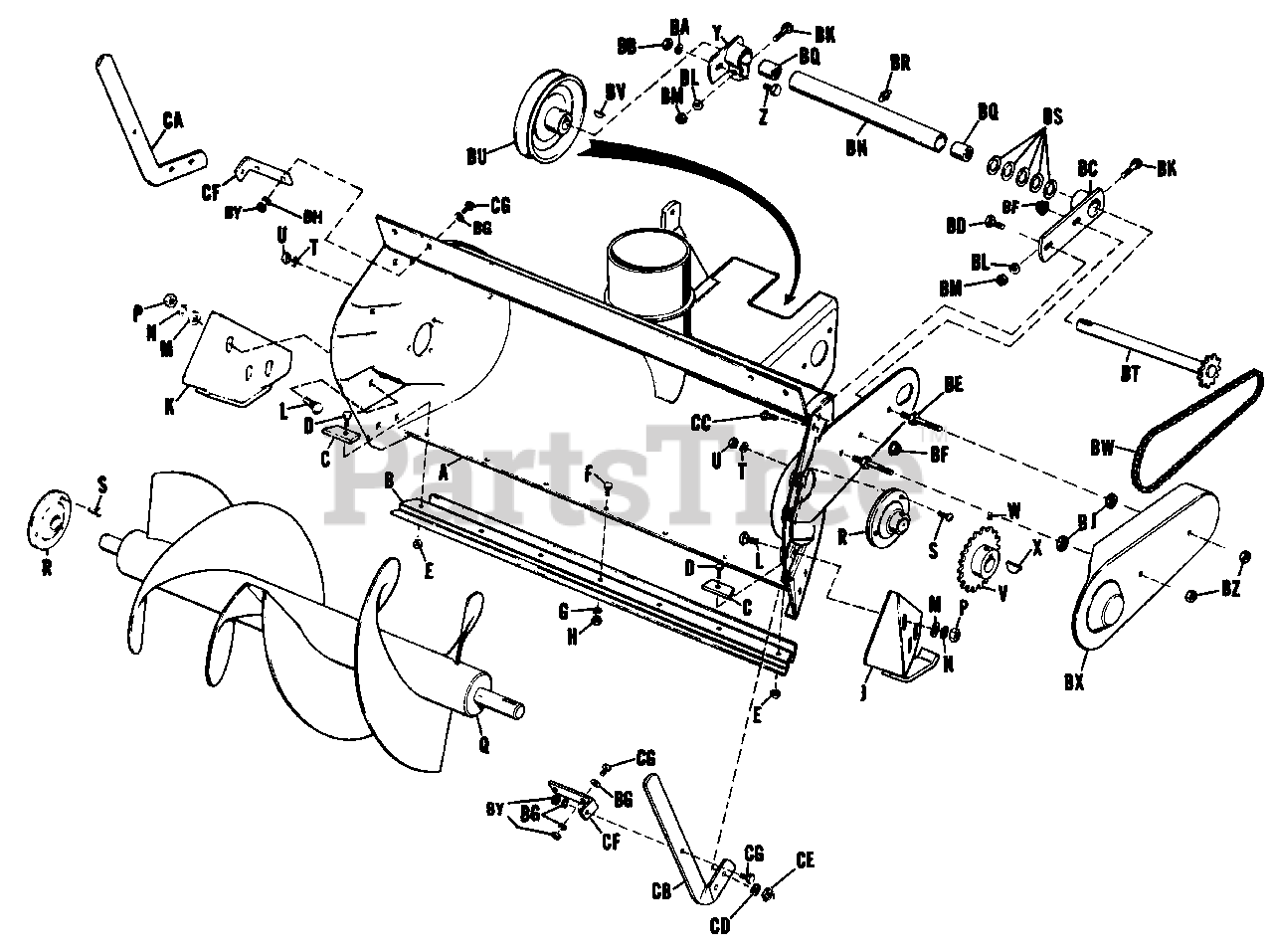

ROTOR GROUP Parts Diagram

  • Title

A

Simplicity 106462

Body Assembly

$

$

Not available

B

Simplicity 106488

Body Scraper

$

$

Not available

C

Simplicity 106137

Scraper Clamp

$

$

Not available

D

Simplicity 2715073

Hex Capscrew, 5/16"-18 x 7/8" lg.

$

$

Not available

E

Simplicity 2717511

Hex Lock Nut, Full, 5/16"-lg.

$

$

Not available

F

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8" lg.

$

$

Not available

G

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

H

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

J

Simplicity 106610

Shoe Assembly, Left Hand

$

$

Not available

K

Simplicity 106612

Shoe Assembly, Right Hand

$

$

Not available

L

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4" lg.

$

$

Not available

M

Simplicity 2719001

Plain Washer, 3/8 "

$

$

Not available

N

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

P

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

Q

Simplicity 106511

Rotor Assembly

$

$

Not available

R

Simplicity 2106532SM

Ball Bearing

$67.99

$

Usually ships in 2-12 days

0

S

Simplicity 2705017

Hex Capscrew 5/16"-18 x 3/4" lg.

$

$

Not available

T

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

U

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

V

Simplicity 106475

Rotor Sprocket

$

$

Not available

W

Simplicity 2713503

Set Screw, Socket Hd., Cup Pt., 5/16"-18 x 5/16" lg.

$

$

Not available

X

Simplicity 2151040SM

Hi Pro Key

$9.49

$

In Stock, only 2 left!

0

Y

Simplicity 106476

Clamp Support Assembly

$

$

Not available

Z

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

BA

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BB

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

BC

Simplicity 106479

Clamp Support Assembly

$

$

Not available

BD

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

BE

Simplicity 106481

Stud

$

$

Not available

BF

Simplicity 2718035

Whizlock Nut 3/8-16

$

$

Not available

BG

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

BH

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BJ

Simplicity 2717510

Hex Lock Nut, Full, 3/8"-16

$

$

Not available

BK

Simplicity 2705018

Hex Capscrew, 5/16"-18 x 1-1/2 lg.

$

$

Not available

BL

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BM

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

BN

Simplicity 106482

Bearing Housing

$

$

Not available

BQ

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, only 2 left!

0

BR

Simplicity 2727002

Grease Fitting #1641 Alemite

$

$

Not available

BS

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 11

0

BT

Simplicity 106483

Shaft Assembly

$

$

Not available

BU

Simplicity 106485

Pulley

$

$

Not available

BV

Simplicity 2725003

Woodruff Key

$

$

Not available

BW

Simplicity 106486

Chain, w/Conn. Link

$

$

Not available

BX

Simplicity 106487

Chain Guard

$

$

Not available

BY

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

BZ

Simplicity 2718035

Whizlock Nut 3/8-16

$

$

Not available

CA

Simplicity 106417

Drift Cutter, Right Hand

$

$

Not available

CB

Simplicity 106418

Drift Cutter, Left Hand

$

$

Not available

CC

Simplicity 2705004

Hex Capscrew, 3/8"-16 x 3/4" lg.

$

$

Not available

CD

Simplicity 2720002

Lock Washer, 3/8 "

$

$

Not available

CE

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

CF

Simplicity 106508

Bracket

$

$

Not available

CG

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available
