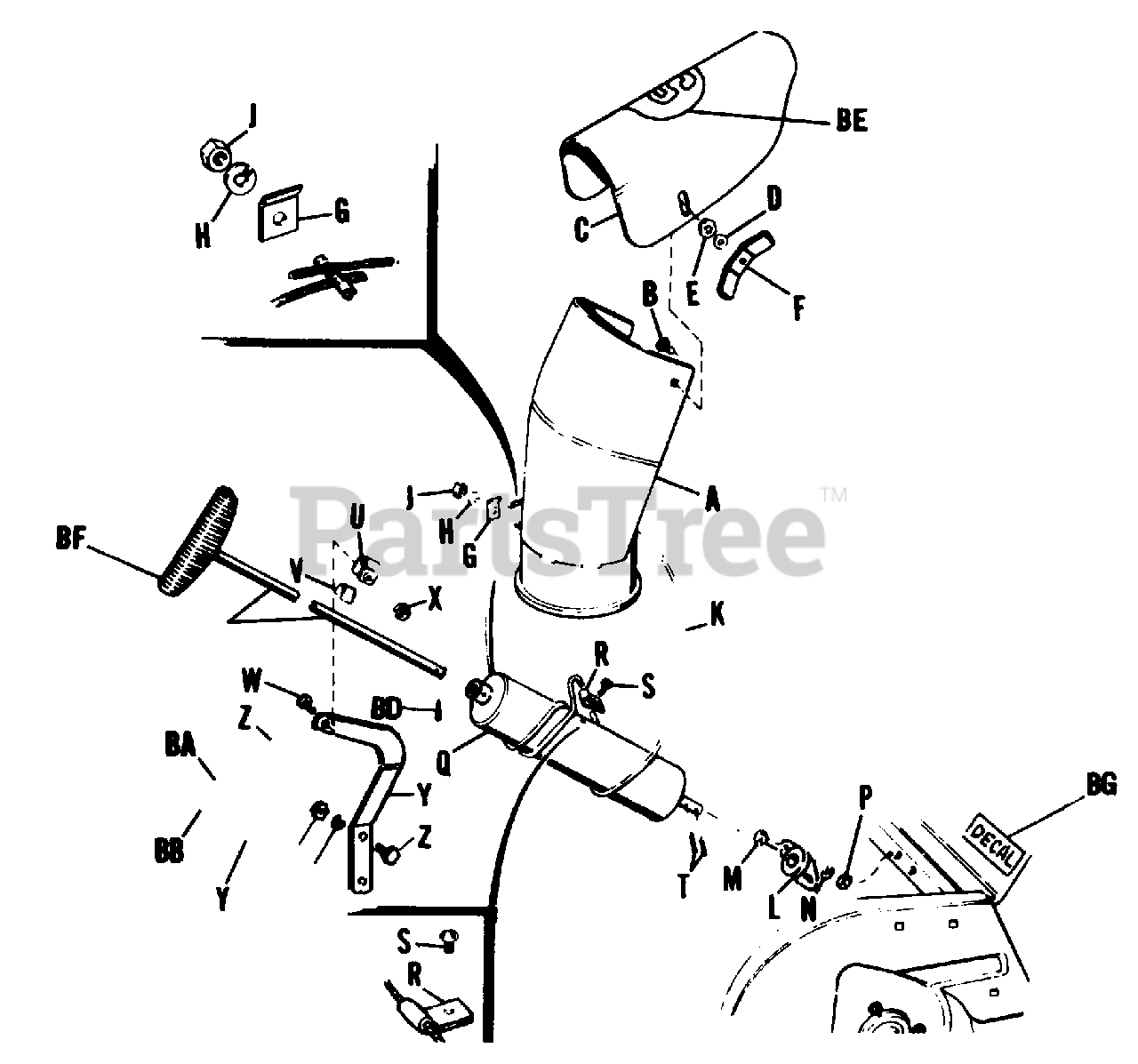

990419 - Simplicity 32" Rotary Snow Thrower Attachment SPOUT GROUP Parts Diagram

32" Rotary Snow Thrower Attachment

SPOUT GROUP Parts Diagram

  • Title

A

Simplicity 106338

Spout Assembly

$

$

Not available

B

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

C

Simplicity 1064-89

Spout Extension

$

$

Not available

D

Simplicity 2719001

Washer, Plain 3/8"

$

$

Not available

E

Simplicity 2721601

Washer, Lock 3/8"

$

$

Not available

F

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

G

Simplicity 121042

Plate

$

$

Not available

H

Simplicity 2720001

Washer, Lock 5/16"

$

$

Not available

J

Simplicity 2717001

Nut, Hex Full 5/16"-18

$

$

Not available

K

Simplicity 106490

Spout Cord

$

$

Not available

L

Simplicity 2106491SM

Bearing

$11.99

$

Usually ships in 2-12 days

0

M

Simplicity 2705015

Capscrew, Hex, 1/4"-20 x 5/8"

$

$

Not available

N

Simplicity 2720003

Washer, Lock 1/4"

$

$

Not available

P

Simplicity 2717005

Nut, Hex, Full 1/4"-20

$

$

Not available

Q

Simplicity 106603

Tube Assembly Spout Control

$

$

Not available

R

Simplicity 154247

Clamp

$

$

Not available

S

Simplicity 2714016

Self-Tapping Screw, 1/4"-20 x 3/8"

$

$

Not available

T

Simplicity 2722016

Cotter Pin 1/8" x 3/4"

$

$

Not available

U

Simplicity 2152050SM

Guide, Rod

$10.99

$

Usually ships in 2-12 days

0

V

Simplicity 2121175SM

Liner, Guide

$8.49

$

Usually ships in 2-12 days

0

W

Simplicity 2705018

Capscrew Hex 5/16"-18 x 1/2"

$

$

Not available

X

Simplicity 2717511

Nut, Hex, Full Lock, 5/16-1

$

$

Not available

Y

Simplicity 106499

Rod Guide Support

$

$

Not available

Z

Simplicity 2705005

Hex. Capscrew 3/8-16x 1 lg.

$

$

Not available

BA

Simplicity 2720002

Lock Washer, 3/8

$

$

Not available

BB

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

BC

Simplicity 106606

Handle Assembly

$

$

Not available

BD

Simplicity 722015

Cotter Pin 5/32 x 1" lg.

$

$

Not available

BE

Simplicity 106512

Decal

$

$

Not available

BF

Simplicity 106516

Cover Handle

$

$

Not available

BG

Simplicity 103031

Decal

$

$

Not available
