990428 - Simplicity Sno-Away 23" Snow Thrower, 6hp, Rubber Tire ROTOR GROUP-23" Snow-Away Parts Diagram

Sno-Away 23" Snow Thrower, 6hp, Rubber Tire

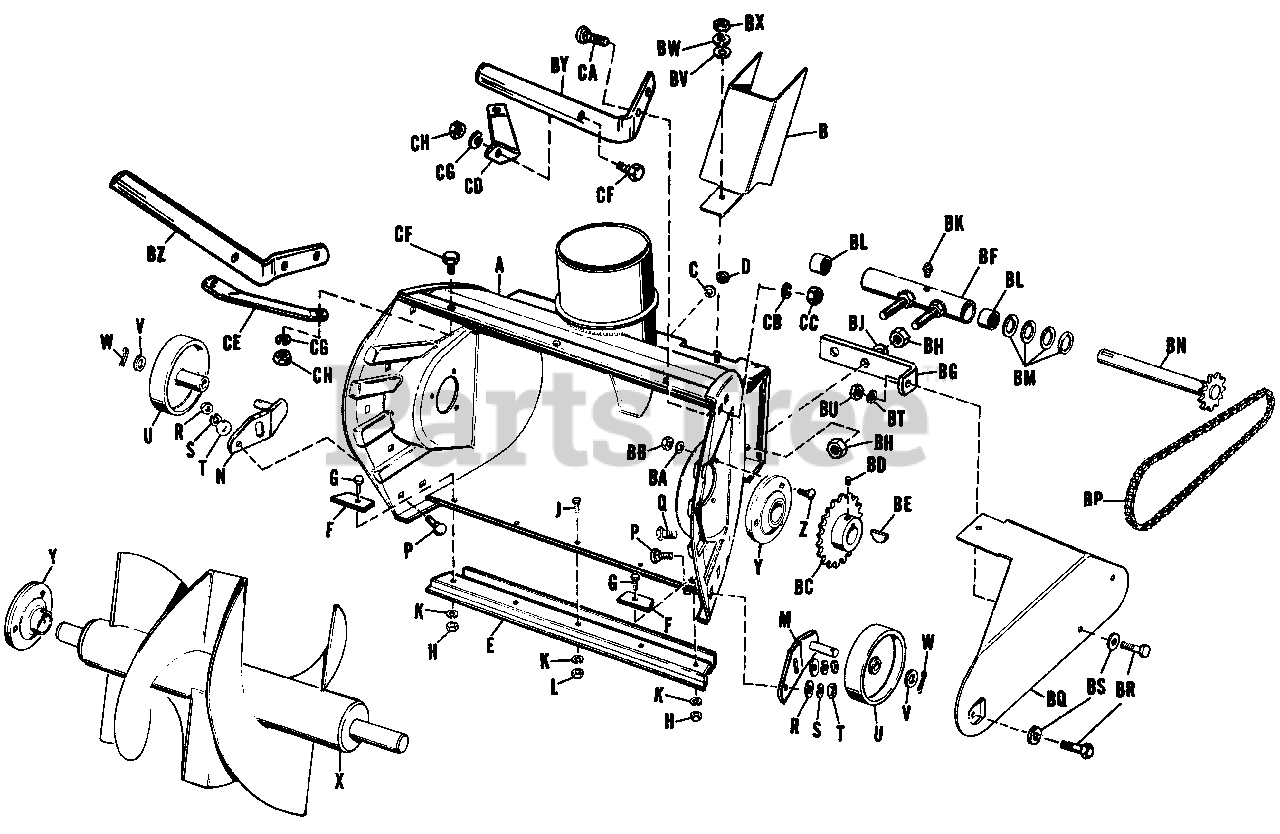

ROTOR GROUP-23" Snow-Away Parts Diagram

  • Title

A

Simplicity 106530

Body Assembly

$

$

Not available

B

Simplicity 106528

Belt Cover

$

$

Not available

C

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

D

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

E

Simplicity 106428

Scraper Body

$

$

Not available

F

Simplicity 106137

Clamp, Scraper

$

$

Not available

G

Simplicity 2715073

Hex. Capscrew, 5/16"-18 x 7/8" lg.

$

$

Not available

H

Simplicity 2717511

Hex Nut, Full, Lock, 5/16"-18

$

$

Not available

J

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8" lg.

$

$

Not available

K

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

L

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

M

Simplicity 106209

Roller Bracket Assembly, LH

$

$

Not available

N

Simplicity 106211

Roller Bracket Assembly, RH

$

$

Not available

P

Simplicity 2703004

Carriage Bolt

$

$

Not available

Q

Simplicity 2705031

Hex Capscrew, 3/8"-16 x 7/8" lg.

$

$

Not available

R

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

S

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

T

Simplicity 2717003

Hex Nut, Pull, 3/8"-16

$

$

Not available

U

Simplicity 106396

Roller Assembly

$

$

Not available

V

Simplicity 2121210SM

Washer

$

$

Not available

W

Simplicity 2722010

Cotter Pin, 1/8" x 1-1/4" long

$

$

Not available

X

Simplicity 106333

Rotor Assembly

$

$

Not available

Y

Simplicity 2106532SM

Ball Bearing

$96.99

$

Usually ships in 2-12 days

0

Z

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available

BA

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BB

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

BC

Simplicity 106052

Rotor Sprocket

$

$

Not available

BD

Simplicity 2713503

Set Screw, Cup Pt., 5/16"-18 x 5/16"

$

$

Not available

BE

Simplicity 2151040SM

Key

$9.99

$

In Stock, only 2 left!

0

BF

Simplicity 106197

Housing Assembly, Bearing

$

$

Not available

BG

Simplicity 106213

Chain Guard Bracket

$

$

Not available

BH

Simplicity 2717006

Hex Nut, Full, 1/2"-13

$

$

Not available

BJ

Simplicity 2719004

Washer, Plain, 1/2"

$

$

Not available

BK

Simplicity 2727002

Fitting, Grease

$

$

Not available

BL

Simplicity 2154258SM

Needle Bearing

$27.99

$

In Stock, Qty 5

0

BM

Simplicity 1729259SM

Washer

$6.49

$

In Stock, Qty 10

0

BN

Simplicity 106195

Shaft Assembly

$

$

Not available

BP

Simplicity 106058

Rotor Chain

$

$

Not available

BQ

Simplicity 106543

Chain Guard

$

$

Not available

BR

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

BS

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

BT

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BU

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

BV

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

BW

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BX

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available
