990443 - Simplicity Vacuum Collector TRAILER FRAME & COVER Parts Diagram

Vacuum Collector

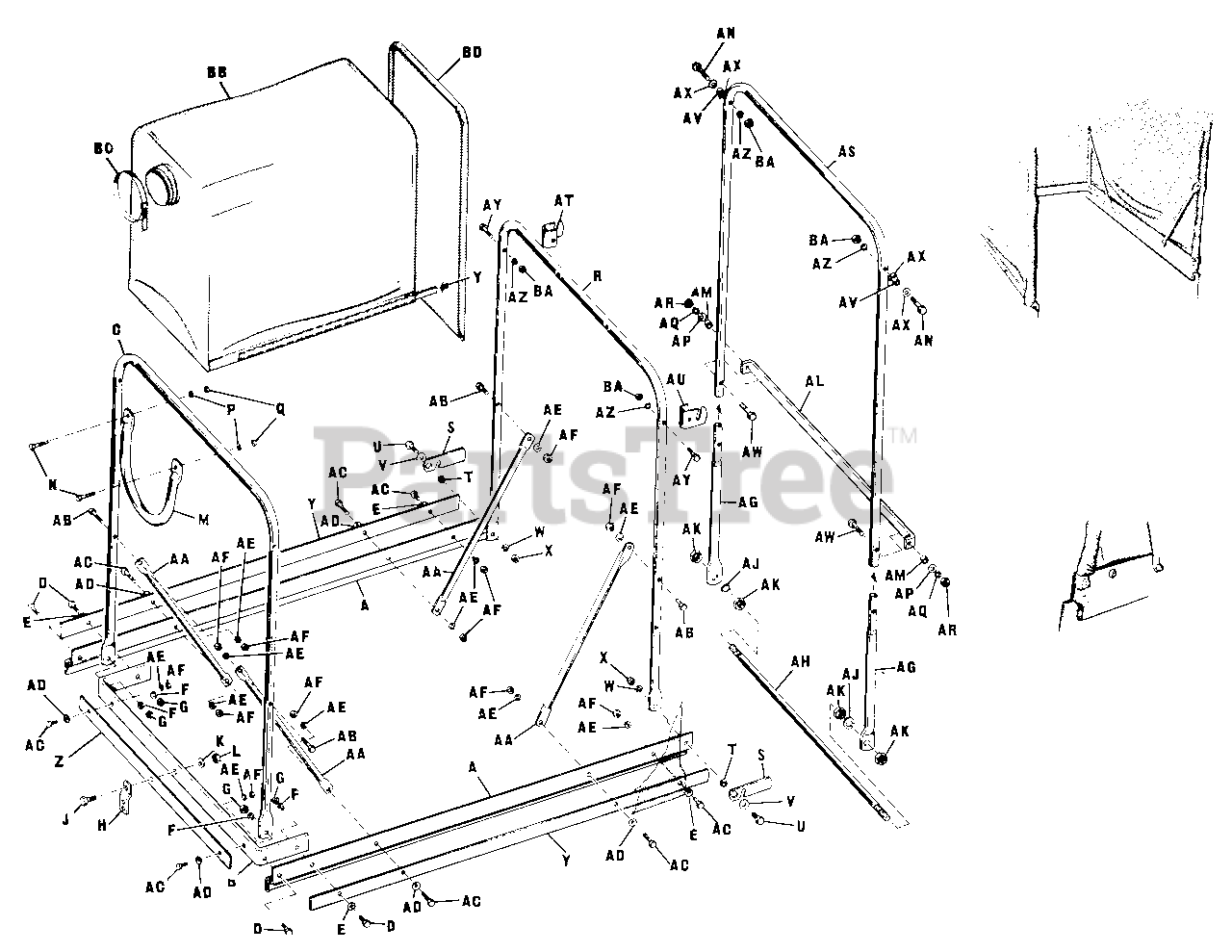

TRAILER FRAME & COVER Parts Diagram

  • Title
A

Simplicity 123036

"Z" Bar, Side

$

$

Not available

B

Simplicity 123037

Front Bar

$

$

Not available

C

Simplicity 123038

Front and Rear Upright

$

$

Not available

D

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

E

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

F

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

G

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

H

$

$

Not available

J

Simplicity 2705005

Hex Capscrew, 3/8" x 16 x 1" lg.

$

$

Not available

K

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

L

Simplicity 2717510

Hex Lock Nut, Full, 3/8"-16

$

$

Not available

M

Simplicity 123039

Hose Support

$

$

Not available

N

Simplicity 2705008

Hex Capscrew, 1/4"-20 x 1-1/4 lg.

$

$

Not available

P

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

Q

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

R

Simplicity 123038

Front and Rear Upright

$

$

Not available

S

Simplicity 123040

Rear Door Latch

$

$

Not available

$11.99

$

Usually ships in 2-12 days

0

U

Simplicity 2705001

Hex Capscrew, 5/16"-18 x 7/8" lg.

$

$

Not available

V

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

W

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

X

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

Y

Simplicity 123052

Hold Down Strip, Side

$

$

Not available

Z

Simplicity 123053

Hold Down Strip, Front

$

$

Not available

AA

Simplicity 123041

Cross Brace Tube

$

$

Not available

AB

Simplicity 2705008

Hex Capscrew, 1/4"-20 x 1-1/4" lg.

$

$

Not available

AC

Simplicity 2705030

Hex Capscrew, 1/4"-20 x 3/4" lg.

$

$

Not available

AD

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

AE

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AF

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

AG

Simplicity 123042

Tube, Rear Door

$

$

Not available

AH

Simplicity 123043

Rod, Rear Door

$

$

Not available

AJ

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

AK

Simplicity 2717006

Hex Nut, Full, 1/2"-13

$

$

Not available

AL

Simplicity 123044

Bar, Rear Door

$

$

Not available

AM

$

$

Not available

AN

Simplicity 2705025

Hex Capscrew, 1/4"-20 x 1-3/4" lg.

$

$

Not available

AP

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

AQ

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AR

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

AS

Simplicity 123046

Top Rear Door

$

$

Not available

AT

Simplicity 123047

Catch, Door, R.H.

$

$

Not available

AU

Simplicity 123048

Catch, Door, L.H.

$

$

Not available

AV

$

$

Not available

AW

Simplicity 2705053

Hex Capscrew, 1/4"-20 x 1-3/4" lg.

$

$

Not available

AX

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

AY

Simplicity 2705008

Hex Capscrew, 1/4"-20 x l-1/4" lg.

$

$

Not available

AZ

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

BA

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

BB

$

$

Not available

BC

Simplicity 123050

Hose Strap

$

$

Not available

BD

$122.99

$

Usually ships in 2-12 days

0
