990450 - Simplicity Leaf Mulcher Baffle Group (3648I01) Parts Diagram

Leaf Mulcher

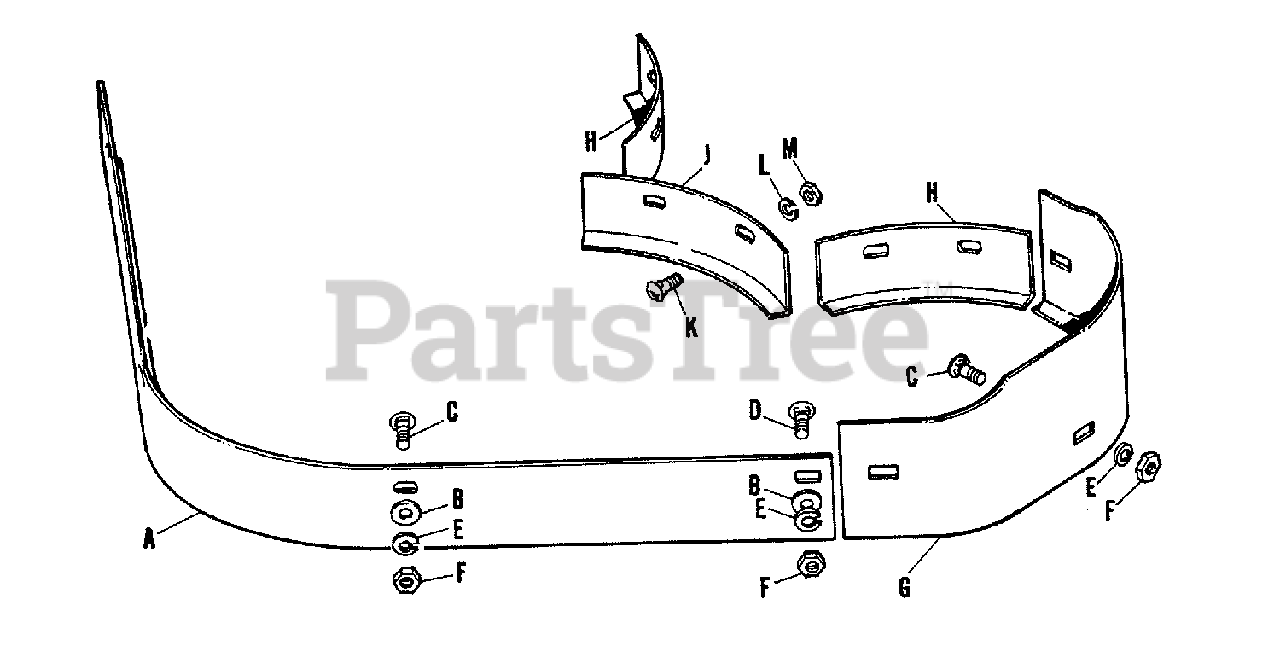

Baffle Group (3648I01) Parts Diagram

  • Title

A

Simplicity 108544

FRONT BAFFLE, Mulcher

$

$

Not available

B

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

C

Simplicity 2703004

CARRIAGE BOLT, 3/8"-16 x 3/4"

$

$

Not available

D

Simplicity 2702003

CARRIAGE BOLT, 3/8"-16 x 3/4"

$

$

Not available

E

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

F

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

G

Simplicity 108543

END PLATE, Housing

$

$

Not available

H

Simplicity 108545

BAFFLE, Mulcher, Rear Side

$

$

Not available

J

Simplicity 108546

BAFFLE, Mulcher, Rear Center

$

$

Not available

K

Simplicity 2703005

CARRIAGE BOLT, 5/16"-18 x 3/4"

$

$

Not available

L

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

M

Simplicity 2717001

NUT, Hex, Full, 5/16"-18

$

$

Not available
