990454 - Simplicity Light Kit Light Group (3658I01) Parts Diagram

Light Kit

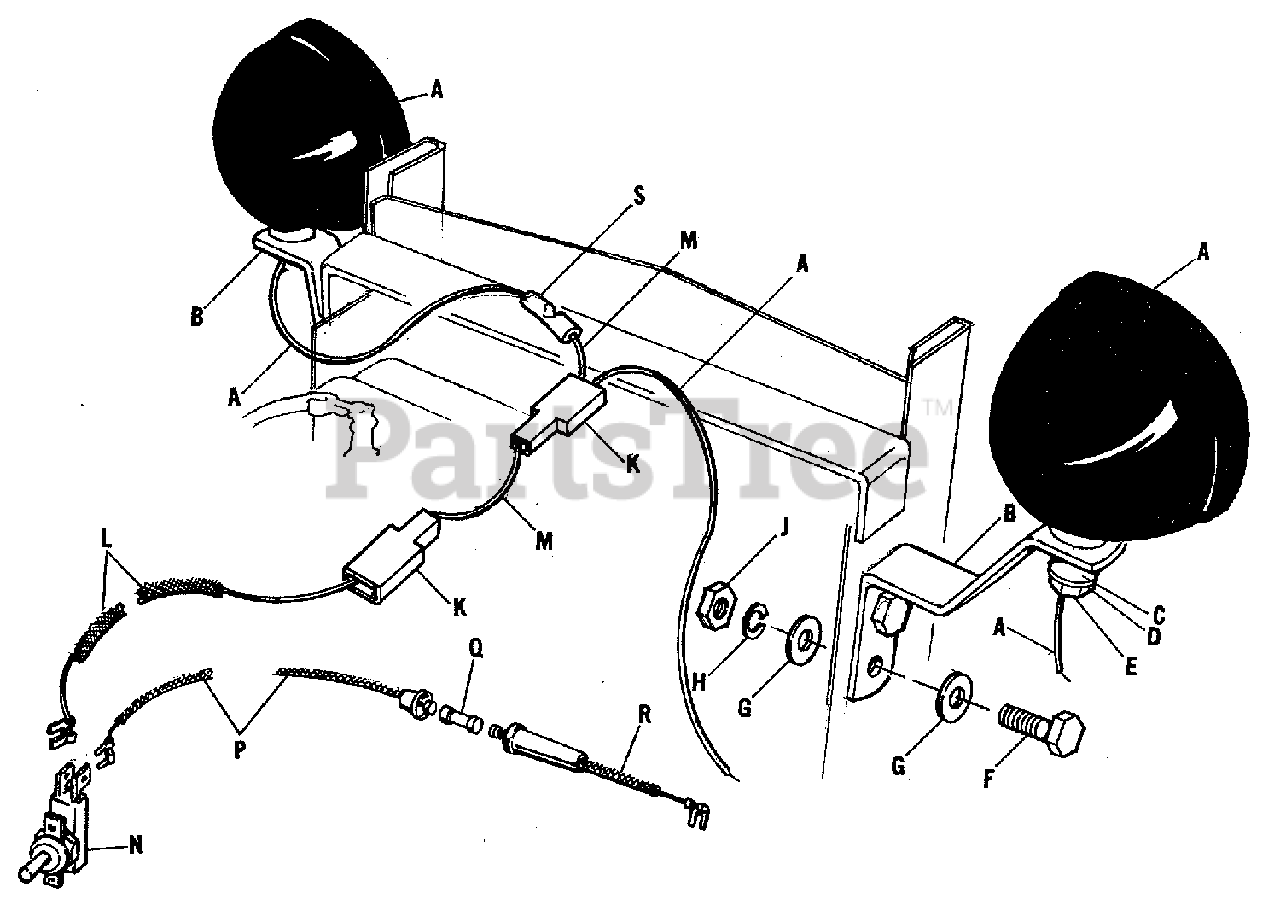

Light Group (3658I01) Parts Diagram

  • Title

A

Simplicity 122175

LAMP ASSEMBLY

$

$

Not available

B

Simplicity 122194

BRACKET

$1.99

$

Usually ships in 2-12 days

0

C

Simplicity 122053

SPACER

$

$

Not available

D

Simplicity 2720004

WASHER, Lock, 1/2"

$

$

Not available

E

Simplicity 2717006

NUT, Hex, Full, 1/2"-13

$

$

Not available

F

Simplicity 2705018

CAPSCREW, Hex, 5/16"-18 x 1-1/2"

$

$

Not available

G

Simplicity 2719002

WASHER, Plain, 5/16"

$

$

Not available

H

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

J

Simplicity 2717001

NUT, Hex, Full, 5/16"-18

$

$

Not available

K

Simplicity 122182

CONNECTOR, Insulated

$

$

Not available

L

Simplicity 122176

WIRE (Switch To Connector)

$

$

Not available

M

Simplicity 122185

WIRE, Extension

$

$

Not available

N

Simplicity 2122184SM

SWITCH, Toggle

$22.99

$

Usually ships in 2-12 days

0

P

Simplicity 122178

WIRE (Fuse To Switch)

$

$

Not available

Q

Simplicity 122172

FUSE, 20 Amp.

$

$

Not available

R

Simplicity 122177

WIRE (Fuse To Voltage Regulator

$

$

Not available

S

Simplicity 122157

CONNECTOR

$

$

Not available
