990458 - Simplicity Adaptor Kit for 42 Mower Deck Adapter Kit Group (3655I01) Parts Diagram

Adaptor Kit for 42 Mower Deck

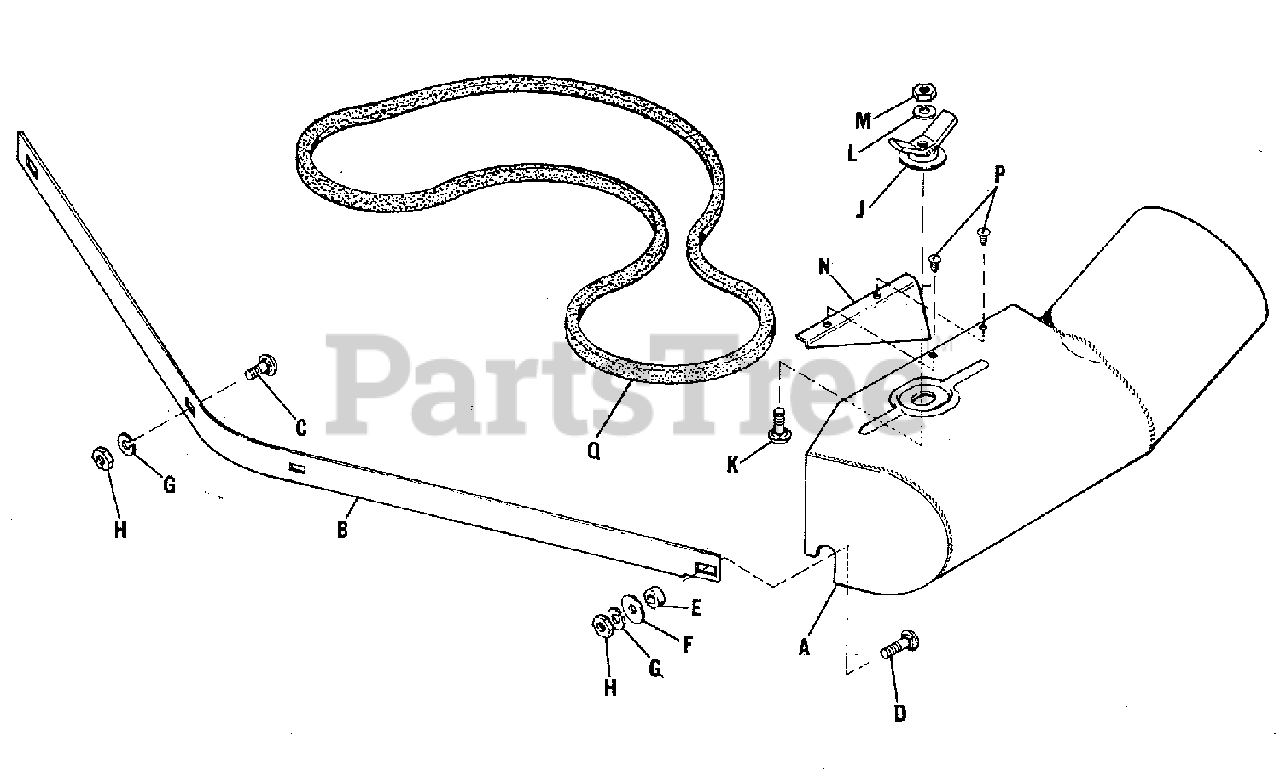

Adapter Kit Group (3655I01) Parts Diagram

  • Title

A

Simplicity 123054

HOUSING ASSEMBLY, Collector Side

$

$

Not available

B

Simplicity 123059

BALFFE, Front

$

$

Not available

C

Simplicity 2703003

BOLT, Carriage, 3/8"-16 x 1" Lg.

$

$

Not available

D

Simplicity 2703002

BOLT, Carriage, 3/8"-16 X 1-1/4" Lg.

$

$

Not available

E

Simplicity 2153081

SPACER

$

$

Not available

F

Simplicity 157169

WASHER

$

$

Not available

G

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

H

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

J

Simplicity 2123060

NUT ASSEMBLY

$

$

Not available

K

Simplicity 2703003

CARRIAGE BOLT, 3/8"-16 x 1" Lg.

$

$

Not available

L

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

M

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

N

Simplicity 123062

BAFFLE, Mower

$

$

Not available

P

Simplicity 714005

SCREW, Self Tapping, #10-24 x 1/2" Lg.

$

$

Not available

Q

Simplicity 2105115

BELT, "V"

$

$

Not available
