990459 - Simplicity Leaf Mulcher Leaf Mulcher Group (1633I01) Parts Diagram

Leaf Mulcher

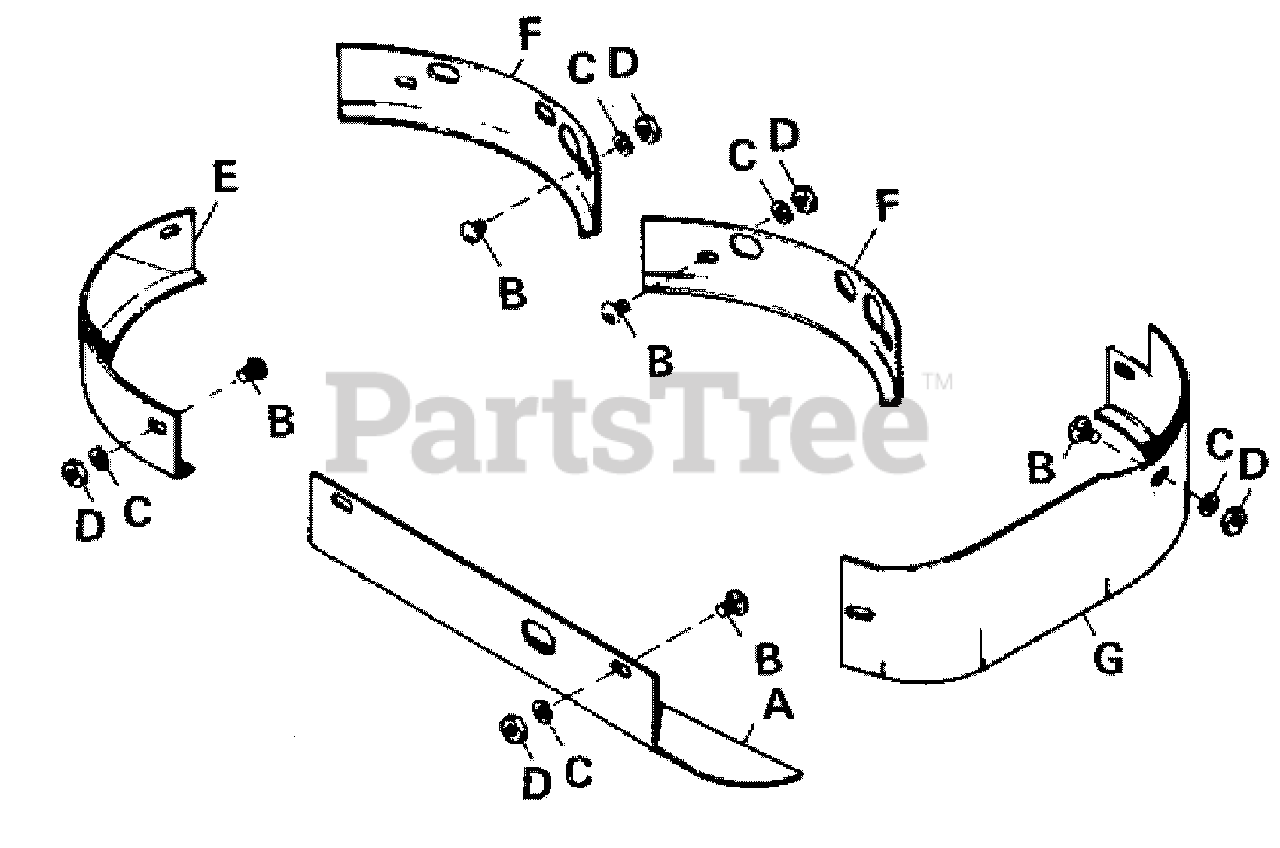

Leaf Mulcher Group (1633I01) Parts Diagram

  • Title

A

Simplicity 108539

CENTER FRONT MULCHER BAFFLE

$

$

Not available

B

Simplicity 703011

BOLT, Carriage, 5/16-18 x 1/2"

$7.99

$

Usually ships in 2-12 days

0

C

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

D

Simplicity 2717001

NUT, Hex, Full, 5/16-18"

$

$

Not available

E

Simplicity 108541

FRONT RIGHT HAND MULCHER BAFFLE

$

$

Not available

F

Simplicity 108540

CENTER REAR MULCHER BAFFLE

$

$

Not available

G

Simplicity 108542

LEFT HAND MULCHER BAFFLE

$

$

Not available
