990477 - Simplicity 32" Rotary Snow Thrower Attachment HITCH GROUP Parts Diagram

32" Rotary Snow Thrower Attachment

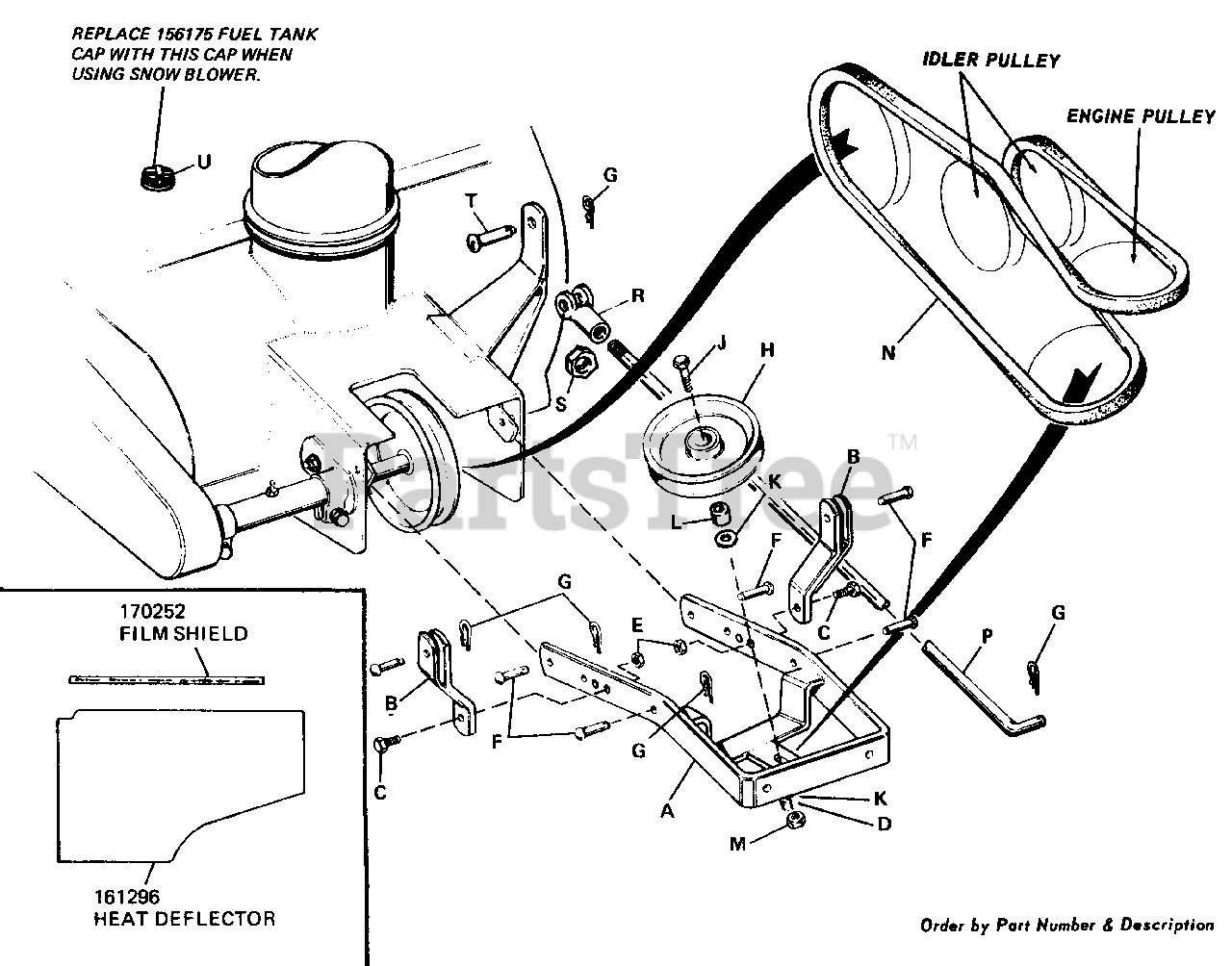

HITCH GROUP Parts Diagram

  • Title

A

Simplicity 106500

Push Arm Assembly

$

$

Not available

B

Simplicity 106889

Support Arm Assembly

$

$

Not available

C

Simplicity 2705005

Hex. Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

D

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

E

Simplicity 2717510

Hex. Nut, Full Lock, 3/8"-16

$

$

Not available

F

Simplicity 2156306SM

Pin

$7.99

$

In Stock, only 4 left!

0

G

Simplicity 2106788

Spring Clip

$

$

Not available

H

Simplicity 2101096SM

Pulley

$62.99

$

In Stock, only 2 left!

0

J

Simplicity 2705010

Hex. Capscrew, 3/8"-16 x 1-3/4" lg.

$

$

Not available

K

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

L

Simplicity 2154177SM

Spacer

$41.99

$

In Stock, only 3 left!

0

M

Simplicity 2717003

Hex. Nut, Full, 3/8"-16

$

$

Not available

N

Simplicity 2108209

"V" Belt

$

$

Not available

P

Simplicity 106812

Front Lift Rod

$

$

Not available

R

Simplicity 2157631

Adjusting Yoke

$

$

Not available

S

Simplicity 717008

Hex. Nut, Full, 1/2"-20

$

$

Not available

T

Simplicity 2154305

Yoke Pin

$

$

Not available

U

Simplicity 106798

Cap (Winter) Fuel Tank

$

$

Not available

U

Simplicity 161252

Emblem

Note: Not Illustrated

$

$

Not available

U

Simplicity 2161247

Decal, Safety

Note: Not Illustrated

$

$

Not available

U

Simplicity 103100

Serial Number Plate

Note: Not Illustrated

$

$

Not available
