990477 - Simplicity 32" Rotary Snow Thrower Attachment SPOUT GROUP Parts Diagram

32" Rotary Snow Thrower Attachment

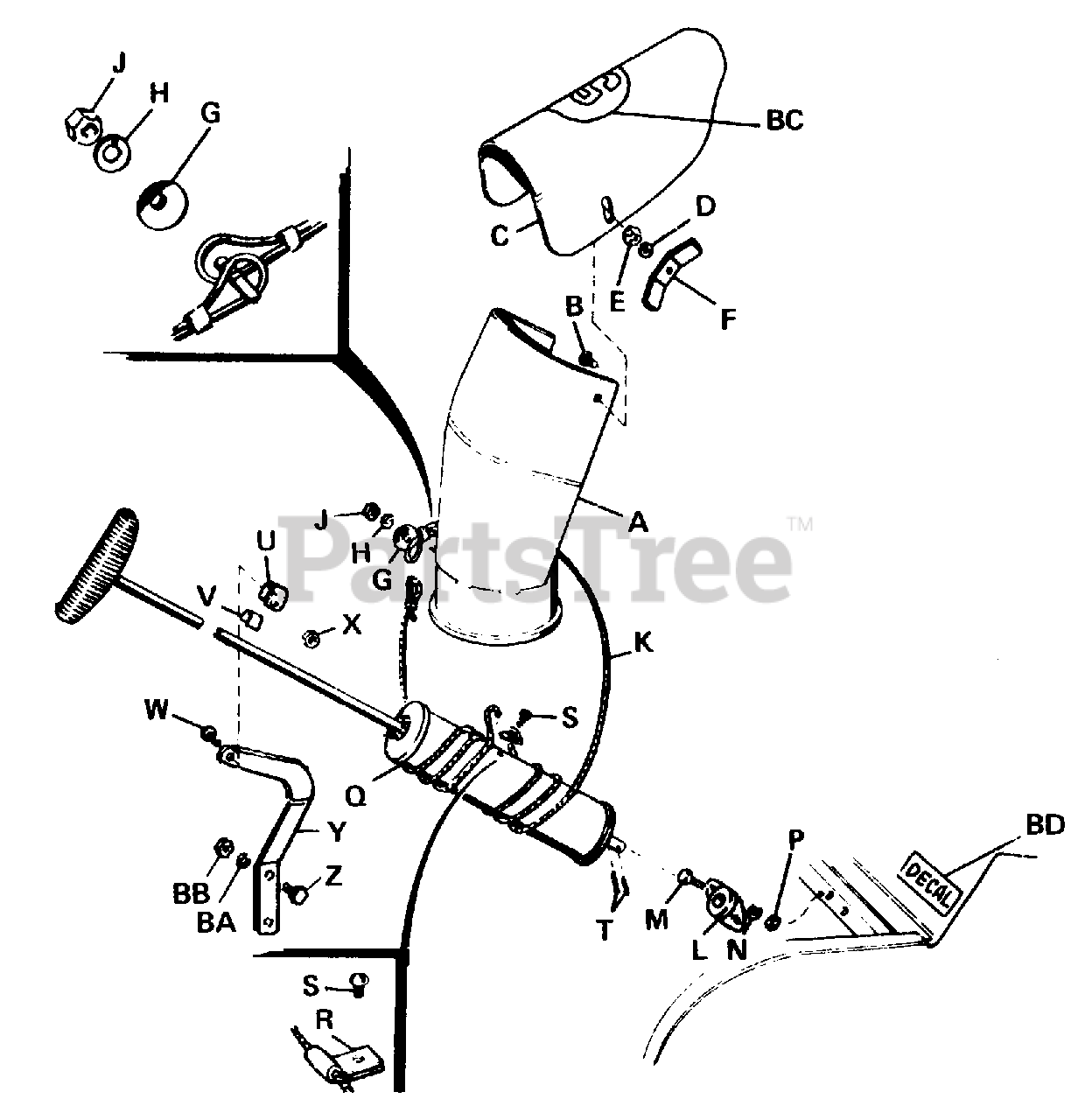

SPOUT GROUP Parts Diagram

  • Title

A

Simplicity 106762

Spout Assembly

$

$

Not available

B

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

C

Simplicity 106760

Spout Extension

$

$

Not available

D

Simplicity 2719001

Washer, Plain 3/8"

$

$

Not available

E

Simplicity 2721601

Washer, Lock 3/8"

$

$

Not available

F

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

G

Simplicity 2106785

Cup Washer

$

$

Not available

H

Simplicity 2720001

Washer, Lock 5/16"

$

$

Not available

J

Simplicity 2717001

Nut, Hex. Full, 5/16"-18

$

$

Not available

K

Simplicity 161133

Cable Assembly

$

$

Not available

L

Simplicity 2106491SM

Bearing

$11.99

$

Usually ships in 2-12 days

0

M

Simplicity 2705015

Capscrew, Hex., 1/4"-20 x 5/8"

$

$

Not available

N

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

P

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

Q

Simplicity 170131

Tube Assembly, Spout Control

$

$

Not available

S

Simplicity 2715067

Self-Tapping Screw, 1/4"-20 x 3/8"

$

$

Not available

T

Simplicity 2722016

Cotter Pin, 1/8" x 3/4"

$

$

Not available

U

Simplicity 2152050SM

Guide, Rod

$10.99

$

Usually ships in 2-12 days

0

V

Simplicity 2121175SM

Liner, Guide

$8.49

$

Usually ships in 2-12 days

0

W

Simplicity 2705018

Capscrew, Hex., 5/16"-18 x 1/2"

$

$

Not available

X

Simplicity 2717511

Nut, Hex., Full, Lock, 5/16"-1

$

$

Not available

Y

Simplicity 106499

Rod Guide Support

$

$

Not available

Z

Simplicity 2705005

Hex. Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

BA

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BB

Simplicity 2717003

Hex. Nut, Full, 3/8"-16

$

$

Not available

BC

Simplicity 103031

Decal

$

$

Not available

BD

Simplicity 106512

Decal

$

$

Not available
