990509 - Simplicity 11" Rotary Trailing Mower Carrier ROTARY TRAILING MOWERS Parts Diagram

11" Rotary Trailing Mower Carrier

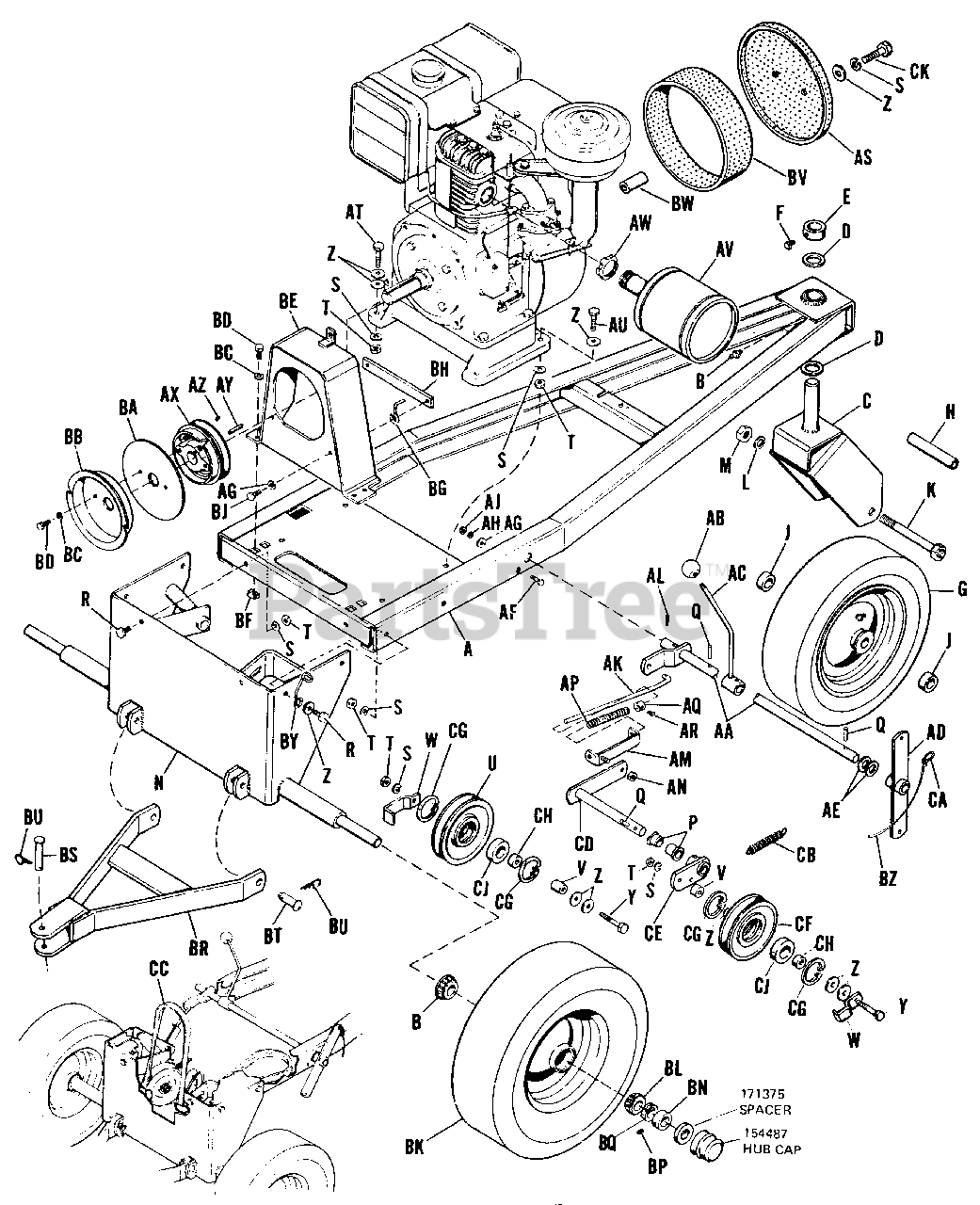

ROTARY TRAILING MOWERS Parts Diagram

  • Title

A

Simplicity 108554

Frame Assembly

$

$

Not available

B

Simplicity 2727002

Crease Fitting

$

$

Not available

C

Simplicity 108561

Caster Assembly

$

$

Not available

D

Simplicity 2159168

Washer

$

$

Not available

E

Simplicity 8021028

Set Collar

$

$

Not available

F

Simplicity 2713006

Set Screw 5/16-18 x 1/2" lg.

$

$

Not available

G

Simplicity 156179

Wheel & Tire Assembly

$

$

Not available

H

Simplicity 108566

Spacer Tube

$

$

Not available

J

Simplicity 2157483

Spacer

$

$

Not available

K

Simplicity 108566

Rear Axle Shaft

$

$

Not available

L

Simplicity 2720004

Lock Washer 1/2"

$

$

Not available

M

Simplicity 2717006

Hex Nut Full 1/2-13

$

$

Not available

N

Simplicity 108569

Front Plate Assembly

$

$

Not available

P

Simplicity 2108419

Clutch Bushing

$

$

Not available

Q

Simplicity 2723003

Roll Pin

$

$

Not available

R

Simplicity 2705004

Hex Capscrew 3/8-16 x 3/4" lg.

$

$

Not available

S

Simplicity 2720002

Lock 3/8" Washer 3/8"

$

$

Not available

T

Simplicity 2717003

Hex Nut Full 3/8-16

$

$

Not available

U

Simplicity 170920

Idle Pulley

$

$

Not available

V

Simplicity 2157081SM

Spacer

$8.99

$

In Stock, Qty 13

0

W

Simplicity 170289

Belt Guide

$

$

Not available

Y

Simplicity 2705006

Hex Capscrew 3/8-16 x 2" lg.

$

$

Not available

Z

Simplicity 2719001

Plain Washer 3/8"

$

$

Not available

AA

Simplicity 108585

Lever Sub Assembly

$

$

Not available

AB

Simplicity 1729255SM

Ball

$12.99

$

In Stock, only 1 left!

0

AC

Simplicity 108588

Handle Sub Assembly

$

$

Not available

AD

Simplicity 108590

Lever Sub Assembly

$

$

Not available

AE

Simplicity 2156089

Washer

$

$

Not available

AF

Simplicity 2705030

Hex Capscrew 1/4-20 x 3/4" lg.

$

$

Not available

AG

Simplicity 7190()6

Plain Washer 1/4"

$

$

Currently unavailable

AH

Simplicity 2720003

Lock Washer 1/4"

$

$

Not available

AJ

Simplicity 2717005

Hex x Nut 1/4-16

$

$

Not available

AK

Simplicity 108592

Clutch Rod

$

$

Not available

AL

Simplicity 2722001

Cotter Pin

$

$

Not available

AM

Simplicity 2108662SM

Rod Guide Assembly

$

$

Not available

AN

Simplicity 2717511

Hex Nut Full Lock 5/16-18"

$

$

Not available

AP

Simplicity 1729277SM

Spring

$6.99

$

Usually ships in 2-12 days

0

AQ

Simplicity 1729276SM

Set Collar

$

$

Not available

AR

Simplicity 2713001

Set Screw 1/4-20 x 3/8" lg.

$

$

Not available

AS

Simplicity 170486

Cover Screen

$

$

Not available

AT

Simplicity 2705009

Hex Capscrew 3/8-16-1-1/2" lg.

$

$

Not available

AU

Simplicity 2705016

Hex Capscrew 3/8-16-1-1/4" lg.

$

$

Not available

AV

Simplicity 2157634SM

Muffler

$

$

Not available

AW

Simplicity 2154378SM

Lock Nut

$6.99

$

Usually ships in 2-12 days

0

AX

Simplicity 1083594

Engine Pulley

$

$

Not available

AY

Simplicity 8371016

Key

$

$

Not available

AZ

Simplicity 2713501

Set Screw 5/16-18 x 1/9" lg.

$

$

Not available

BA

Simplicity 108595

Washer

$

$

Not available

BB

Simplicity 108623

Rope Starter Pulley

$

$

Not available

BC

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

BD

Simplicity 2705017

Hex Capscrew 5/16-18 x 3/4" lg.

$

$

Not available

BE

Simplicity 108596

Guard Assembly

$

$

Not available

BF

Simplicity 2718024

Retainer Nut

$

$

Not available

BG

Simplicity 108599

Belt Stop

$

$

Not available

BH

Simplicity 108600

Belt Stop Clamp

$

$

Not available

BJ

Simplicity 2705012

Hex Capscrew 5/16-18 x 5/8" lg.

$

$

Not available

BK

Simplicity 171376

Wheel & Tire Assembly (Front)

$

$

Not available

BL

Simplicity 2154486SM

BEARING CUP

$36.99

$

In Stock, Qty 15

0

BN

Simplicity 1729254SM

Set Collar
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

BP

Simplicity 2713503

Set Screw 5/16-18 x 5/16" lg.

$

$

Not available

BQ

Simplicity 2170168SM

SEAL

$38.99

$

Usually ships in 2-12 days

0

BR

Simplicity 108601

Tie Bar Assembly

$

$

Not available

BS

Simplicity 1729275SM

Pin

$18.99

$

Usually ships in 2-12 days

0

BT

Simplicity 2155037SM

Pin

$12.99

$

In Stock, only 1 left!

0

BU

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

BV

Simplicity 170485

Engine Pulley Screen

$

$

Not available

BW

Simplicity 170487

Spacer

$

$

Not available

BY

Simplicity 108642

Rope Guide

$

$

Not available

BZ

Simplicity 106025

Rope

$

$

Not available

CA

Simplicity 108643

Repair Link

$

$

Not available

CB

Simplicity 8111047

Spring

$

$

Not available

CC

Simplicity 2108505

"V" Belt
(Superseded to 1727773SM)

$34.99

$

In Stock, Qty 7

0

CD

Simplicity 108575

Clutch Lever Sub Assembly

$

$

Not available

CE

Simplicity 108578

Lever Sub Assembly

$

$

Not available

CF

Simplicity 2170293

Idler Pulley (Fixed)

$

$

Not available

CG

Simplicity 170290

Retaining Ring

$

$

Not available

CH

Simplicity 2170291

Spacer

$

$

Not available

CJ

Simplicity 170292

Bearing

$

$

Not available

CK

Simplicity 2705003

Hex Capscrew, 3/8"-16 x 2"

$

$

Not available
