990510 - Simplicity Attaching Kit, Front End Loader, 12hp 12 H.P. FRAME GROUP Parts Diagram

Attaching Kit, Front End Loader, 12hp

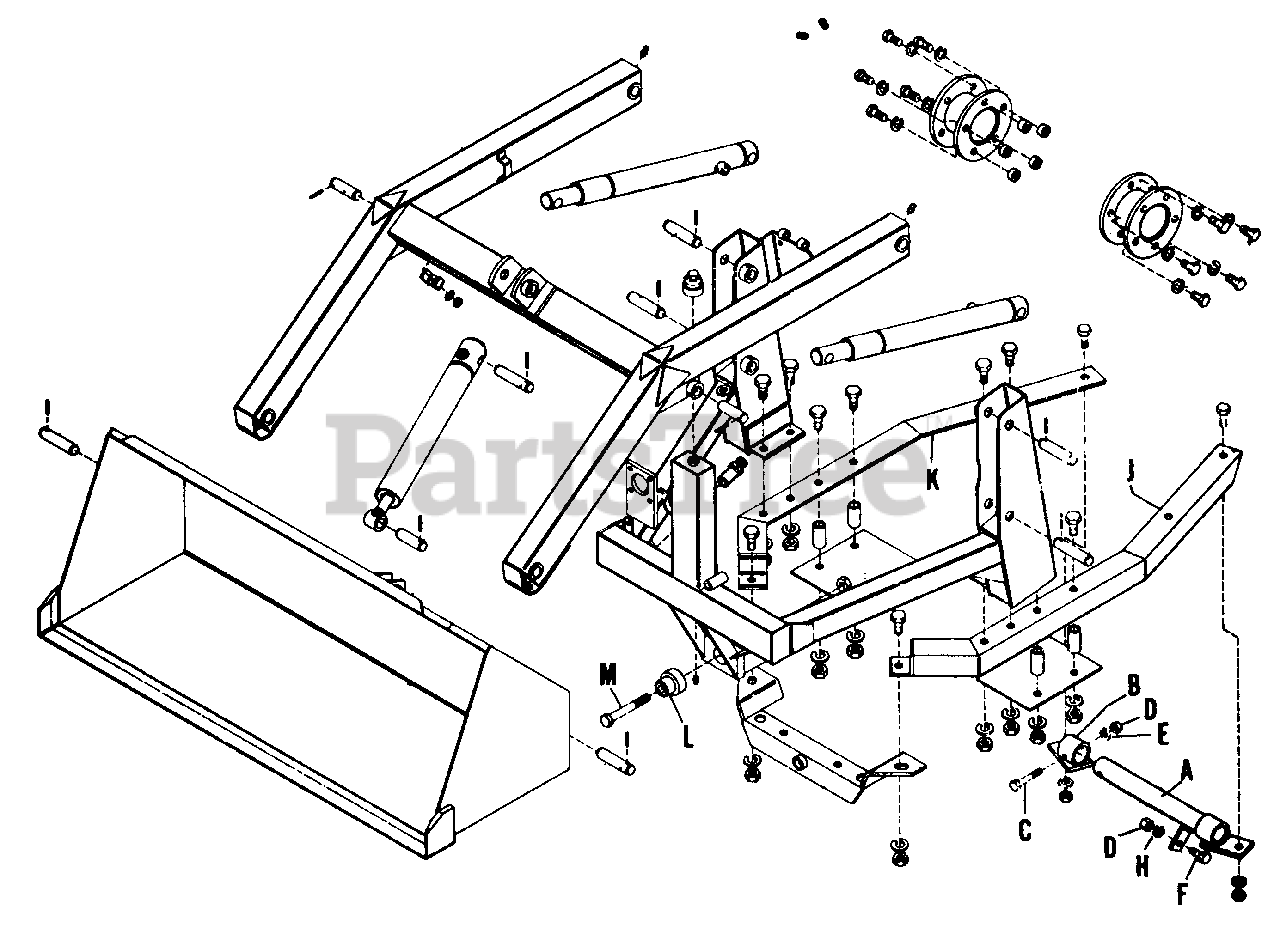

12 H.P. FRAME GROUP Parts Diagram

  • Title

A

Simplicity 125106

Cross Mount Henry #2019805

$

$

Not available

B

Simplicity 125107

Right Mount Henry #2019803

$

$

Not available

C

Simplicity 2705014

Screw-Cap-Hex. 3/8"-16 N.C. x 2-1/2" lg. Henry #919363
(Superseded to 703873)

$4.49

$

Usually ships in 2-12 days

0

D

Simplicity 2717003

Nut-Hex.-Full 3/8"-16 N.C. Henry #916950

$

$

Not available

E

Simplicity 2720002

Lockwasher 3/8" Henry #916965

$

$

Not available

F

Simplicity 2705041

Screw-Cap-Hex. 7/16"-14 N.C. x 1" lg. Henry #918212

$

$

Not available

G

Simplicity 2717022

Nut-Hex.-Full 7/16"-14 N.C. Henry #918213

$

$

Not available

H

Simplicity 2720006

Lockwasher 7/16" Henry #918199

$

$

Not available

J

Simplicity 125108

Sub-Frame-Right Henry #2019806

$

$

Not available

K

Simplicity 125109

Sub-Frame-Left Henry #2019807

$

$

Not available

L

Simplicity 125110

Front Mount Henry #2019804

$

$

Not available

M

Simplicity 706021

Screw-Cap-Hex. 1/2"-20 N.F. x 5" lg. Henry #916428

$4995.99

$

Usually ships in 2-12 days

0

N

Simplicity 1950G8

"V"-Belt Henry #2019808

$

$

Not available

P

Simplicity 125112

Spring Henry #2019405

$

$

Not available
