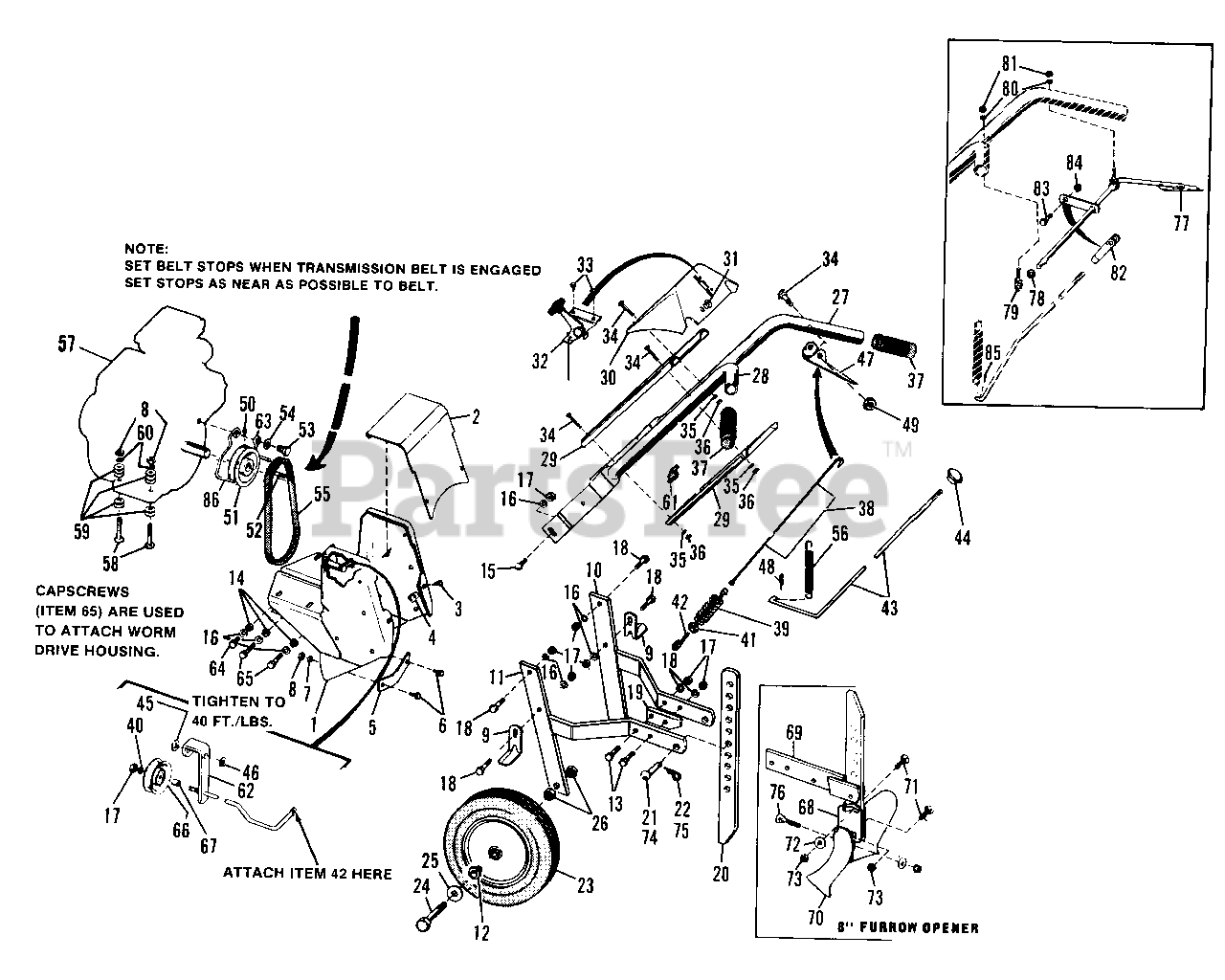

990511 - Simplicity Roticul Supermatic Tiller, 4hp Frame Handles & Controls Parts Diagram

Roticul Supermatic Tiller, 4hp

Frame Handles & Controls Parts Diagram

  • Title

1

Simplicity 118343

BODY ASSY

$

$

Not available

2

Simplicity 118241

BODY COVER

$

$

Not available

3

Simplicity 2828694

SCREW, Thumb

$

$

Not available

4

Simplicity 2826018

NUT, Speed

$

$

Not available

5

Simplicity 118208

SUPPORT, Shaft

$

$

Not available

6

Simplicity 2819318

CAPSCREW, Hex, 5/16-18 x 5/8

$

$

Not available

7

Simplicity 2823300

LOCKWASHER, 5/16

$

$

Not available

8

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 118220

SCRAPER

$

$

Not available

10

Simplicity 118229

SUPPORT ASSY, R.H.

$

$

Not available

11

Simplicity 118232

SUPPORT ASSY, L.H.

$

$

Not available

12

Simplicity 2118132SM

BUSHING, Wheel

$

$

Not available

13

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

14

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

15

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

17

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

18

Simplicity 2817400

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

19

Simplicity 118207

PLATE, Stop

$

$

Not available

20

Simplicity 118081

BAR, Depth

$

$

Not available

21

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

22

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

23

Simplicity 118030

WHEEL & TIRE ASSY

$

$

Not available

24

Simplicity 2808529

CAPSCREW, Hex, 1/2-13 x 3-1/4

$

$

Not available

25

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

26

Simplicity 2813744

NUT, Hex, Jam, 1/2-13

$

$

Not available

27

Simplicity 118344

HANDLE, L.H.

$

$

Not available

27

Simplicity 118246

HANDLE, R.H.

Note: Used on Mfg. No. 990330 Only.

$

$

Not available

28

Simplicity 118345

HANDLE, L.H.

$

$

Not available

28

Simplicity 118247

HANDLE, L.H.

Note: Used on Mfg. No. 990330 Only.

$

$

Not available

29

Simplicity 118236

COVER, Handle

$

$

Not available

30

Simplicity 118237

HOUSING ASSY, Control

$

$

Not available

31

Simplicity 2118273SM

BUSHING

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 118235

THROTTLE ASSY, control

$

$

Not available

33

Simplicity 2823188

SCREW, Self-Tapping, Hex, 1/4-20 x 1/2

$

$

Not available

34

Simplicity 2818240

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

35

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

36

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

37

Simplicity 2106558

GRIP

$

$

Not available

38

Simplicity 118328

SPRING, Extension

$

$

Not available

38

Simplicity 118257

ROD, Clutch

Note: Used on Mfg. No. 990330 Only.

$

$

Not available

39

Simplicity 118290

SPRING

Note: Used On Mfg. No. 990360 & 990411 only.

$

$

Not available

40

Simplicity 1916965SM

LOCK WASHER, 3/8
(Superseded to 703454)

Note: Used On Mfg. No. 990360 & 990411 only.

$3.49

$

In Stock, Qty 11

0

41

Simplicity 2816621

NUT, Hex, Full, #10-24

Note: Used On Mfg. No. 990360 & 990411 only.

$

$

Not available

42

Simplicity 118311

EYEBOLT

Note: Used On Mfg. No. 990360 & 990411 only.

$

$

Not available

43

Simplicity 118342

ROD, Reverse

$

$

Not available

43

Simplicity 118256

ROD, Reverse

Note: Used on Mfg. No. 990330 Only.

$

$

Not available

44

Simplicity 118258

KNOB

$

$

Not available

45

Simplicity 2153072

WASHER

Note: Used On Mfg. No. 990360 & 990411 only.

$

$

Not available

46

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

Note: Used On Mfg. No. 990360 & 990411 only.

$4.49

$

In Stock, Qty 20+

0

47

Simplicity 1180-56

GRIP, Clutch

Note: Used On Mfg. No. 990360 & 990411 only.

$

$

Not available

48

Simplicity 2818448

PIN, Cotter

Note: Used On Mfg. No. 990360 & 990411 only.

$

$

Not available

49

Simplicity 2823358

NUT, Hex, Full, 1/4-20

Note: Used On Mfg. No. 990360 & 990411 only.

$

$

Not available

50

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

51

Simplicity 118331

PULLEY

$

$

Not available

51

Simplicity 170005

PULLEY

Note: Used On Mfg. No. 990330 Only.

$

$

Not available

52

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, Qty 5

0

53

Simplicity 2824086

CAPSCREW, Hex, 1/2-20 x 3/4

$

$

Not available

53

Simplicity 2821370

CAP SCREW, Hex, 1/2-20 x 1

Note: Used On Mfg. No. 990330 Only.

$

$

Not available

54

Simplicity 2809589

LOCK WASHER Int. 1/2

$

$

Not available

55

Simplicity 2118225SM

BELT, V

$22.99

$

In Stock, only 2 left!

0

56

Simplicity 2159106SM

SPRING
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

57

ENGINE

$

$

Not available

58

Simplicity 2819354

CAP SCREW Hex, 5/16-18 x 2

$

$

Not available

59

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

60

Simplicity 1917356SM

LOCK WASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

61

Simplicity 2106786

CLIP, Cable

Note: Used On Mfg. No. 990360 & 990411 only.

$

$

Not available

62

Simplicity 118341

LEVER ASSY, Idler

Note: Used On Mfg. No. 990360 & 990411 only.

$

$

Not available

63

Simplicity 118259

STOP, Belt

$

$

Not available

64

Simplicity 2808127

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

65

Simplicity 2822605

CAPS CREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

66

Simplicity 2154534SM

PULLEY

Note: Used On Mfg. No. 990360 & 990411 only.

$32.99

$

In Stock, only 2 left!

0

67

Snapper 2118335SM

SPACER

Note: Used On Mfg. No. 990360 & 990411 only.

$8.49

$

Usually ships in 2-12 days

0

68

Simplicity 8271503

HOLDER, Tool

$

$

Not available

69

Simplicity 118287

SUPPORT ASSY, Extension

$

$

Not available

70

Simplicity 103010

FURROW OPENER, 8"

$

$

Not available

71

Simplicity 2822109

BOLT, Carriage, 3/8-16 x 1-1/4

$

$

Not available

72

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

73

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

74

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

75

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

76

Simplicity 922112

BOLT

$

$

Not available

77

Simplicity 118320

HANDLE ASSY, Control

$

$

Not available

78

Simplicity 118210

WASHER, Clutch

$

$

Not available

79

Simplicity 118209

SCREW, Special

$

$

Not available

80

Simplicity 2816964SM

LOCK WASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

81

Simplicity 916222

NUT, Hex, Full, 1/4-20

$

$

Not available

82

Simplicity 118275

CLEVIS

$

$

Not available

83

Simplicity 2816431

CAPSCREW, Hex, 5/16-18 x 1

$

$

Not available

84

Simplicity 2823362

LOCKNUT, Hex, Full, 5/16-18

$

$

Not available

85

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

86

Simplicity 118224

STOP, Belt

$

$

Not available
