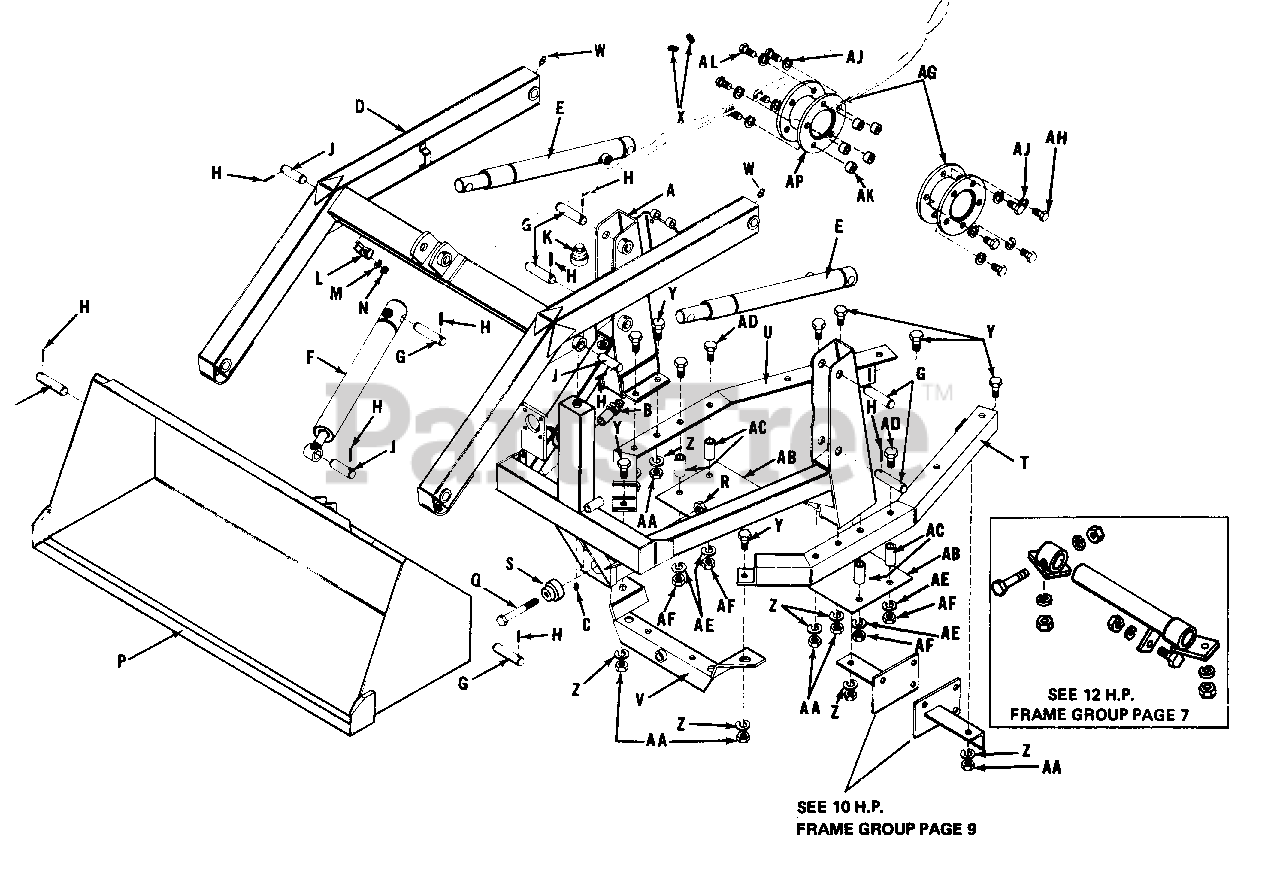

990515 - Simplicity Front End Loader Frame Group Parts Diagram

Front End Loader

Frame Group Parts Diagram

  • Title

A

Simplicity 125004

Main Frame Ass'y.

$

$

Not available

B

Simplicity 125113

Filter

$

$

Not available

C

Simplicity 2726002

Pipe Plug, 1/4" N.P.T.

$

$

Not available

D

Simplicity 125005

Lift Arm Assembly

$

$

Not available

E

Simplicity 125007

Lift Arm Cylinder

$

$

Not available

F

Simplicity 125006

Bucket Cylinder

$

$

Not available

G

Simplicity 125027

Loader Pin

$

$

Not available

H

Simplicity 723015

Roll Pin, 3/16" x 1-1/4"

$

$

Not available

J

Simplicity 125028

Lift Arm Pin

$

$

Not available

K

Simplicity 125069

Breather

$

$

Not available

L

Simplicity 125020

Hose Clamp

$

$

Not available

M

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

N

Simplicity 2717005

Hex. Full Nut, 1/4"-20 N.C.

$

$

Not available

P

Simplicity 125002

Bucket, 42"

$

$

Not available

Q

Simplicity 706021

Hex. Capscrew, 1/2"-20 N.F. x 4-1/4"

$4995.99

$

Usually ships in 2-12 days

0

R

Simplicity 2717516

Full Hex. Lock Nut, 1/2"-20 N.F.

$

$

Not available

S

Simplicity 125110

Front Mount

$

$

Not available

T

Simplicity 125115

Left Sub-Frame

$

$

Not available

U

Simplicity 125114

Right Sub-Frame

$

$

Not available

V

Simplicity 125071

Front Mount Bracket

$

$

Not available

W

Simplicity 2727012

Grease Fitting

$

$

Not available

X

Simplicity 713508

Cup Pt. Setscrew, 7/16"-20 N.F. x 1/2"

$

$

Not available

Y

Simplicity 2705049

Hex. Capscrew, 1/2"-13 N.C. x 1-1/4"

$

$

Not available

Z

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

AA

Simplicity 2717006

Full Hex. Nut, 1/2"-13 N.C.

$

$

Not available

AB

Simplicity 125074

Floor Board

$

$

Not available

AC

Simplicity 125070

Spacer

$

$

Not available

AD

Simplicity 705050

Hex. Capscrew, 1/2-13 N.C. x 2-3/4"

$7.99

$

In Stock, only 1 left!

0

AE

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

AF

Simplicity 2717006

Full Hex. Nut, 1/2"-13 N.C.

$

$

Not available

AG

Simplicity 157415

Dual Wheel Adapter Ass'y.

$

$

Not available

AH

Simplicity 706004

Hex. Capscrew, 7/16"-20 N.F. x 1"

$128.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

AK

Simplicity 105133

Spacer

$

$

Not available

AL

Simplicity 2706003

Hex. Capscrew, 7/16"-20 N.F. x 1-1/2"

$

$

Not available
