990517 - Simplicity Light Kit LIGHT KIT Parts Diagram

Light Kit

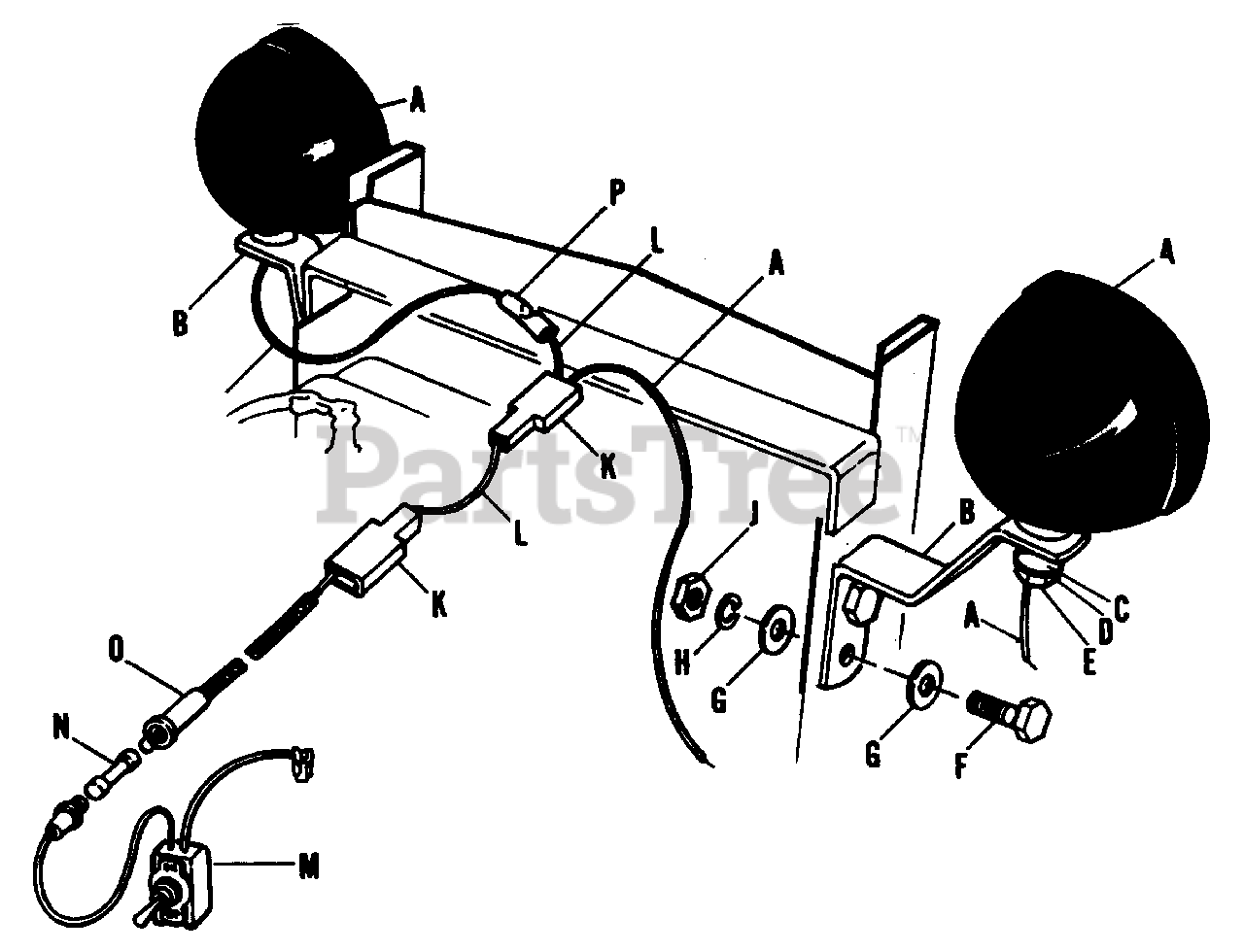

LIGHT KIT Parts Diagram

  • Title

A

Simplicity 122175

Lamp Assembly

$

$

Not available

B

Simplicity 122194

Bracket

$1.99

$

Usually ships in 2-12 days

0

C

Simplicity 122053

Spacer

$

$

Not available

D

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

E

Simplicity 2717006

Full Hex. Nut, 1/2"-13

$

$

Not available

F

Simplicity 2705018

Hex. Capscrew,5/16"-18 x 1-1/2"

$

$

Not available

G

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

K

Simplicity 122182

Insulated Connector

$

$

Not available

L

Simplicity 122185

Extension Wire

$

$

Not available

M

Simplicity 122211

Toggle Switch (with hardware)

$

$

Not available

N

Simplicity 122172

Fuse 20 Amp.

$

$

Not available

O

Simplicity 122212

Wire Connector

$

$

Not available

P

Simplicity 122157

Connector

$

$

Not available
