990530 - Simplicity Electric Starter, 12 V ELECTRIC STARTER Parts Diagram

Electric Starter, 12 V

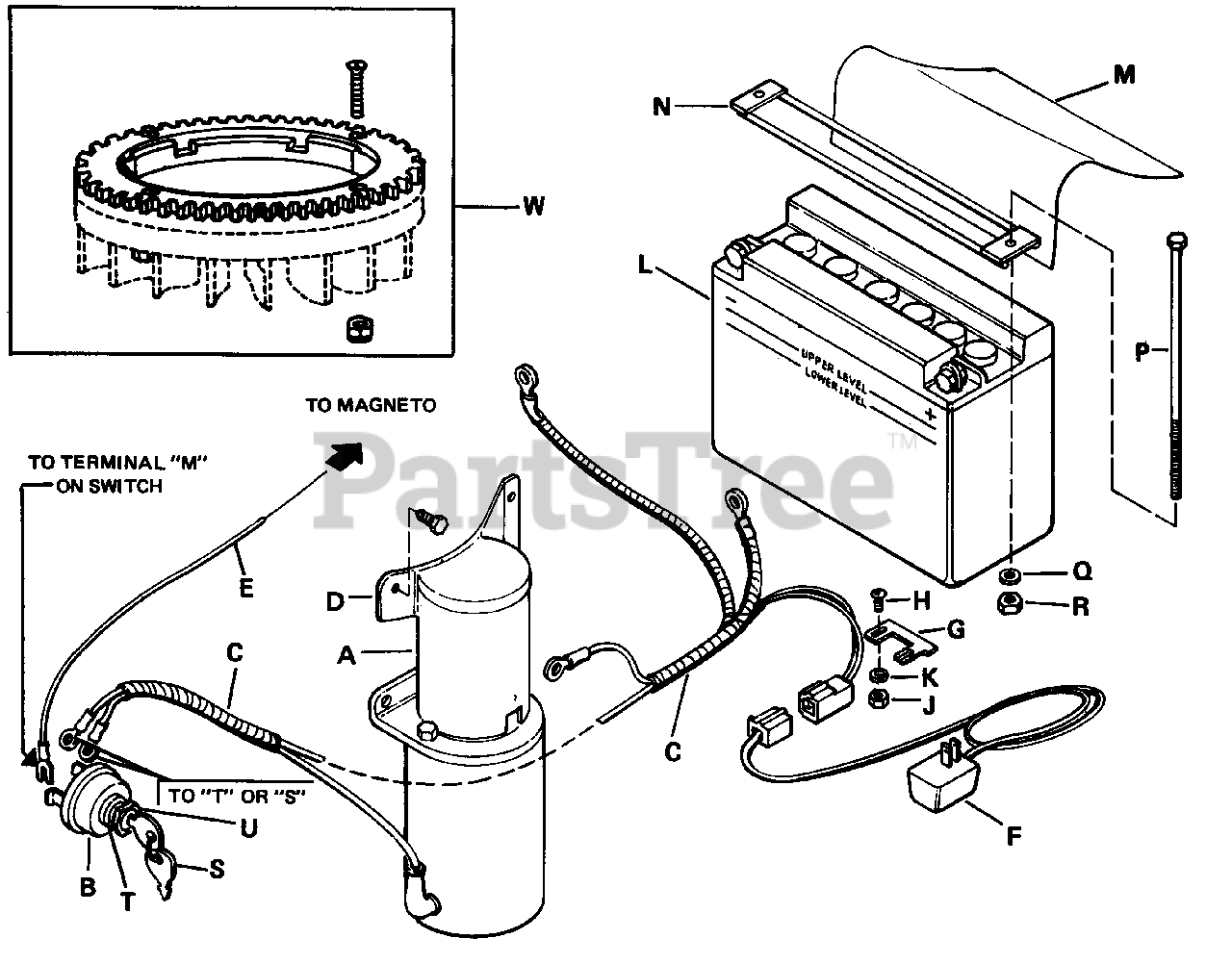

ELECTRIC STARTER Parts Diagram

  • Title

A

Simplicity 122230

Starter Kit

$

$

Not available

B

Simplicity 122218

Switch w/Keys

$

$

Not available

C

Simplicity 122219

Harness Assembly

$

$

Not available

D

Simplicity 2122023SM

Terminal Cover

$5.99

$

In Stock, only 3 left!

0

E

Simplicity 122220

Wire

$

$

Not available

F

Simplicity 122221

Charger Assembly

$

$

Not available

G

Simplicity 122225

Mounting Clip

$

$

Not available

H

Simplicity 710002

Mach. Screw No. 10-32 N.F. x 1/2"

$

$

Not available

J

Simplicity 2717007

Full Hex. Nut No. 10-32 N.F.

$

$

Not available

K

Simplicity 2721003

Lock Washer No. 10 Ext. Type

$

$

Not available

L

Simplicity 122226

Battery

$

$

Not available

M

Simplicity 122143

Battery Insulation

$

$

Not available

N

Simplicity 122227

Hold-Down Battery

$

$

Not available

P

Simplicity 705067

Bolt 1/4" x 6-1/2" Lg.

$58.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2720003

Lock Washer 1/4"

$

$

Not available

R

Simplicity 2717005

Full Hex. Nut 1/4"-20 N.C.

$

$

Not available

S

Simplicity 1717163SM

Keys

$8.99

$

In Stock, Qty 15

0

T

Simplicity 1960547SM

Lock Washer, 5/8 Int. Tooth

$4.49

$

In Stock, Qty 6

0

U

Simplicity 2122234SM

Hex Nut - Special
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

W

Simplicity 122198

Ring Gear Assembly

$

$

Not available
