990533 - Simplicity Vacuum Collector VACUUM COLLECTOR ROVING NOZZLE Mfr's. NO. 447 Parts Diagram

Vacuum Collector

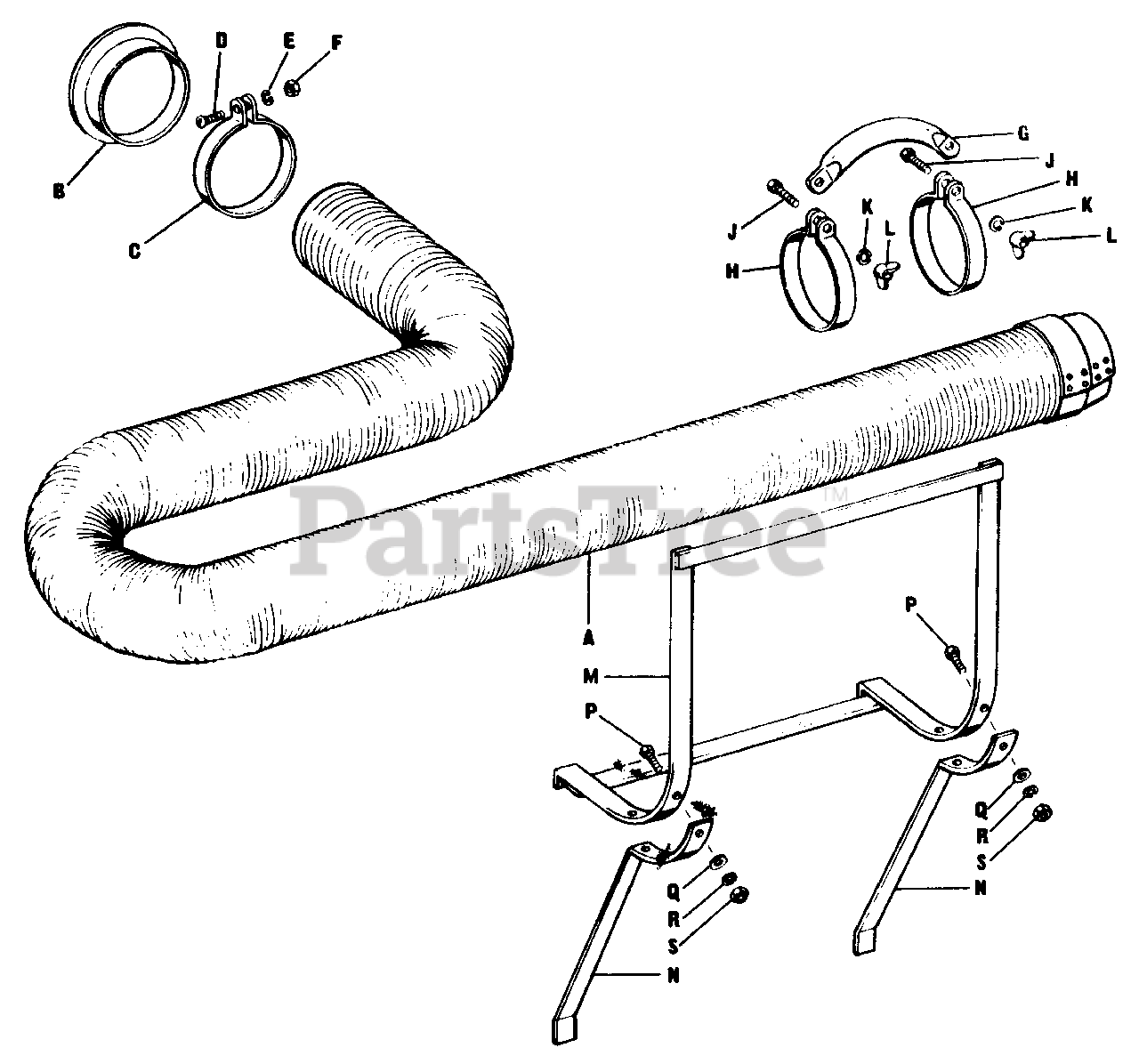

VACUUM COLLECTOR ROVING NOZZLE Mfr's. NO. 447 Parts Diagram

  • Title

A

Simplicity 123127

Hose Assembly

$

$

Not available

B

Simplicity 2123111SM

Hose Flange

$

$

Not available

C

Simplicity 123065

Hose Clamp

$

$

Not available

D

Simplicity 715069

Rnd. Slot. Hd. Machine Screw, 1/4"-20 x 3"
(Superseded to 715327)

$122.99

$

Usually ships in 2-12 days

0

E

Simplicity 2720003

Lock Washer 1/4"

$

$

Not available

F

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

G

Simplicity 123129

Hose Handle

$

$

Not available

H

Simplicity 123128

Hose Clamp Handle

$

$

Not available

J

Simplicity 2705017

Hex. Cap Screw, 5/16"-18 x 3/4"

$

$

Not available

K

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

L

Simplicity 718006

Wing Nut, 5/16"-18

$

$

Not available

M

Simplicity 123122

Hose Carrier Assembly

$

$

Not available

N

Simplicity 123125

Carrier Support

$

$

Not available

P

Simplicity 2705001

Hex. Cap Screw, 5/16"-18 x 7/8"

$

$

Not available

Q

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

R

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

S

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available
