990545 - Simplicity 36" Heavy Duty Tiller Attachment TILLER DRIVE GROUP Parts Diagram

36" Heavy Duty Tiller Attachment

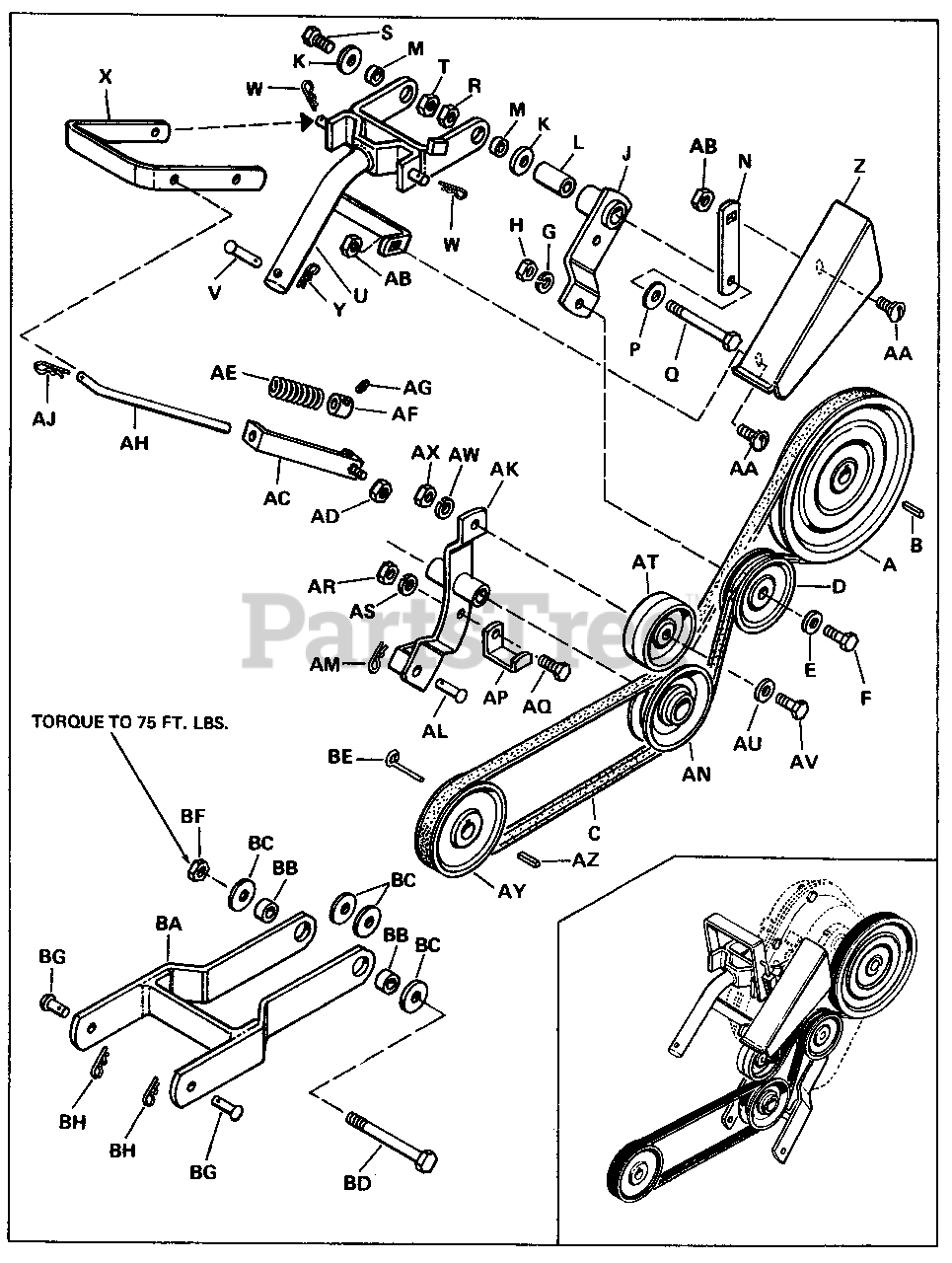

TILLER DRIVE GROUP Parts Diagram

  • Title

A

Simplicity 2105302SM

Pulley

$142.99

$

Usually ships in 2-12 days

0

B

Simplicity 2157427SM

Key

$5.49

$

In Stock, only 1 left!

0

C

Simplicity 2105340SM

"V" Belt, Sovereign Tractor

$54.99

$

In Stock, only 1 left!

0

D

Simplicity 106306

Pulley

$

$

Not available

E

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

F

Simplicity 2705016

Hex. Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

G

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

H

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

J

Simplicity 2105295ASM

Clutch Lever Assembly

$61.99

$

Usually ships in 2-12 days

0

K

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

L

Simplicity 2105339ASM

Spacer

$13.99

$

Usually ships in 2-12 days

0

M

Simplicity 2105346SM

Spacer

$28.99

$

In Stock, only 1 left!

0

N

Simplicity 2105359ASM

Rear Support Belt Guard

$5.49

$

Usually ships in 2-12 days

0

P

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

Q

Simplicity 2715093

Hex. Capsrew, Gr. 5, 7/16"-14 x 3-1/2"

$

$

Not available

R

Simplicity 2717519

Full Hex. Locknut, 7/16"

$

$

Not available

S

Simplicity 2715092

Hex. Capsrew, Gr. 5, 7/16"-14 x 1-1/4"

$

$

Not available

T

Simplicity 2717519

Full Hex. Locknut, 7/16"-14

$

$

Not available

U

Simplicity 105329

Lift Bar Assembly

$

$

Not available

V

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

W

Simplicity 2106787

Spring Clip

$

$

Not available

X

Simplicity 105303

Clutch Handle

$

$

Not available

Y

Simplicity 2106787

Spring Clip

$

$

Not available

Z

Simplicity 2105326A

Belt Guard

$

$

Not available

AA

Simplicity 2718033

Carriage Bolt, 5/16"-18 x 1/2"

$

$

Not available

AB

Simplicity 703011

Nut Whiz Lock, 5/16"-18

$7.99

$

Usually ships in 2-12 days

0

AC

Simplicity 2158406

Rod Guide Assembly

$

$

Not available

AD

Simplicity 2717511

Full Hex. Nut Lock, 5/16"-18

$

$

Not available

AE

Simplicity 1729277SM

Spring

$6.99

$

Usually ships in 2-12 days

0

AF

Simplicity 8191-022

Set Collar
(Superseded to 1729276SM)

$23.99

$

Usually ships in 2-12 days

0

AG

Simplicity 2713001

Cup pt. Sq. Hd. Setscrew, 1/4"-20 x 3/8"

$

$

Not available

AH

Simplicity 105343

Clutch Rod

$

$

Not available

AJ

Simplicity 2106787

Spring Clip

$

$

Not available

AK

Simplicity 2105322

Arm Idler Assembly

$

$

Not available

AL

Simplicity 2156306SM

Pin

$7.49

$

In Stock, Qty 20+

0

AM

Simplicity 2106787

Spring Clip

$

$

Not available

AN

Simplicity 2105380SM

Idler Pulley

$152.99

$

Usually ships in 2-12 days

0

AP

Simplicity 2105351SM

Belt Guard, 1/8 x 1 x 4-1/8"

$

$

Not available

AQ

Simplicity 2705031

Hex. Capscrew, 3/8"-16 x 7/8"

$

$

Not available

AR

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

AS

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AT

Simplicity 2164083

Idler Pulley

$

$

Not available

AU

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AV

Simplicity 2705016

Hex. Capsrew, 3/8"-16 x 1-1/4"

$

$

Not available

AW

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AX

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

AY

Simplicity 2164202SM

Pulley

$61.99

$

Usually ships in 2-12 days

0

AZ

Simplicity 2805850SM

Key

$2.49

$

Usually ships in 2-12 days

0

BA

Simplicity 2105328

Frame Assembly

$

$

Not available

BB

Simplicity 2105386SM

Spacer

$31.99

$

Usually ships in 2-12 days

0

BC

Simplicity 2719004

Plain Washer, 1/2"

$

$

Not available

BD

Simplicity 2715097

Hex. Capscrew, 1/2"-13 x 5"

$

$

Not available

BE

Simplicity 2167032SM

Belt Stop

$31.99

$

Usually ships in 2-12 days

0

BF

Simplicity 2717518

Full Hex. Locknut, 1/2"-13 N.C.

$

$

Not available

BG

Simplicity 2155037SM

Pin

$12.99

$

In Stock, only 1 left!

0

BH

Simplicity 2106788

Spring Clip

$

$

Not available
