990545 - Simplicity 36" Heavy Duty Tiller Attachment TINE EXTENTION KIT Parts Diagram

36" Heavy Duty Tiller Attachment

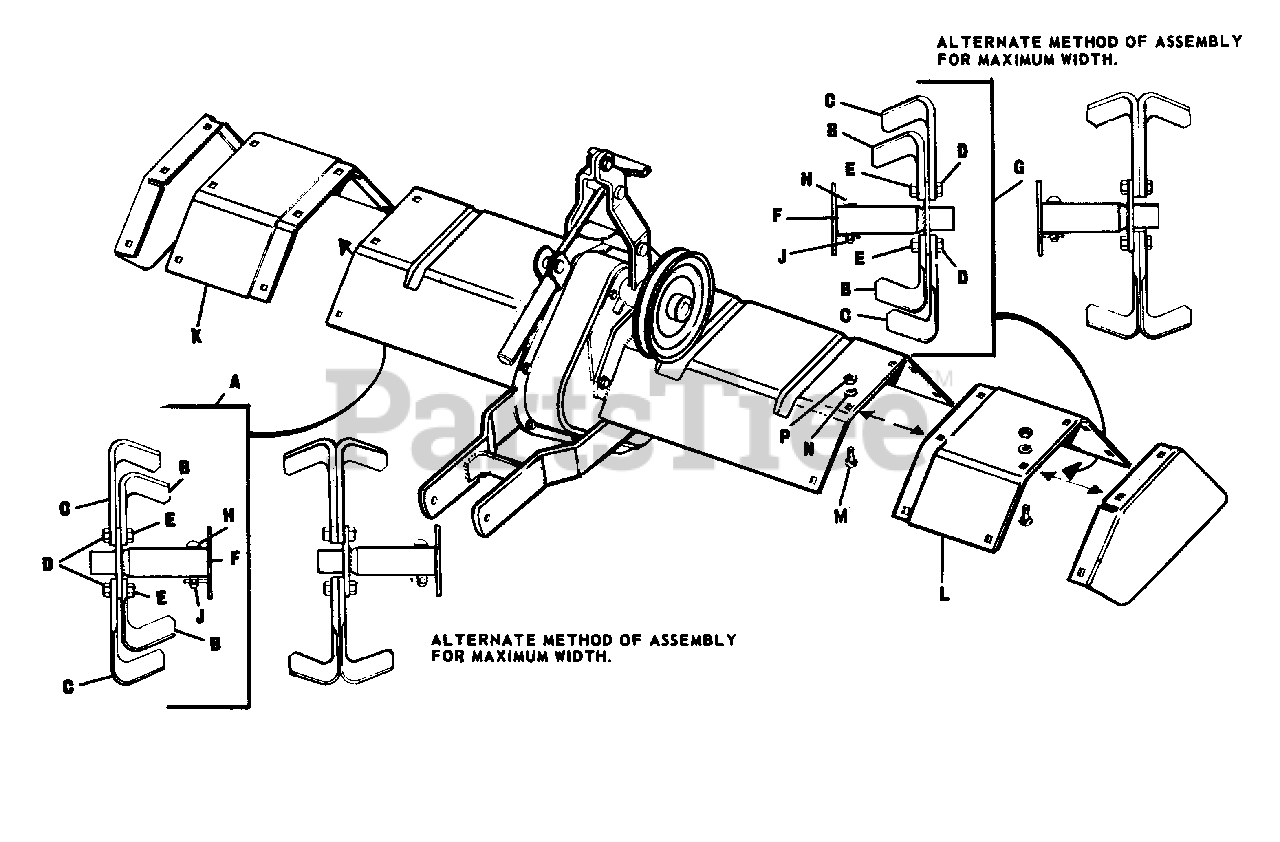

TINE EXTENTION KIT Parts Diagram

  • Title

A

Simplicity 105222

Blade Assembly, L.H.

$

$

Not available

B

Simplicity 1729271SM

Blade, L.H. Tine

$

$

Not available

C

Simplicity 1729272SM

Blade, R.H. Tine

$28.99

$

Usually ships in 2-12 days

0

D

Simplicity 706009

Hex. Cap Screw, 7/16"-20 x 1-1/4

$204.99

$

Usually ships in 2-12 days

0

E

Simplicity 2717512

Full Lock Nut, 7/16"-20

$

$

Not available

F

Simplicity 105221

Plate Assembly, Tine Extension

$

$

Not available

G

Simplicity 105223

Blade Assembly, R.H.

$

$

Not available

H

Simplicity 2118053SM

Tine Shaft Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

J

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 5

0

K

Simplicity 105275

Deflector Extention, R.H.

$

$

Not available

L

Simplicity 105276

Deflector Extention, L.H.

$

$

Not available

M

Simplicity 703011

Carriage Bolt, 5/16"-18 x 1/2"

$7.99

$

Usually ships in 2-12 days

0

N

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

P

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available
