990549 - Simplicity Roticul Supermatic Tiller, 5hp Frame, Handles & Controls Parts Diagram

Roticul Supermatic Tiller, 5hp

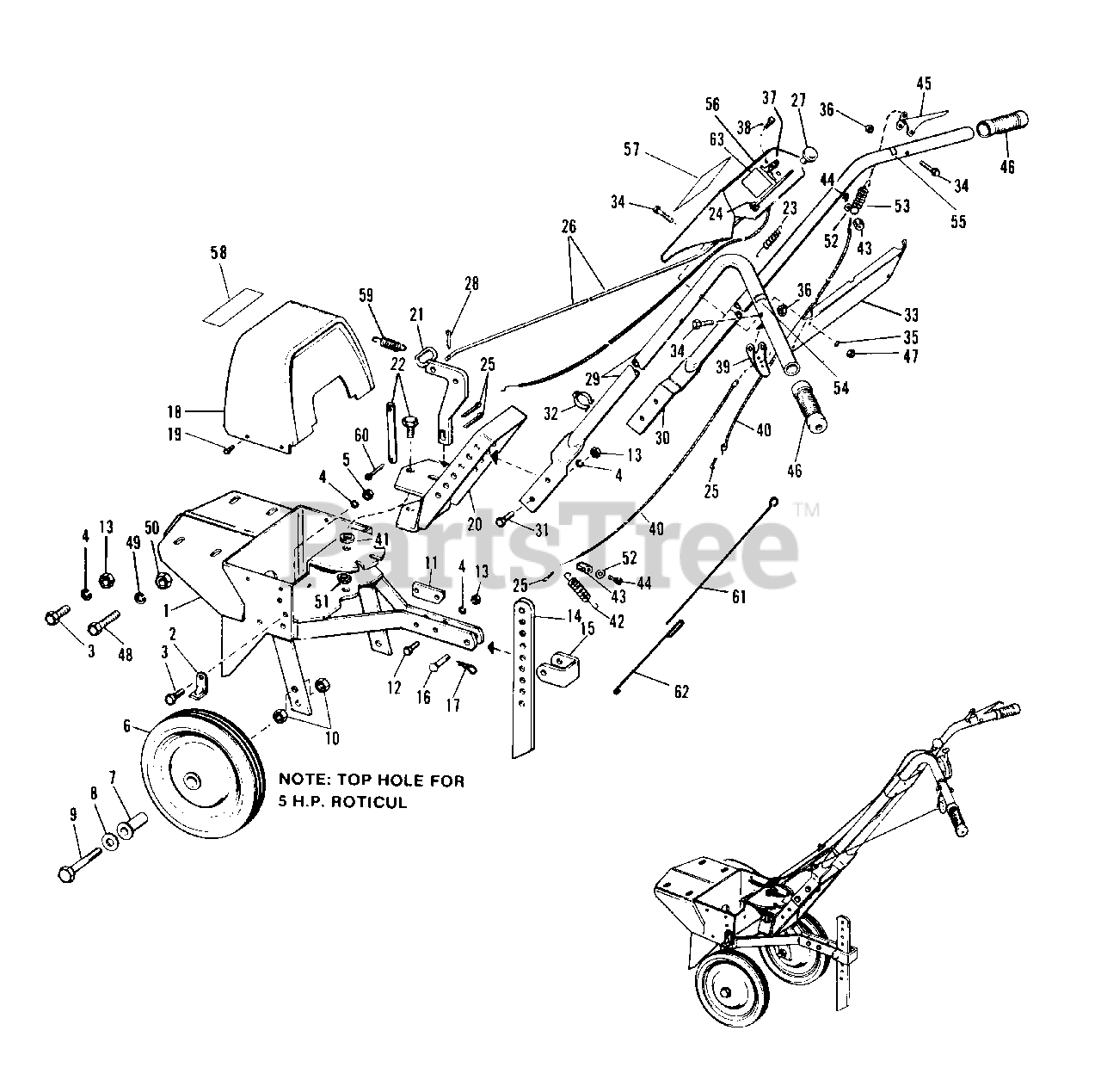

Frame, Handles & Controls Parts Diagram

  • Title

1

Simplicity 170886

BODY ASSY

$

$

Not available

2

Simplicity 170360

SCRAPER

$

$

Not available

3

Simplicity 2808127

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

5

Simplicity 2817421

LOCKWASHER, 3/8

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

5

Simplicity 2817421

NUT, Hex, Full, 3/8-16

$

$

Not available

6

Simplicity 118030

WHEEL & TIRE ASSY

$

$

Not available

7

Simplicity 2118132SM

BUSHING, Wheel

$

$

Not available

8

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

9

Simplicity 2808529

CAPSCREW, Hex Hd., 1/2-13 x 3-1/4

$

$

Not available

10

Simplicity 2813744

NUT, Hex, Jam, 1/2-13

$

$

Not available

11

Simplicity 118207

PLATE, Stop

$

$

Not available

12

Simplicity 2819360

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

13

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

14

Simplicity 118081

BAR, Depth

$

$

Not available

15

Simplicity 118447

CLAMP

$

$

Not available

16

Simplicity 2105249SM

PIN, Inner

$16.99

$

Usually ships in 2-12 days

0

17

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

18

Simplicity 118445

COVER

$

$

Not available

19

Simplicity 2827428

SCREW, Washer Hd., Thd. Form, 1/4-20

$

$

Not available

20

Simplicity 118428

SUPPORT ASSY, Handle

$

$

Not available

21

Simplicity 118454

LATCH ASSY

$

$

Not available

22

Simplicity 2824119

CAPSCREW, Hex, 1/2-20 x 1-1/4

$

$

Not available

23

Simplicity 118460

ROD, Pivot

Note: Not Illustrated.

$

$

Not available

23

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

Note: Not Shown.

$6.49

$

In Stock, Qty 11

0

24

Simplicity 2118273SM

BUSHING

Note: Not Shown.

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

26

Simplicity 172699

ROD, Latch

$

$

Not available

26

Simplicity 118451

ROD, Latch

Note: Not Illustrated.

$

$

Not available

27

Simplicity 2118104

KNOB, Latch Rod

$

$

Not available

28

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

29

Simplicity 176943

HANDLE, L.H. (990938 only)

$

$

Not available

29

Simplicity 118427

HANDLE, L.H.

$

$

Not available

30

Simplicity 176942

HANDLE, R.H. (990938 only)

$

$

Not available

30

Simplicity 118426

HANDLE, R.H.

$

$

Not available

31

Simplicity 2807731

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

32

Simplicity 80611-08

CLIP, Cable

$

$

Not available

33

Simplicity 118298

COVER, Handle Bar

$

$

Not available

34

Simplicity 2818240

CAPSCREW, Hex Hd., 1/4-20 x 1-1/2

$

$

Not available

35

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

36

Simplicity 2823358

NUT, Hex, Full Lock, 1/4-20

$

$

Not available

37

Simplicity 172713

THROTTLE ASSY, Control

$

$

Not available

37

Simplicity 118446

THROTTLE ASSY, Control

Note: Used On Mfg. No. 990549

$

$

Not available

38

Simplicity 2823188

SCREW, Self-Tapping, 1/4-20 x 1/2

$

$

Not available

38

Simplicity 2828732

SCREW, Self-Tapping, #10-24

Note: Used On Mfg. No. 990549

$

$

Not available

39

Simplicity 118449

GRIP, Clutch, Reverse

$

$

Not available

40

Simplicity 2172686SM

CABLE

$41.99

$

Usually ships in 2-12 days

0

41

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

42

Simplicity 2118495SM

SPRING

$5.99

$

Usually ships in 2-12 days

0

43

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

44

Simplicity 928722

SETSCREW, #10-24 x 1/2

$

$

Not available

45

Simplicity 118431

GRIP, Clutch, Forward

$

$

Not available

46

Simplicity 2106558

GRIP, Handle Bar

$

$

Not available

47

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

48

Simplicity 2828038

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

49

Simplicity 2818199

LOCKWASHER, 7/16

Note: Used On Mfg. No. 990938

$

$

Not available

50

Simplicity 913901

NUT, Hex, Full, 7/16-20

Note: Used On Mfg. No. 990938

$

$

Not available

51

Simplicity 2830245

NUT, Hex, Full Lock, 1/2-20

Note: Used On Mfg. No. 990938

$

$

Not available

52

Simplicity 2817380

WASHER, #10 Plain

Note: Used On Mfg. No. 990938

$

$

Not available

53

Simplicity 2121037SM

SPRING

Note: Used On Mfg. No. 990938

$

$

Not available

54

Simplicity 118485

DECAL, Reverse

$

$

Not available

55

Simplicity 118484

DECAL, Forward

$

$

Not available

56

Simplicity 118237

HOUSING, Control

$

$

Not available

57

Simplicity 118482

EMBLEM, "S"

$

$

Not available

58

Simplicity 155061

DECAL, Simplicity

$

$

Not available

59

Simplicity 170389

SPRING

Note: Used On Mfg. No. 990549

$

$

Not available

60

Simplicity 2818452

PIN, Cotter

Note: Used On Mfg. No. 990549

$

$

Not available

61

Simplicity 1610-90

CLUTCH ROD, Ext.

Note: Used On Mfg. No. 990549

$

$

Not available

62

Simplicity 108455

WIRE EXT.

Note: Used On Mfg. No. 990549

$

$

Not available

63

Simplicity 172729

DECAL Instructional

$

$

Not available
