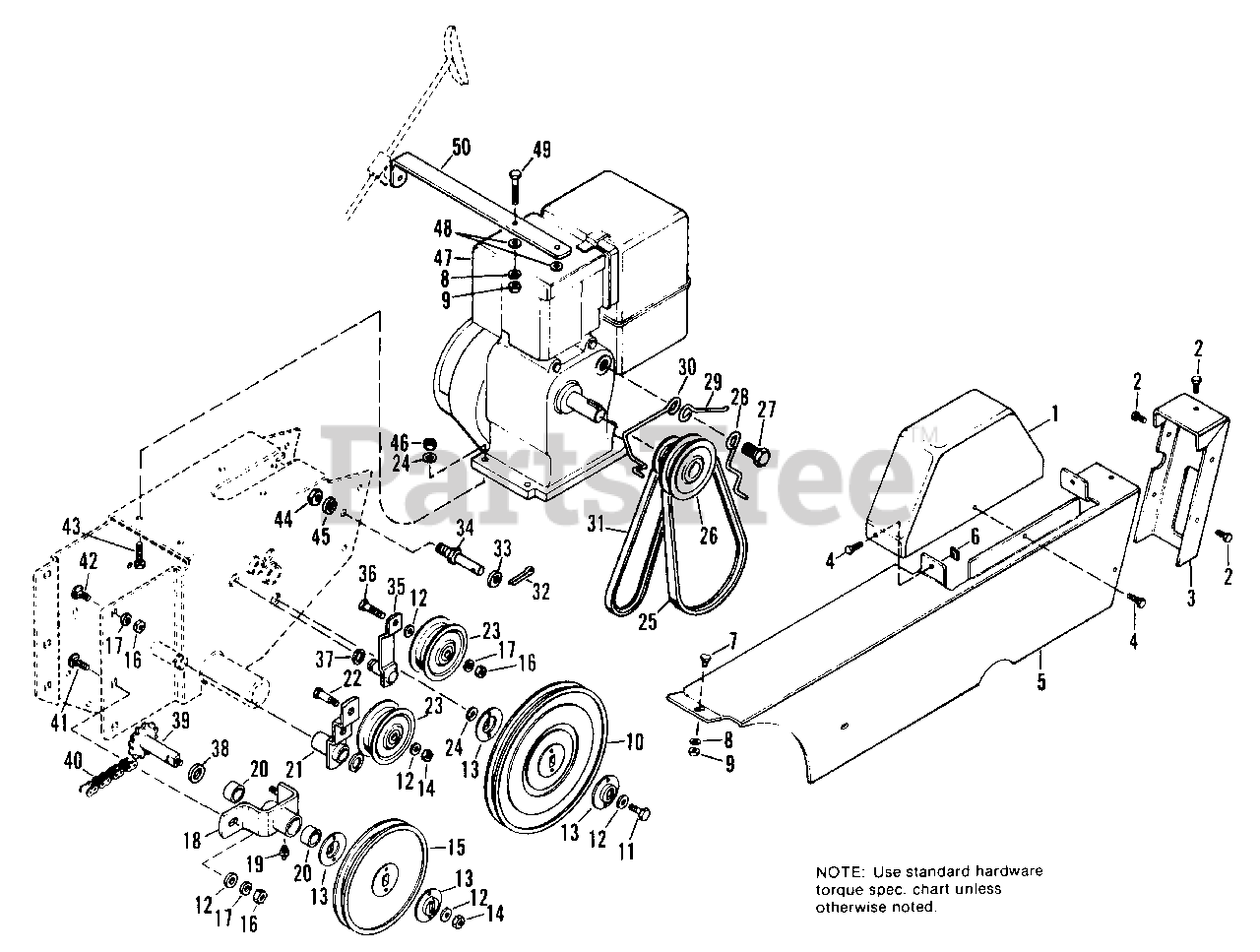

990551 - Simplicity Sno-Away 24" Snow Thrower, 5hp Engine & Drive Group Parts Diagram

Sno-Away 24" Snow Thrower, 5hp

Engine & Drive Group Parts Diagram

  • Title

1

Simplicity 161256

COVER, Top, Belt

$

$

Not available

2

Simplicity 2827428

SCREW, Ind. Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

3

Simplicity 161258

SUPPORT, Belt Cover

$

$

Not available

4

Simplicity 2819339

SCREW, Self Tapping, 1/4-20 x 5/8

$

$

Not available

5

Simplicity 161257

COVER, Lower

$

$

Not available

6

Simplicity 9287-03

NUT, Retainer

$

$

Not available

7

Simplicity 2821958

CAPSCREW, Hex Hd., 1/4-20 x 1/2

$

$

Not available

8

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 18

0

9

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 17

0

10

Simplicity 161245

PULLEY, Transmission

$

$

Not available

11

Simplicity 2823325

CAPSCREW, Hex Hd., 5/16-18 x 7/8

$

$

Not available

12

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

13

Simplicity 2158378SM

WASHER, Special

$

$

Not available

14

Simplicity 2828731

LOCKNUT, Jam, 3/8-16

$

$

Not available

15

Simplicity 2158377SM

PULLEY

$

$

Not available

16

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

18

Simplicity 106966

HOUSING ASSY., Bearing

$

$

Not available

19

Simplicity 2814687

FITTING, Grease

$

$

Not available

20

Simplicity 2156072SM

BEARING

$25.99

$

In Stock, only 1 left!

0

21

Simplicity 106969

LEVER ASSY., Idler

$

$

Not available

22

Simplicity 2108497

SCREW, Special

$

$

Not available

23

Simplicity 2154534SM

PULLEY, Idler

$34.99

$

In Stock, only 2 left!

0

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

25

Simplicity 2118488

V-BELT (Transmission Drive)

$

$

Not available

26

Simplicity 106939

PULLEY, Engine

$

$

Not available

27

Simplicity 2821370

CAPSCREW, Hex Hd., 1/2-20 x 1

$

$

Not available

28

Simplicity 161270

STOP, Belt

$

$

Not available

29

Simplicity 161271

STOP, Belt

$

$

Not available

30

Simplicity 161269

STOP, Belt

$

$

Not available

31

Simplicity 2161098SM

V-BELT (Auger Drive)

$

$

Not available

32

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

33

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 106928

STUD

$

$

Not available

35

Simplicity 106967

ARM ASSY., Idler

$

$

Not available

36

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

37

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

38

Simplicity 8051066

WASHER

$

$

Not available

39

Simplicity 2106925SM

SHAFT ASSY., Sprocket

$219.99

$

Usually ships in 2-12 days

0

40

Simplicity 106897

CHAIN (Drive)

$

$

Not available

41

Simplicity 2822249

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

42

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

43

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

44

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

45

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

46

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

47

ENGINE, 5 HP, Briggs & Stratton, Model 130202, Type 0283-01

$

$

Not available

48

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

49

Simplicity 2819316

CAPSCREW, Hex Hd., 1/4-20 x 1-3/4

$

$

Not available

50

Simplicity 161241

SUPPORT, Rod

$

$

Not available
