990551 - Simplicity Sno-Away 24" Snow Thrower, 5hp Handles & Controls Group Parts Diagram

Sno-Away 24" Snow Thrower, 5hp

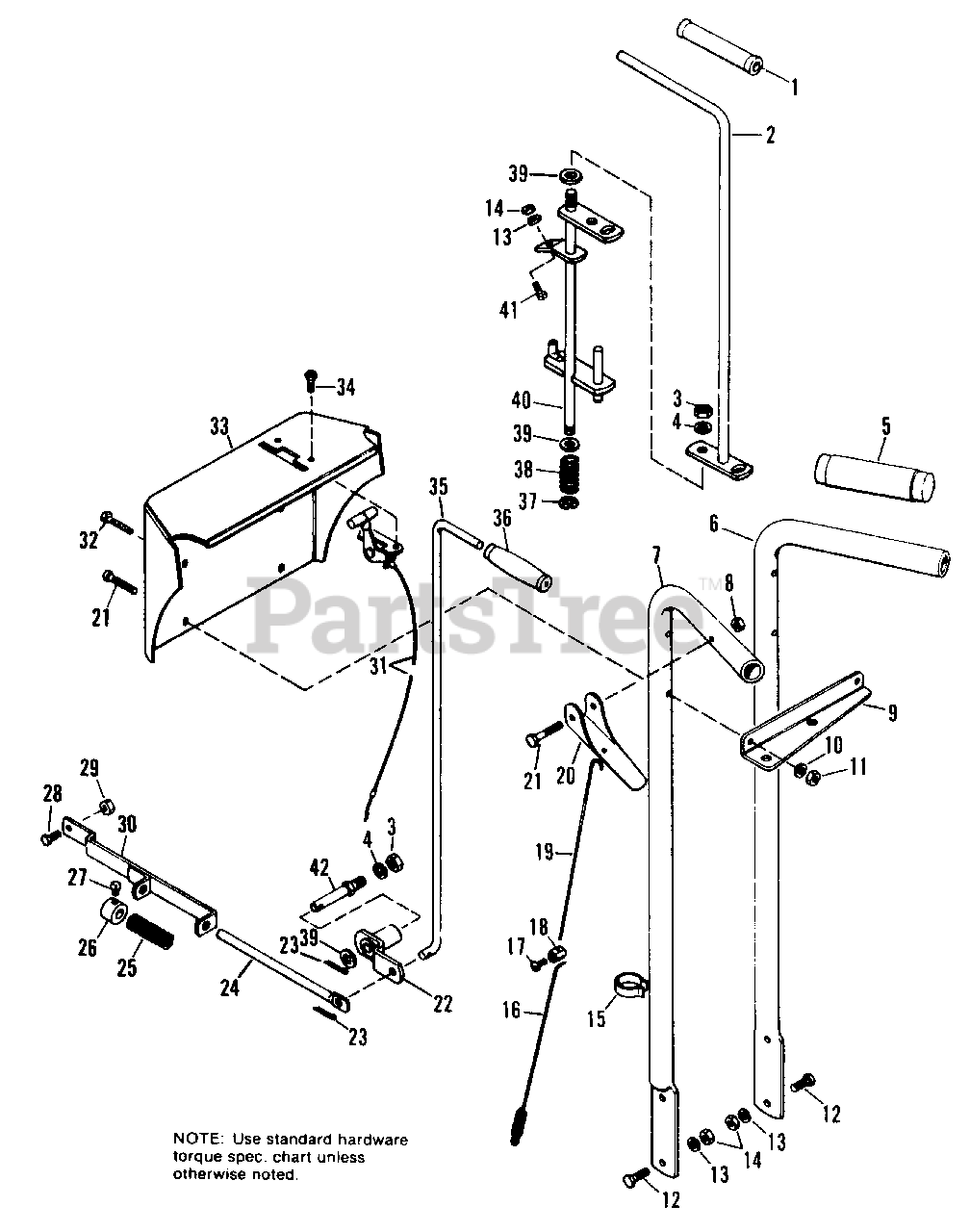

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 176985

GRIP, Handle

$

$

Not available

2

Simplicity 161213

ROD ASSY., Shift, Upper

$

$

Not available

3

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

4

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

5

Simplicity 2106558

GRIP

$

$

Not available

6

Simplicity 106976

HANDLE, R.H.

$

$

Not available

7

Simplicity 106975

HANDLE, L.H.

$

$

Not available

8

Simplicity 2823358

LOCKNUT, Hex, Full, 1/4-20

$

$

Not available

9

Simplicity 161292

GUIDE, Rod

$

$

Not available

10

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

12

Simplicity 2823325

CAPSCREW, Hex, 5/16-18 x 7/8

$

$

Not available

13

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1605216

CLIP, Cable

$

$

Not available

16

Simplicity 106778

SPRING ASSY.

$

$

Not available

17

Simplicity 916079

SCREW, Rd. Hd., #10-24 x 3/8

$

$

Not available

18

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

19

Simplicity 1610-90

EXTENSION, Spring

$

$

Not available

20

Simplicity 1180-56

GRIP, Clutch

$

$

Not available

21

Simplicity 2818240

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

22

Simplicity 106930

ARM ASSY., Pivot

$

$

Not available

23

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

24

Simplicity 106913

ROD, Clutch

$

$

Not available

25

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

26

Simplicity 105201

SET COLLAR

$

$

Not available

27

Simplicity 2828804

SETSCREW, Sq. Hd., 1/4-20 x 3/8

$

$

Not available

28

Simplicity 2819318

CAPSCREW, Hex, 5/16-18 x 5/8

$

$

Not available

29

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

30

Simplicity 106954

GUIDE, ASSY., Rod

$

$

Not available

31

Simplicity 1664589SM

CONTROL ASSY.

$56.99

$

Usually ships in 2-12 days

0

32

Simplicity 2819316

CAPSCREW, Hex, 1/4-20 x 1-3/4

$

$

Not available

33

Simplicity 161143

HOUSING ASSY., Control

$

$

Not available

34

Simplicity 2823188

SCREW, Hex Hd., Self Tapping, 1/4 x 20 x 1/2

$

$

Not available

35

Simplicity 106980

ROD, Idler

$

$

Not available

36

Simplicity 106572

GRIP

$

$

Not available

37

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 161290

SPRING

$

$

Not available

39

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 161231

ROD ASSY., Shift Lower

$

$

Not available

41

Simplicity 2819319

CAPSCREW, Hex, 5/16-18 x 7/8

$

$

Not available

42

Simplicity 106928

STUD

$

$

Not available
