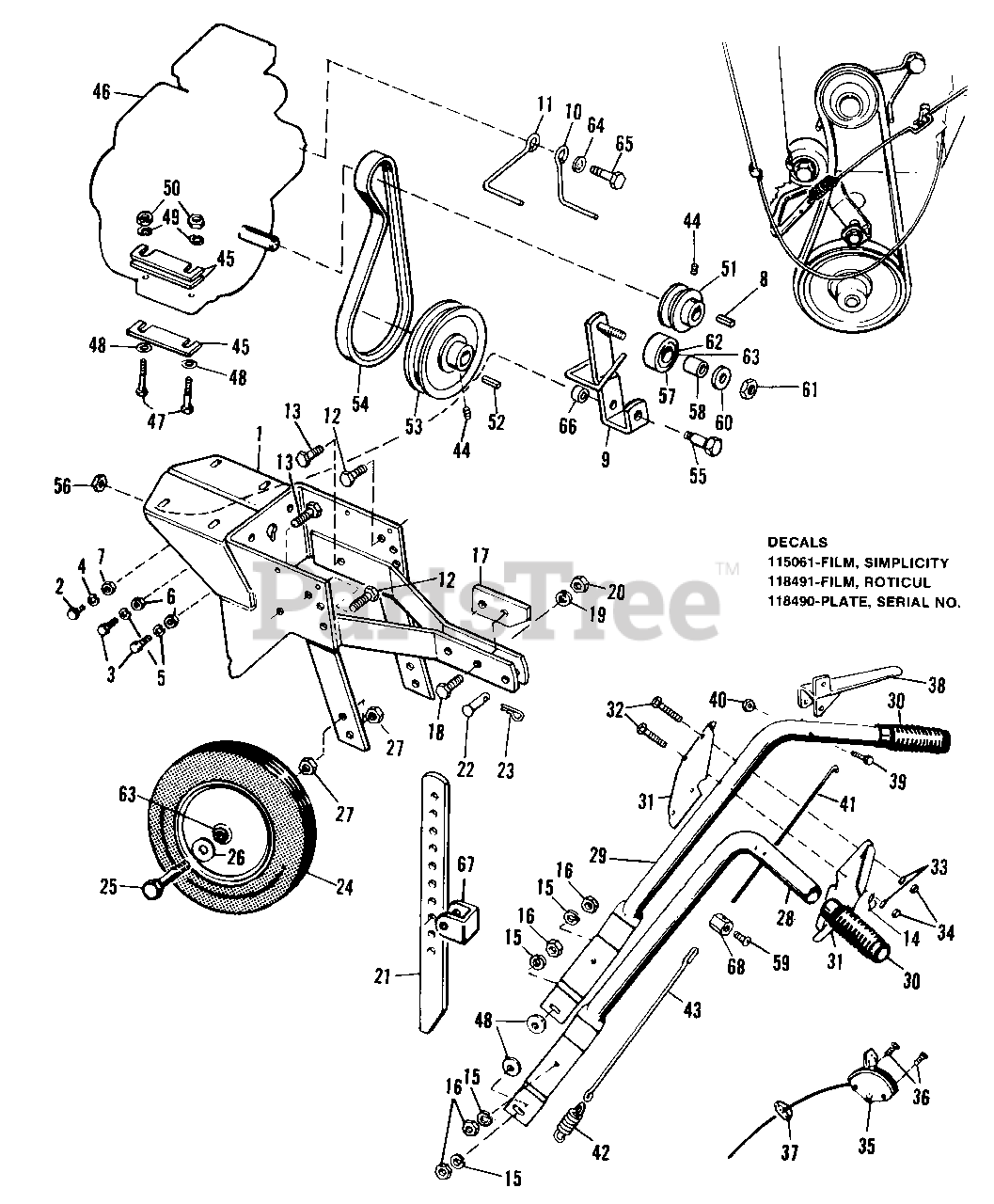

990552 - Simplicity Roticul Tiller, 3hp Frame, Handles & Controls Parts Diagram

Roticul Tiller, 3hp

Frame, Handles & Controls Parts Diagram

  • Title

1

Simplicity 170886

BODY ASSY

$

$

Not available

1

Simplicity 118468

BODY ASSY

Note: Used on Mfg. No. 990552 Only

$

$

Not available

2

Simplicity 2808127

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

3

Simplicity 2828038

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

3

Simplicity 2822605

CAPSCREW, Hex, 3/8-16 x 1/4

Note: Used on Mfg. No. 990552 Only

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

5

Simplicity 2818199

LOCKWASHER, 3/8

Note: Used on Mfg. No. 990936 Only

$

$

Not available

6

Simplicity 913901

NUT, Hex, Full, 7/16-20

Note: Used on Mfg. No. 990936 Only

$

$

Not available

7

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

8

Simplicity 2805850SM

KEY

$2.49

$

Usually ships in 2-12 days

0

9

Simplicity 172751

LEVER ASSY, Idler

$

$

Not available

9

Simplicity 118411

LEVER ASSY, Idler

Note: Used on Mfg. No. 990552 Only

$

$

Not available

10

Simplicity 2106545SM

STOP, Belt

$5.99

$

Usually ships in 2-12 days

0

11

Simplicity 118037

STOP, Belt

$

$

Not available

12

Simplicity 2819357

CAPSCREW, Hex, 3/8-16 x 7/8

$

$

Not available

13

Simplicity 2817400

CAPSCREW, hex, 3/8-16 x 1-1/4

$

$

Not available

14

Simplicity 2106786

CLAMP

$

$

Not available

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

16

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

17

Simplicity 118207

PLATE, Stop

$

$

Not available

18

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

20

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

21

Simplicity 118081

BAR, Depth

$

$

Not available

22

Simplicity 2105249SM

PIN

$16.99

$

Usually ships in 2-12 days

0

23

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

24

Simplicity 118469

WHEEL & TIRE ASSY

$

$

Not available

25

Simplicity 920207

CAPSCREW, Hex, 1/2-13 x 3

$

$

Not available

26

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

27

Simplicity 2813744

NUT, Hex, Jam, 1/2-13

$

$

Not available

28

Simplicity 176940

HANDLE, L.H.

$

$

Not available

28

Simplicity 118466

HANDLE, L.H.

Note: Used on Mfg. No. 990552 Only

$

$

Not available

29

Simplicity 118467

HANDLE, R.H.

$

$

Not available

30

Simplicity 2106558

GRIP, Handle

$

$

Not available

31

Simplicity 118298

COVER, Handle, Upper

$

$

Not available

32

Simplicity 2818240

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

33

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

34

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

35

Simplicity 118300

THROTTLE ASSY, Control

$

$

Not available

36

Simplicity 2828732

SCREW, Self-Tapping, #10-24 x 1-1/4

$

$

Not available

37

Simplicity 80611-08

CLIP, Cable

$

$

Not available

38

Simplicity 118431

GRIP, Clutch

$

$

Not available

39

Simplicity 2818240

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

40

Simplicity 2823358

NUT, Hex, Full Lock, 1/4-20

$

$

Not available

41

Simplicity 1610-90

EXTENSION, Spring

$

$

Not available

42

Simplicity 2118495SM

SPRING

$5.99

$

Usually ships in 2-12 days

0

43

Simplicity 118455

WIRE, Ext.

$

$

Not available

44

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

45

Simplicity 118463

SHIM

$

$

Not available

46

ENGINE, Briggs & Stratton, Model 80202, Type 0252-01

$

$

Not available

47

Simplicity 2819354

CAPSCREW, Hex, 5/16-18 x 2

$

$

Not available

48

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

49

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

50

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

51

Simplicity 2118027SM

PULLEY, Engine

$50.99

$

Usually ships in 2-12 days

0

52

Simplicity 118439

KEY

$

$

Not available

53

Simplicity 118470

PULLEY, Driven

$

$

Not available

54

Simplicity 2118312

BELT, V

$

$

Not available

55

Simplicity 171337

BOLT, Pivot

$

$

Not available

55

Simplicity 118465

BOLT, Pivot

Note: Used On Mfg. No. 990552 Only

$

$

Not available

56

Simplicity 2827557

NUT, Special, Whiz-Lock

$

$

Not available

57

Simplicity 101002

PULLEY ASSY, Idler

$

$

Not available

58

Simplicity 819020

SPACER

$

$

Not available

59

Simplicity 916079

SCREW, Rd. Hd., #10-24 x 3/8

$

$

Not available

60

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

61

Simplicity 2828731

NUT, Hex, Lock, 3/8-16

$

$

Not available

62

Simplicity 8161243

BEARING

$

$

Not available

63

Simplicity 2118132SM

BUSHING

$

$

Not available

64

Simplicity 2809589

LOCKWASHER, 1/2

$

$

Not available

65

Simplicity 2821370

CAPSCREW, Hex, 1/2-20 x 1

$

$

Not available

66

Simplicity 118472

SPACER

$

$

Not available

67

Simplicity 118447

CLAMP

$

$

Not available

68

Simplicity 1610-92

CLAMP, Wire

$

$

Not available
