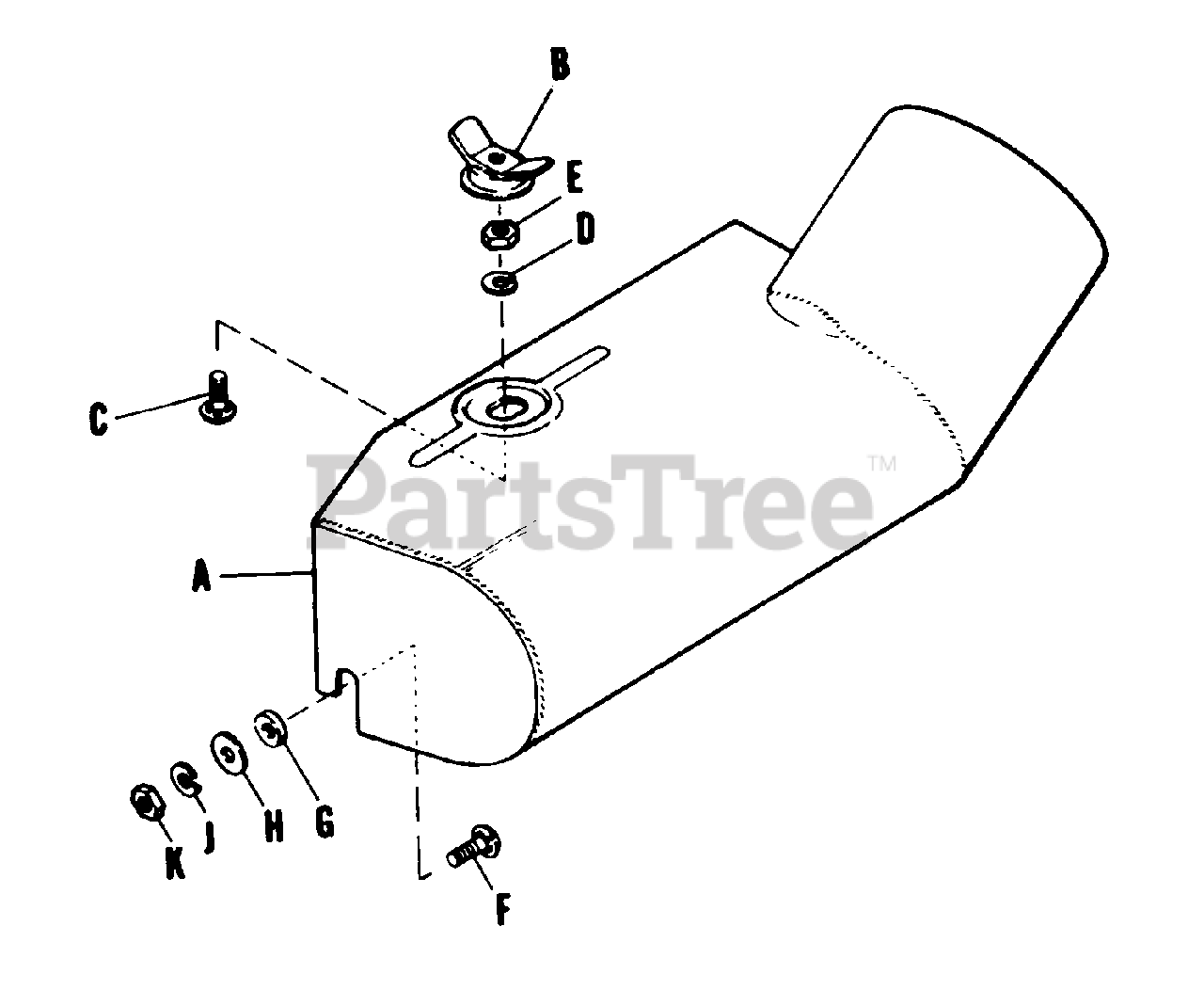

990576 - Simplicity 48" Mower Deck Adapter Kit Parts Diagram

48" Mower Deck

Adapter Kit Parts Diagram

  • Title

A

Simplicity 123112

Adaptor Assembly

$

$

Not available

B

Simplicity 2123060

Nut Assembly

$

$

Not available

C

Simplicity 2703003

Carriage Bolt, 3/8"-16 x 1"

$

$

Not available

D

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

E

Simplicity 2717003

Nut, Hex, Full, 3/8"-16

$

$

Not available

F

Simplicity 2703002

Carriage Bolt, 3/8"-16 x 1-1/4"

$

$

Not available

G

Simplicity 2153081

Spacer

$

$

Not available

H

Simplicity 157169

Washer

$

$

Not available

J

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

K

Simplicity 2717003

Nut, Hex, Full, 3/8"-16

$

$

Not available
