990576 - Simplicity 48" Mower Deck DECK ASSEMBLY Parts Diagram

48" Mower Deck

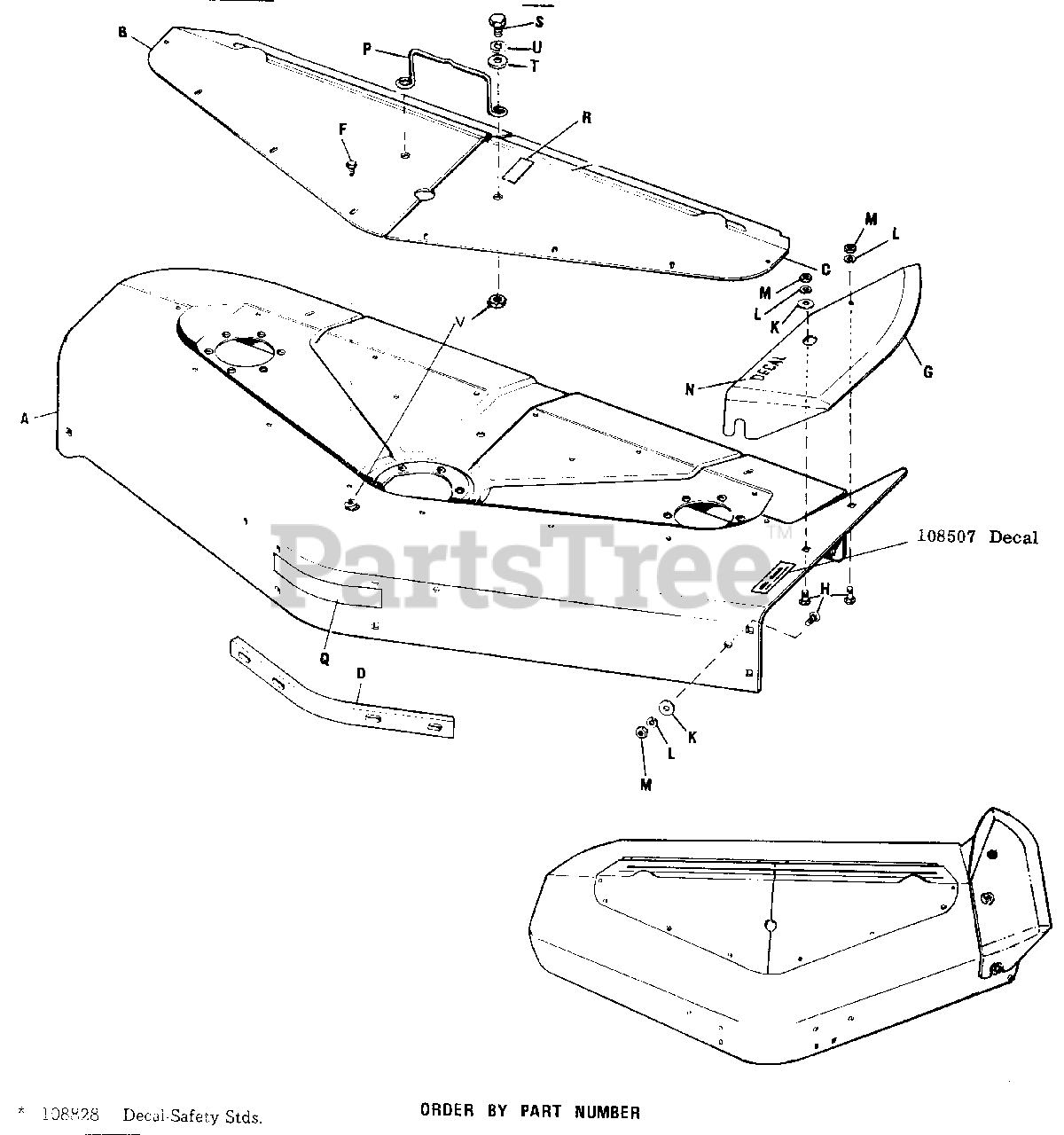

DECK ASSEMBLY Parts Diagram

  • Title

A

Simplicity 2108451

Mower Housing

$

$

Not available

B

Simplicity 2108456

R.H. Cover

$

$

Not available

C

Simplicity 2108457

L.H. Cover

$

$

Not available

D

Simplicity 108336

Reinforcing Bar

$

$

Not available

F

Simplicity 2715067

Self Tapping Screw, 1/4"-20 x 3/8"

$

$

Not available

G

Simplicity 108506

Deflector

$

$

Not available

H

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

K

Simplicity 1924356SM

Special Washer
(Superseded to 703591)

$5.49

$

In Stock, Qty 6

0

L

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

M

Simplicity 2717003

Hex. Nut, 3/8"-16

$

$

Not available

N

Simplicity 103031

Decal

$

$

Not available

P

Simplicity 2170011

Guide Belt

$

$

Not available

Q

Simplicity 106719

Film Simplicity

$

$

Not available

R

Simplicity 170731

Film-Belt Instructions

$

$

Not available

S

Simplicity 2705017

Hex. Cap Screw, 5/16"-18 x 3/4"

$

$

Not available

T

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

U

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

V

Simplicity 2718041

Nut Retainer, 5/16"

$

$

Not available
