990628 - Simplicity 30" Tiller Attachment HITCH AND LIFT Parts Diagram

30" Tiller Attachment

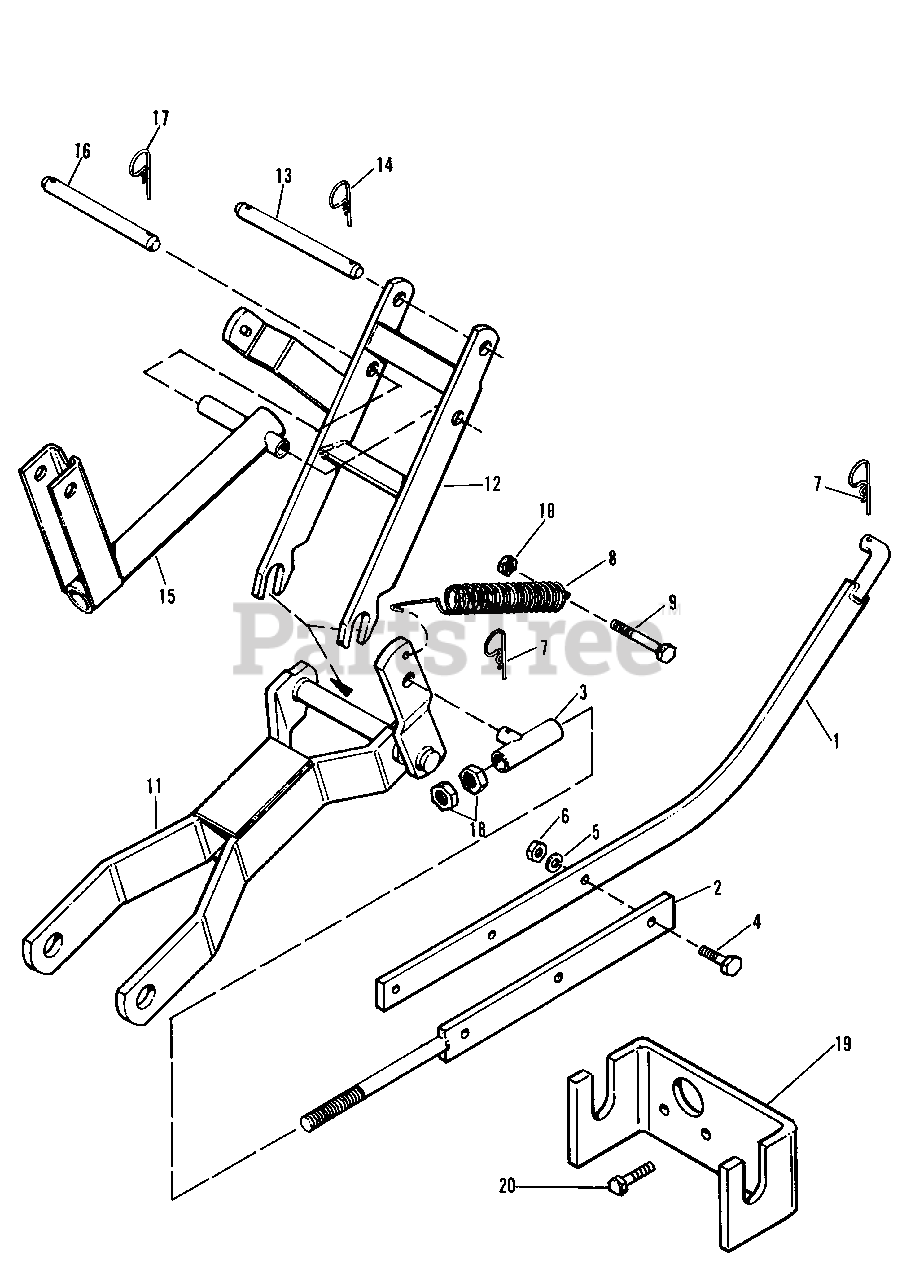

HITCH AND LIFT Parts Diagram

  • Title

1

Simplicity 170441

Lift Arm Assembly (Front)

$

$

Not available

2

Simplicity 170438

Lift Arm Assembly (Rear)

$

$

Not available

3

Simplicity 170436

Guide Tube Assembly

$

$

Not available

4

Simplicity 2715042

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

5

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

6

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

7

Simplicity 1918196SM

Spring Clips
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 170383

Spring

$

$

Not available

9

Simplicity 2715043

Hex Capscrew, 3/8"-16 x 2-1/2" lg.

$

$

Not available

10

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

11

Simplicity 170554

Hitch & Lift Assembly

$

$

Not available

12

Simplicity 170078

Strut Assembly

$

$

Not available

13

Simplicity 170117

Pin

$

$

Not available

14

Simplicity 1918196SM

Spring Clips
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 170114

Beam

$

$

Not available

16

Simplicity 170115

Pin

$

$

Not available

17

Simplicity 1918196SM

Spring Clips
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

18

Simplicity 718008

Hex Nuts, Full, Tinnerman

$

$

Not available

19

Simplicity 123096

Attachment Hitch

$

$

Not available

20

Simplicity 2715042

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available
