990643 - Simplicity Sno-Away 28" Snow Thrower, 7hp Pulley Group (07000000) Parts Diagram

Sno-Away 28" Snow Thrower, 7hp

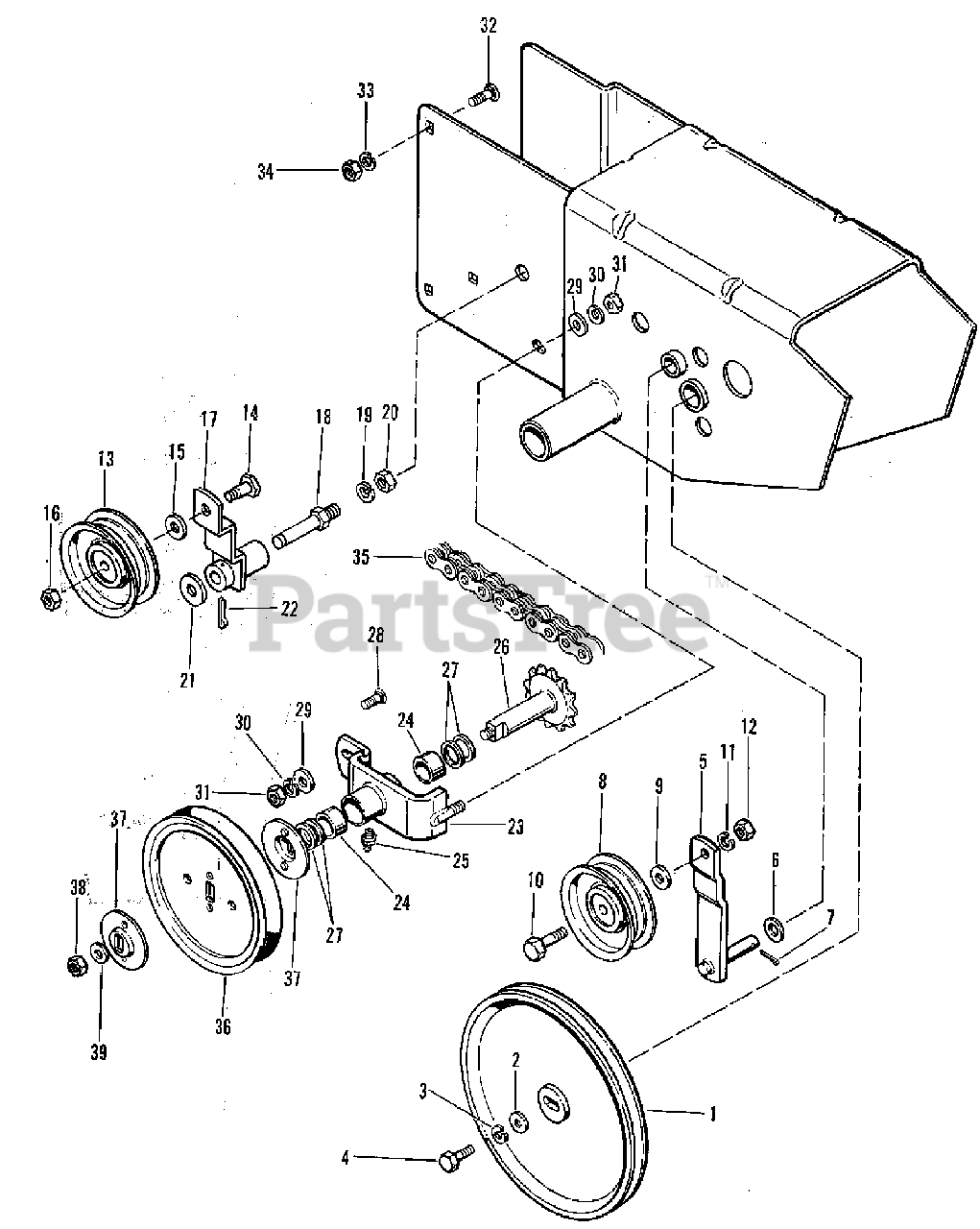

Pulley Group (07000000) Parts Diagram

  • Title

1

Simplicity 170724

PULLEY, Transmission

$

$

Not available

2

Simplicity 2719002

WASHER, 5/16

$

$

Not available

3

Simplicity 2720001

LOCK WASHER, 5/16

$

$

Not available

4

Simplicity 2715073

CAPSCREW, Hex Head, 5/16-18 x 7/8

$

$

Not available

5

Simplicity 170768

IDLER ARM ASSEMBLY

$

$

Not available

6

Simplicity 2158645

WASHER, 3/8

$

$

Not available

7

Simplicity 2722001

COTTER PIN

$

$

Not available

8

Simplicity 2154534SM

PULLEY, Idler

$34.99

$

In Stock, only 2 left!

0

9

Simplicity 2719002

WASHER, 5/16

$

$

Not available

10

Simplicity 2705016

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$

$

Not available

11

Simplicity 2720002

LOCK WASHER,3/8

$

$

Not available

12

Simplicity 2717003

NUT, Hex, 3/8-16

$

$

Not available

13

Simplicity 2154534SM

PULLEY, Idler

$34.99

$

In Stock, only 2 left!

0

14

Simplicity 2108497

SCREW, Special

$

$

Not available

15

Simplicity 2719002

WASHER, 5/16

$

$

Not available

16

Simplicity 2717524

NUT, Hex Jam, 3/8-16

$

$

Not available

17

Simplicity 106969

LEVER ASSEMBLY

$

$

Not available

18

Simplicity 106928

STUD

$

$

Not available

19

Simplicity 2720006

WASHER, 7/16

$

$

Not available

20

Simplicity 2717022

NUT, Hex Jam, 7/16

$

$

Not available

21

Simplicity 2719001

WASHER, 3/8

$

$

Not available

22

Simplicity 2722009

COTTER PIN

$

$

Not available

23

Simplicity 170783

BEARING HOUSING ASSEMBLY

$

$

Not available

24

Simplicity 2156072SM

BEARING

$25.99

$

In Stock, only 1 left!

0

25

Simplicity 2727001

GREASE FITTING

$

$

Not available

26

Simplicity 2106925SM

SPROCKET & SHAFT ASSEMBLY

$219.99

$

Usually ships in 2-12 days

0

27

Simplicity 2860207SM

SPACER WASHER

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 2703003

CARRIAGE BOLT, 3/8-16 x 1

$

$

Not available

29

Simplicity 2719002

WASHER, 5/16

$

$

Not available

30

Simplicity 2720002

LOCKWASHER, 3/8

$

$

Not available

31

Simplicity 2717003

NUT, Hex, 3/8-16

$

$

Not available

32

Simplicity 2703004

CARRIAGE BOLT, 3/8-16 x 3/4

$

$

Not available

33

Simplicity 2720002

LOCKWASHER, 3/8

$

$

Not available

34

Simplicity 2717003

NUT, Hex, 3/8-16

$

$

Not available

35

Simplicity 2105336SM

CHAIN, W/Connecting Link

$29.99

$

Usually ships in 2-12 days

0

36

Simplicity 2173940

PULLEY

$

$

Not available

37

Simplicity 2158378SM

WASHER, Special

$

$

Not available

38

Simplicity 2717524

NUT, Hex Jam, 3/8-16

$

$

Not available

39

Simplicity 2719002

WASHER, 3/8

$

$

Not available
