990658 - Simplicity Power Lift Kit POWER LIFT KIT Parts Diagram

Power Lift Kit

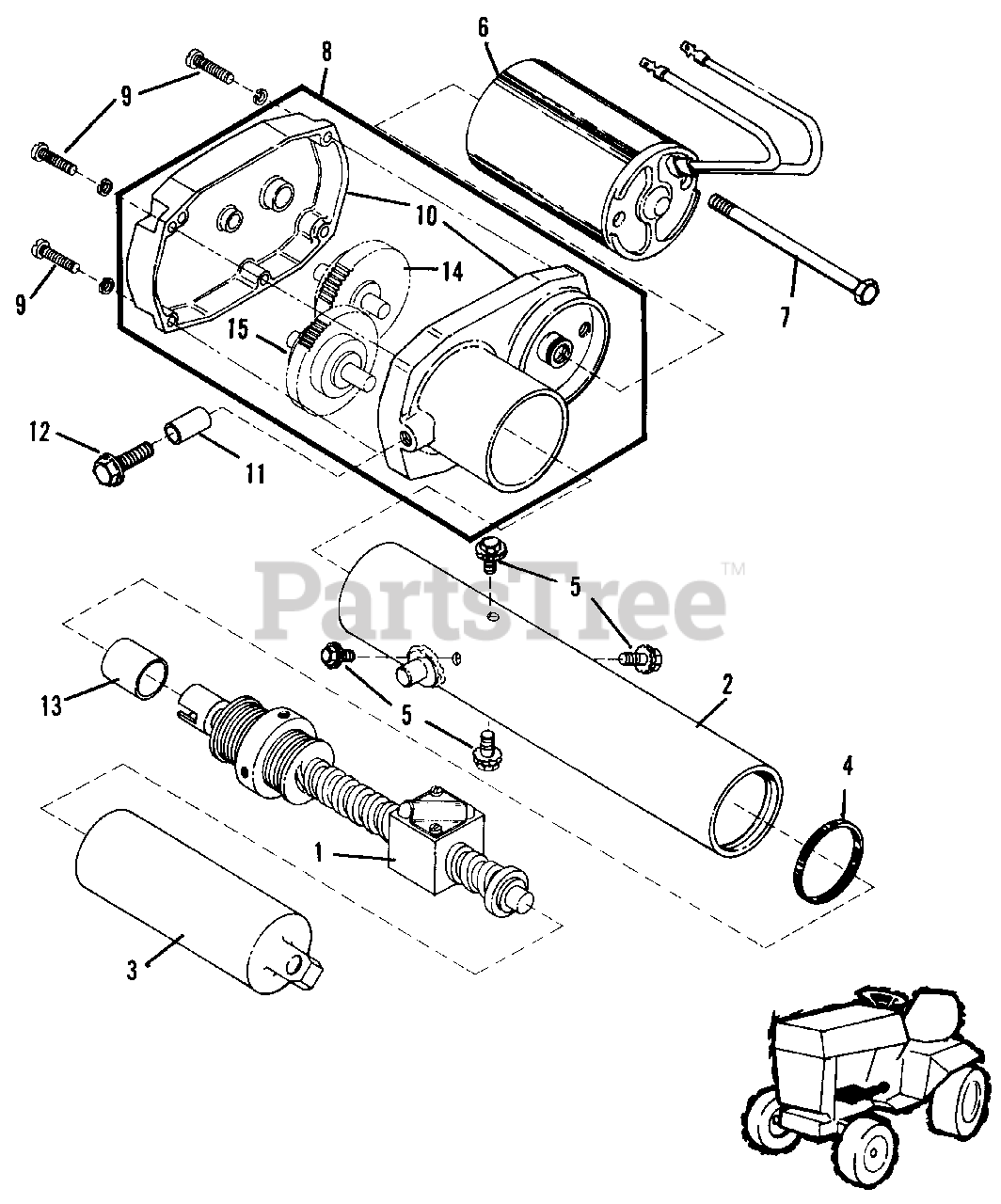

POWER LIFT KIT Parts Diagram

  • Title

1

Simplicity 173697

Screw & Brake Assy.

$

$

Not available

2

Simplicity 173698

Tube Assy., Outer

$

$

Not available

3

Simplicity 173699

Tube Assy., Inner

$

$

Not available

4

Simplicity 1605772

Seal, Quad. Ring

$

$

Not available

5

Simplicity 1605775

Screw, Thread Cutting

$

$

Not available

6

Simplicity 1663966

Motor

$

$

Not available

7

Simplicity 1605777

Screw, Motor

$

$

Not available

8

Simplicity 1605774

Gear Box Assy.

$

$

Not available

9

Simplicity 1605780

Screw, Filister Hd. 10-32

$

$

Not available

10

Simplicity 173702

Housing

$

$

Not available

11

Simplicity 1605778SM

Pin Drive

$6.99

$

Usually ships in 2-12 days

0

12

Simplicity 1605773

Screw-Thread Forming

$

$

Not available

13

Simplicity 1605779

Sleeve-Coupling

$

$

Not available

14

Simplicity 2173700

Gear Assy.

$

$

Not available

15

Simplicity 2173701

Gear Assy.

$

$

Not available
