990665 - Simplicity 46" Dozer Blade 46" DOZER BLADE Parts Diagram

46" Dozer Blade

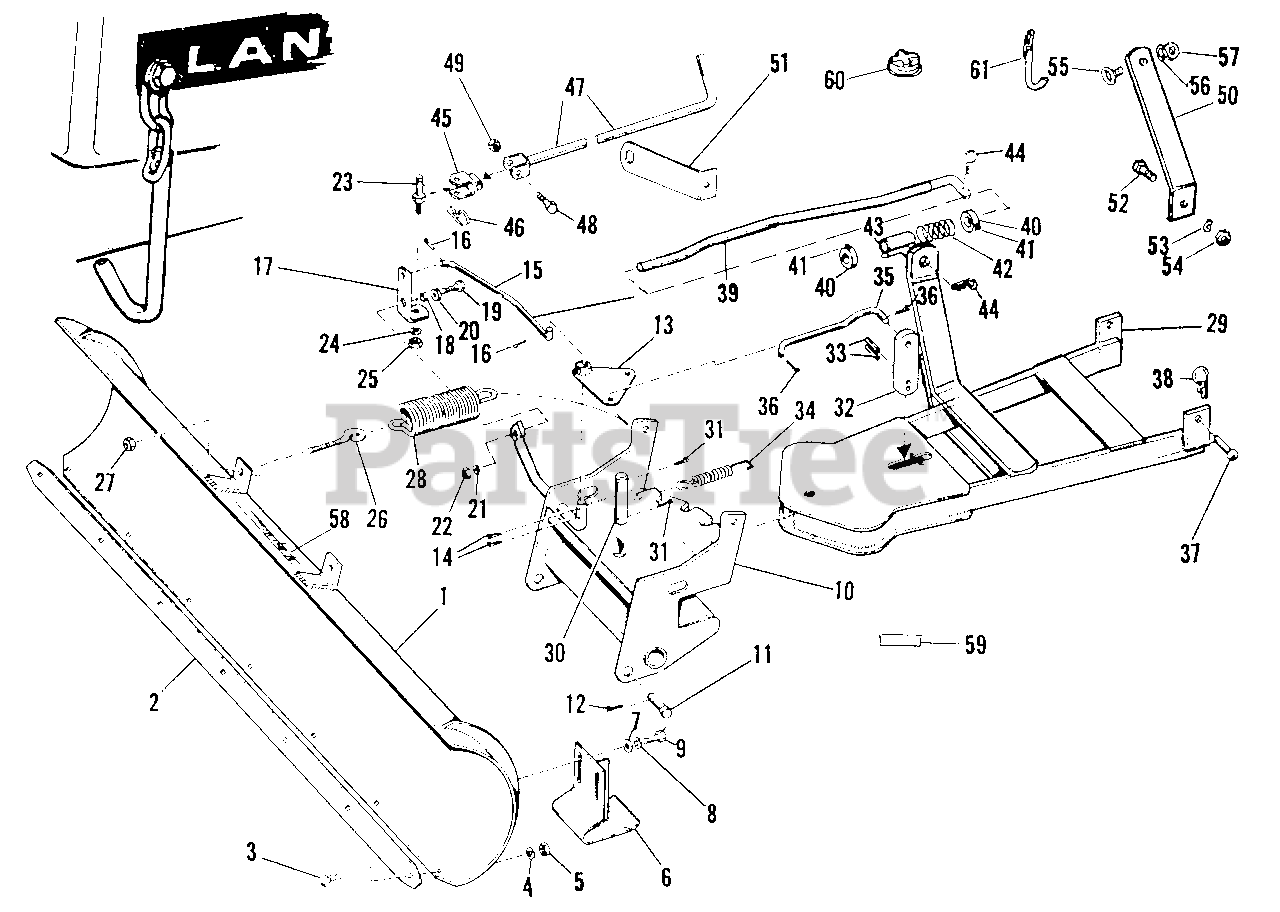

46" DOZER BLADE Parts Diagram

  • Title

1

Simplicity 2107096

Blade Assy.

$

$

Not available

2

Simplicity 2107105SM

Wear Plate

$

$

Not available

3

Simplicity 2702002

Carriage Bolt, 3/8"-16 x 1"

$

$

Not available

4

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

5

Simplicity 2717003

Hex Nut, Full 3/8"-16

$

$

Not available

6

Simplicity 2107106SM

Shoe Assy.
(Superseded to 2107106ASM)

$68.99

$

In Stock, Qty 5

0

7

Simplicity 2719001

Flat Washer, 3/8"

$

$

Not available

8

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

9

Simplicity 2705004

Hex. Cap Screw, 3/8"-16 x 3/4"

$

$

Not available

10

Simplicity 172149

Pivot Frame Assy.

$

$

Not available

11

Simplicity 2154305

Yoke Pin

$

$

Not available

12

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

13

Simplicity 2107116SM

Pivot Plate Assy.

$

$

Not available

14

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

15

Simplicity 2107118SM

Pivot Rod

$9.99

$

Usually ships in 2-12 days

0

16

Simplicity 2722016

Cotter Pin, 3/32" x 5/8"

$

$

Not available

17

Simplicity 107119

Pivot Arm

$

$

Not available

18

Simplicity 2156150SM

Spacer

$11.99

$

Usually ships in 2-12 days

0

19

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1"

$

$

Not available

20

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

21

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

22

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

23

Simplicity 2107120SM

Pivot Stud

$38.99

$

Usually ships in 2-12 days

0

24

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

25

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

26

Simplicity 2107121SM

Eyebolt

$14.99

$

In Stock, only 1 left!

0

27

Simplicity 2717001

Hex Nut, Full, 5/16-18

$

$

Not available

28

Simplicity 2101126SM

Spring

$46.99

$

In Stock, only 1 left!

0

29

Simplicity 172151

Push Bar Assy.

$

$

Not available

30

Simplicity 2107133

Pivot Pin

$

$

Not available

31

Simplicity 2722003

Cotter Pin, 3/16" x 1-1/4"

$

$

Not available

32

Simplicity 107134

Latch

$

$

Not available

33

Simplicity 2723002

Roll Pin, 7/32" x 1"

$

$

Not available

34

Simplicity 2107135SM

Latch Spring

$32.99

$

Usually ships in 2-12 days

0

35

Simplicity 2107136SM

Latch Rod

$53.99

$

Usually ships in 2-12 days

0

36

Simplicity 2722016

Cotter Pin, 3/32" x 5/8"

$

$

Not available

37

Simplicity 2118053SM

(Hitch) Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

38

Simplicity 2106788

Hairpin Clip

$

$

Not available

39

Simplicity 171680

Front Lift Rod

$

$

Not available

40

Simplicity 1729258SM

Collar
(Superseded to 5010477YP)

$8.99

$

Usually ships in 2-12 days

0

41

Simplicity 7130022

Set Screw 5/16"-18 x 3/8"

$

$

Not available

42

Simplicity 1060641

Spring

$

$

Not available

43

Simplicity 1716791SM

Rod Guide

$52.99

$

In Stock, only 2 left!

0

44

Simplicity 1067882

Hairpin Clip

$

$

Not available

45

Simplicity 1061311

Fork Assy.

$

$

Not available

46

Simplicity 1067871

Hairpin Clip

$

$

Not available

47

Simplicity 1071371

Handle Assy.

$

$

Not available

48

Simplicity 7050181

Hex Capscrew, 5/16"-18 x 1-1/2"

$

$

Not available

49

Simplicity 7175111

Full Lock Hex Nut 5/16"-18

$

$

Not available

50

Simplicity 1716767SM

Bracket (For 1971 Tractors Only)

$

$

Not available

51

Simplicity 1066871

Bracket

$

$

Not available

52

Simplicity 7050041

Hex Capscrew, 3/8"-16 x 3/4"

$

$

Not available

53

Simplicity 7200021

Lock Washer, 3/8"

$

$

Not available

54

Simplicity 7170031

Hex Nut, Full 3/8"-16

$

$

Not available

55

Simplicity 1721621

Eyebolt

$

$

Not available

56

Simplicity 7200031

Lock Washer, 1/4"

$

$

Not available

57

Simplicity 7170051

Hex Nut, Full, 1/4-20

$

$

Not available

58

Simplicity 1067191

Film, Simplicity

$

$

Not available

59

Simplicity 1030051

Model No. Plate

$

$

Not available

60

Simplicity 1724321SM

Fuel Tank Cap (Winterized)

$

$

Not available

61

Simplicity 1728981SM

Transport Chain Assy.

$11.99

$

Usually ships in 2-12 days

0
