990688 - Simplicity 38" Lawn Revitalizer Attachment HITCH AND HEIGHT ADJUSTMENT Parts Diagram

38" Lawn Revitalizer Attachment

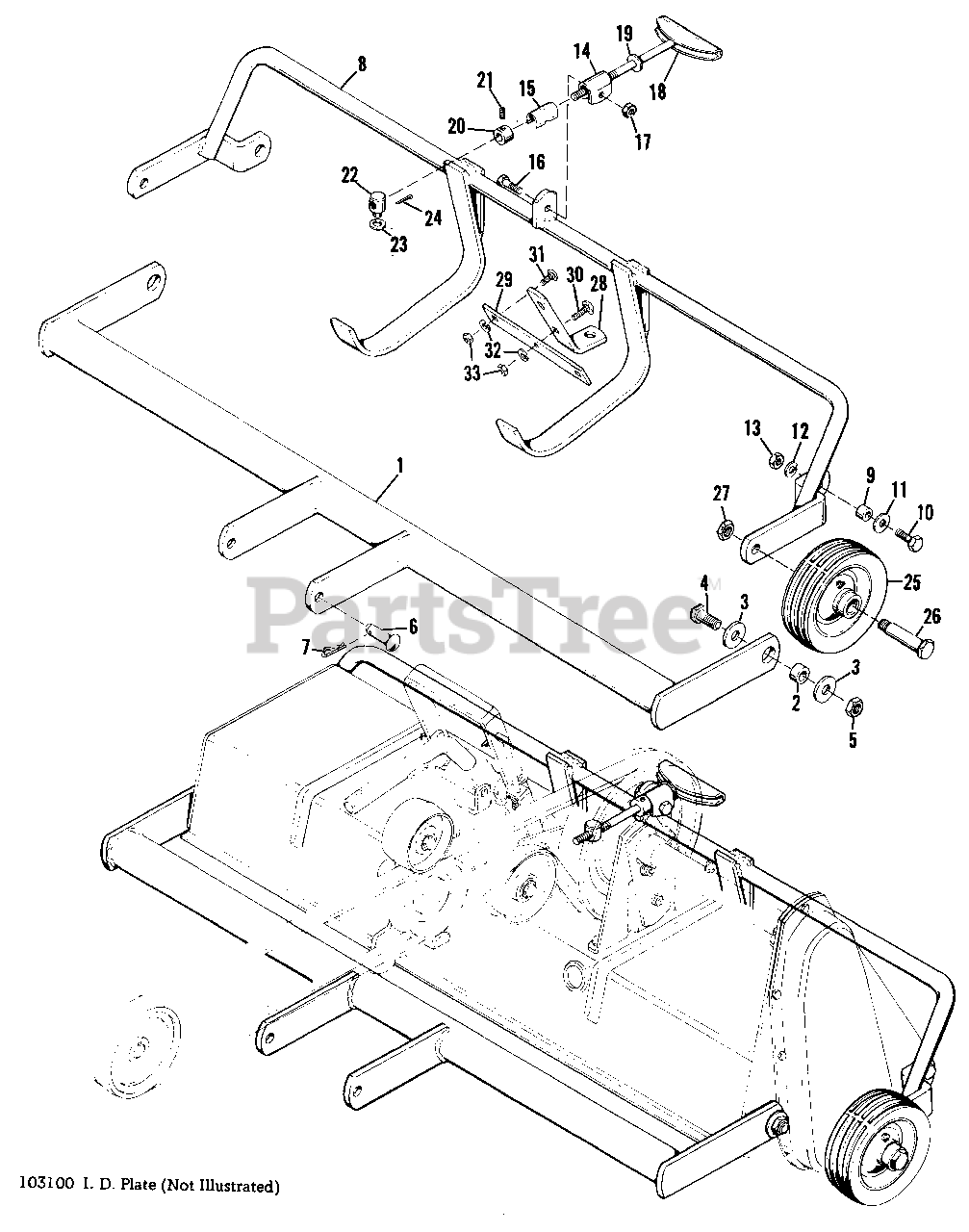

HITCH AND HEIGHT ADJUSTMENT Parts Diagram

  • Title

1

Simplicity 172260

Hitch Assembly

$

$

Not available

2

Simplicity 2105386SM

Spacer

$32.99

$

Usually ships in 2-12 days

0

3

Simplicity 2719004

Plain Washer, 1/2"

$

$

Not available

4

Simplicity 2705049

Hex Capscrew, 1/2"-13 x 1-1/4" lg.

$

$

Not available

5

Simplicity 2717518

Hex Nut, Full Lock, 1/2"-13

$

$

Not available

6

Simplicity 2155037SM

Pin

$12.99

$

Usually ships in 2-12 days

0

7

Simplicity 2106787

Spring Clip

$

$

Not available

8

Simplicity 172271

Adjuster Assembly

$

$

Not available

9

Snapper 2118335SM

Spacer

$8.99

$

Usually ships in 2-12 days

0

10

Simplicity 2705016

Hex Capscrew 3/8"-16 x 1-1/4" lg.

$

$

Not available

11

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

12

Simplicity 2720002

Lock Washers, 3/8"

$

$

Not available

13

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

14

Simplicity 2152050SM

Rod Guide

$10.99

$

Usually ships in 2-12 days

0

15

Simplicity 2121175SM

Guide Liner

$8.49

$

Usually ships in 2-12 days

0

16

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4" lg.

$

$

Not available

17

Simplicity 2717511

Hex Nut, Full Lock, 5/16"-18

$

$

Not available

18

Simplicity 2108415

Adjusting Screw Assembly

$

$

Not available

19

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

20

Simplicity 105201

Set Collar

$

$

Not available

21

Simplicity 2713505

Set Screw, 1/4"-20 x 5/16" lg.

$

$

Not available

22

Simplicity 108172

Pivot

$

$

Not available

23

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

24

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

25

Simplicity 172676

Wheel & Tire Assembly

$

$

Not available

26

Simplicity 172682

Wheel Bolt

$

$

Not available

27

Simplicity 2717519

Hex Nut, Full, Lock, 7/16"-14

$

$

Not available

28

Simplicity 172317

Tow Bar

$

$

Not available

29

Simplicity 172316

Tow Bar Reinforcer

$

$

Not available

30

Simplicity 2702024

Carriage Bolt, 5/16"-18 x 1" lg.

$

$

Not available

31

Simplicity 2702015

Carriage Bolt, 5/16"-18 x 3/4" lg.

$

$

Not available

32

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

33

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

34

Simplicity 103031

Decal (Safety) Not Illustrated

$

$

Not available

35

Simplicity 2153166

Decal (Simplicity) Not Illustrated

$

$

Not available

35

Simplicity 103100

I.D. Plate

Note: Not Illustrated

$

$

Not available
