990694 - Simplicity 36" Rotary Tiller Attachment HOUSING GROUP Parts Diagram

36" Rotary Tiller Attachment

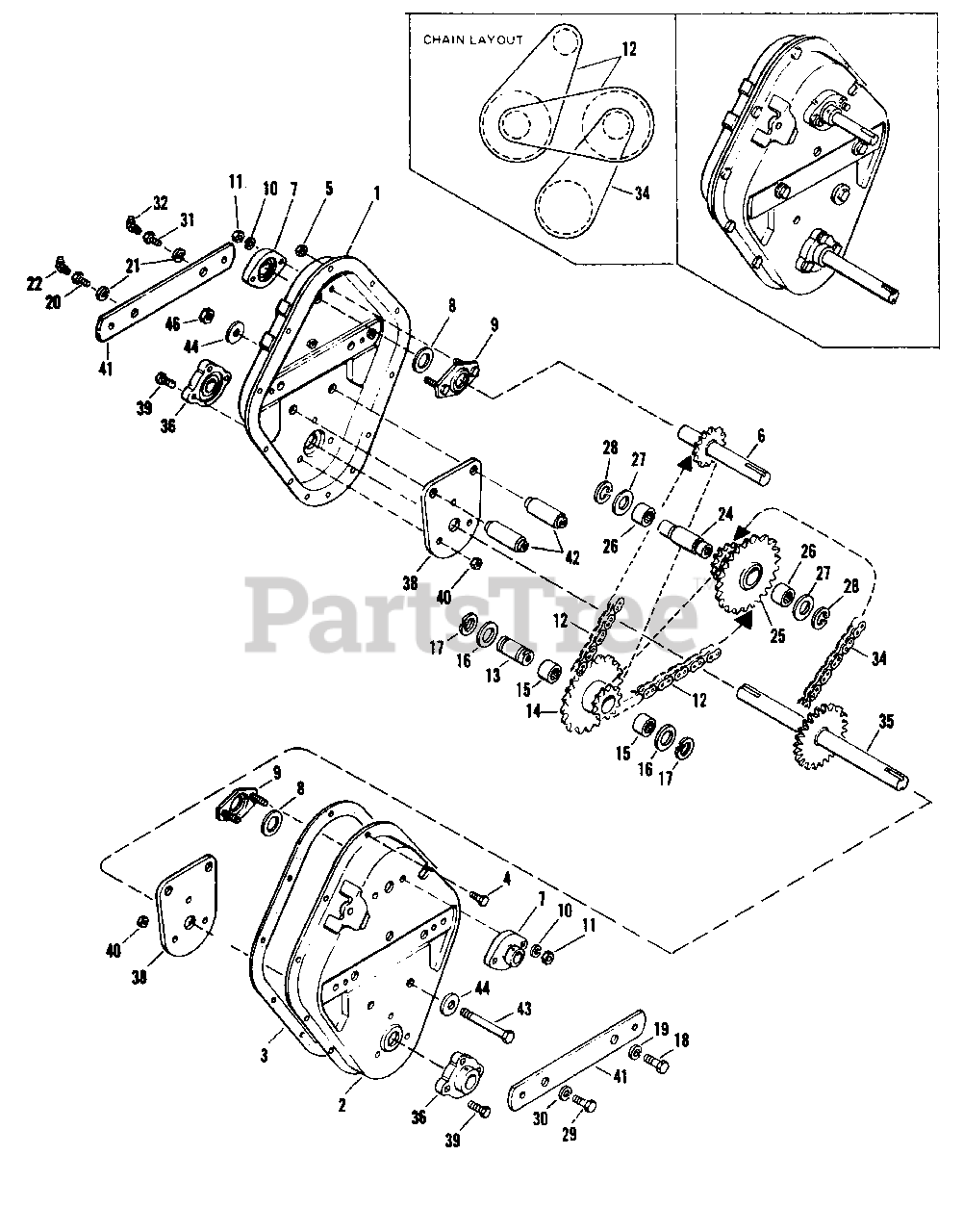

HOUSING GROUP Parts Diagram

  • Title

1

Simplicity 2105366ASM

Half Case Assembly, R.H.

$182.99

$

Usually ships in 2-12 days

0

2

Simplicity 2105367ASM

Half Case Assembly, L.H.

$182.99

$

Usually ships in 2-12 days

0

3

Simplicity 2105373SM

Gasket

$42.99

$

In Stock, Qty 8

0

4

Simplicity 2705012

Hex. Capscrew, 5/16"-18 x 5/8"

$

$

Not available

5

Simplicity 2717511

Full Hex. Locknut, 5/16"-18

$

$

Not available

6

Simplicity 2105298SM

Pulley Shaft Assembly

$71.99

$

Usually ships in 2-12 days

0

7

Simplicity 2105311SM

Bearing

$131.99

$

Usually ships in 2-12 days

0

8

Simplicity 2105365SM

Seal

$4.99

$

In Stock, only 2 left!

0

9

Simplicity 105313

Upper Bearing Plate Assembly

$

$

Not available

10

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

11

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

12

Simplicity 2105336SM

Chain

$29.99

$

Usually ships in 2-12 days

0

13

Simplicity 2105292SM

Inter. Spacer

$51.99

$

Usually ships in 2-12 days

0

14

Simplicity 2105291SM

Sprocket Assembly

$216.99

$

Usually ships in 2-12 days

0

15

Simplicity 2105195SM

Roller Bearing

$34.99

$

Usually ships in 2-12 days

0

16

Simplicity 2860208SM

Washer

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 2105194

Retaining Ring

$

$

Not available

18

Simplicity 2706022

Hex. Capscrew (L.H.Side), 1/2"-20 x 1-1/4"

$

$

Not available

19

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

20

Simplicity 2105132SM

Bolt, (R.H. Side)

$18.99

$

Usually ships in 2-12 days

0

21

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

22

Simplicity 2727004

Grease Fitting

$

$

Not available

23

Simplicity 2105363SM

Grease Cap

Note: Not Shown

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 2105192SM

Inter. Spacer

$110.99

$

Usually ships in 2-12 days

0

25

Simplicity 1650975SM

Sprocket Assembly

$259.99

$

Usually ships in 2-12 days

0

26

Simplicity 2105195SM

Roller Bearing

$34.99

$

Usually ships in 2-12 days

0

27

Simplicity 2860208SM

Washer

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 2105194

Retaining Ring

$

$

Not available

29

Simplicity 2706022

Hex. Capscrew (L.H. Side), 1/2"-20 x 1-1/4"

$

$

Not available

30

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

31

Simplicity 2105132SM

Bolt (R.H. Side)

$18.99

$

Usually ships in 2-12 days

0

32

Simplicity 2727004

Grease Fitting

$

$

Not available

33

Simplicity 2105363SM

Grease Cap

Note: Not Shown

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 2178174SM

Chain

$86.99

$

Usually ships in 2-12 days

0

35

Simplicity 2178177SM

Tine Shaft Assembly

$277.99

$

In Stock, only 1 left!

0

36

Simplicity 2105309SM

Bearing

$158.99

$

In Stock, only 2 left!

0

38

Simplicity 1669298SM

Reinf. Plate

$53.99

$

Usually ships in 2-12 days

0

39

Simplicity 2715091

Thread Forming Screw, 3/8"-16 x 1-1/2"

$

$

Not available

40

Simplicity 2717524

Hex. Jam Locknut, 3/8"-16

$

$

Not available

41

Simplicity 2105320ASM

Side Bar, 3/16" x 2" x 13-1/16"

$

$

Not available

42

Simplicity 2105360SM

Spacer, 1" x 7/32" x 3-1/32"
(Superseded to 2105360ASM)

$14.99

$

Usually ships in 2-12 days

0

43

Simplicity 2715180

Hex. Capscrew, 1/2"-13 x 4"

$

$

Not available

44

Simplicity 2719004

Plain Washer, 1/2"

$

$

Not available

46

Simplicity 2718063

Flange Locknut, 1/2-13

$

$

Not available
