990694 - Simplicity 36" Rotary Tiller Attachment TILLER DRIVE GROUP Parts Diagram

36" Rotary Tiller Attachment

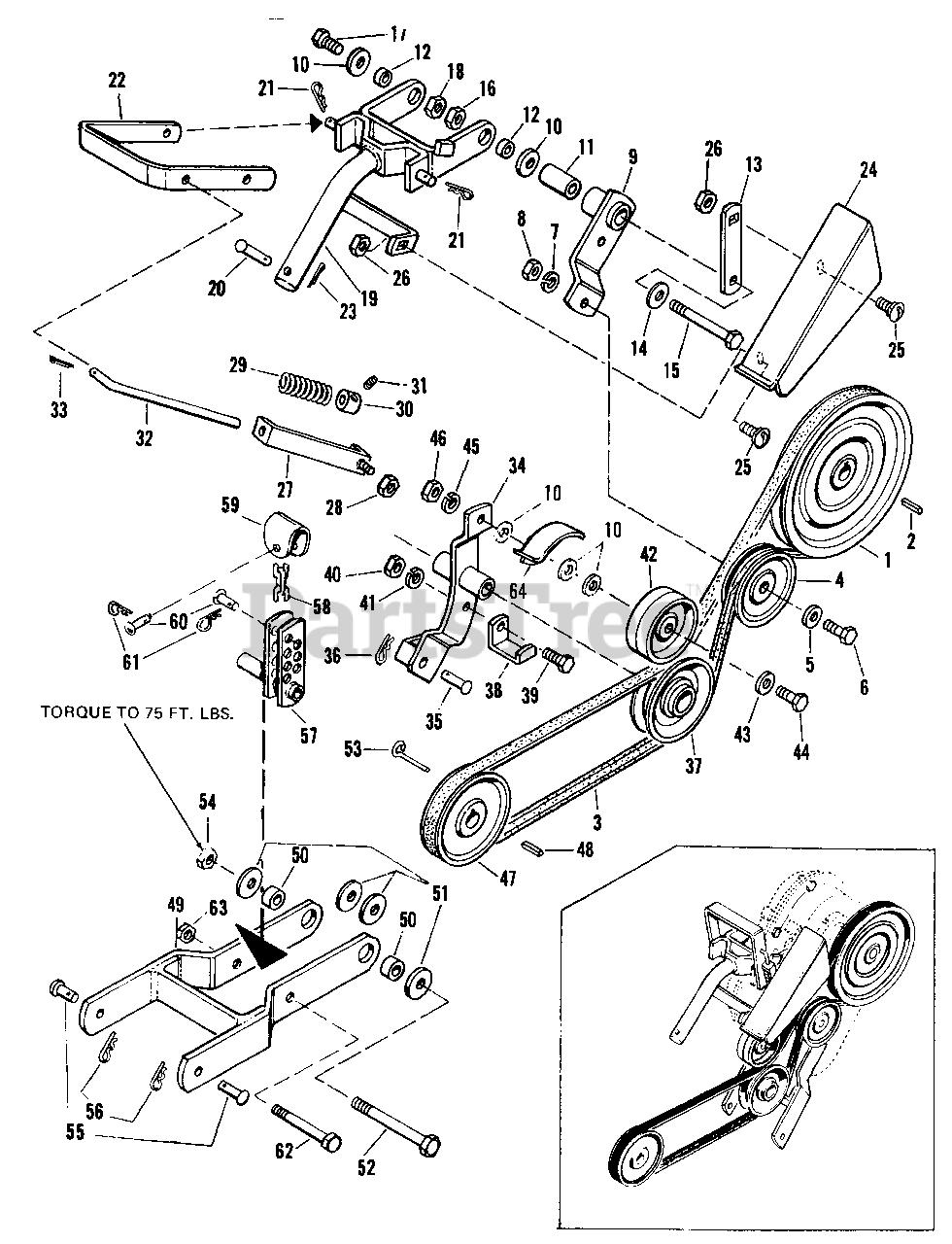

TILLER DRIVE GROUP Parts Diagram

  • Title

1

Simplicity 2105302SM

Pulley

$142.99

$

Usually ships in 2-12 days

0

2

Simplicity 2157427SM

Key

$5.49

$

In Stock, only 1 left!

0

3

Simplicity 2105340SM

"V" Belt, Sovereign Tractor

$54.99

$

In Stock, only 1 left!

0

4

Simplicity 2105306

Pulley

$

$

Not available

5

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

6

Simplicity 2705016

Hex. Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

7

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

8

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

9

Simplicity 2105295ASM

Clutch Lever Assembly

$61.99

$

Usually ships in 2-12 days

0

10

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

11

Simplicity 2105339ASM

Spacer

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 2105346SM

Spacer

$28.99

$

In Stock, only 1 left!

0

13

Simplicity 2105359ASM

Rear Support Belt Guard

$5.49

$

Usually ships in 2-12 days

0

14

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

15

Simplicity 2715181

Hex. Capscrew, Gr. 8, 7/16"-14 x 3-1/2"

$

$

Not available

16

Simplicity 2718073

Flange Locknut, 7/16-14

$

$

Not available

17

Simplicity 714182

Hex. Capscrew, Gr. 8, 7/16"-14 x 1-1/4"

$

$

Not available

18

Simplicity 2718073

Flange Locknut, 7/16-14

$

$

Not available

19

Simplicity 105329

Lift Bar Assembly

$

$

Not available

20

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

21

Simplicity 2106787

Spring Clip

$

$

Not available

22

Simplicity 105303

Clutch Handle

$

$

Not available

23

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

24

Simplicity 2105326A

Belt Guard

$

$

Not available

25

Simplicity 703011

Carriage Bolt, 5/16"-18 x 1/2"

$7.99

$

Usually ships in 2-12 days

0

26

Simplicity 2718033

Nut Whiz Lock, 5/16"-18

$

$

Not available

27

Simplicity 2158406

Rod Guide Assembly

$

$

Not available

28

Simplicity 2717511

Full Hex. Nut Lock, 5/16"-18

$

$

Not available

29

Simplicity 1729277SM

Spring

$6.99

$

Usually ships in 2-12 days

0

30

Simplicity 1729276SM

Set Collar

$

$

Not available

31

Simplicity 2713001

Cup Pt. Sq. Hd. Setscrew, 1/4"-20 x 3/8"

$

$

Not available

32

Simplicity 105343

Clutch Rod

$

$

Not available

33

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

34

Simplicity 2105322

Arm Idler Assembly

$

$

Not available

35

Simplicity 2156306SM

Pin

$7.49

$

In Stock, Qty 20+

0

36

Simplicity 2106787

Spring Clip

$

$

Not available

37

Simplicity 2105380SM

Idler Pulley

$152.99

$

Usually ships in 2-12 days

0

38

Simplicity 2105351SM

Belt Guard, 1/8 x 1 x 4-1/8"

$

$

Not available

39

Simplicity 2705031

Hex. Capscrew, 3/8"-16 x 7/8"

$

$

Not available

40

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

41

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

42

Simplicity 2164083

Idler Pulley

$

$

Not available

43

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

44

Simplicity 2705010

Hex. Capscrew, 3/8"-16 x 1-3/4"

$

$

Not available

45

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

46

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

47

Simplicity 2164202SM

Pulley

$61.99

$

Usually ships in 2-12 days

0

48

Simplicity 2805850SM

Key

$2.49

$

Usually ships in 2-12 days

0

49

Simplicity 2105328

Frame Assembly

$

$

Not available

50

Simplicity 2105386SM

Spacer

$31.99

$

Usually ships in 2-12 days

0

51

Simplicity 2719004

Plain Washer, 1/2"

$

$

Not available

52

Simplicity 2715183

Hex Capscrew, 1/2"-13 x 5"

$

$

Not available

53

Simplicity 2167032SM

Belt Stop Gr. 8

$31.99

$

Usually ships in 2-12 days

0

54

Simplicity 2718063

Full Hex. Locknut, 1/2"-13 N.C.

$

$

Not available

55

Simplicity 2155037SM

Pin

$12.99

$

In Stock, only 1 left!

0

56

Simplicity 2106788

Spring Clip

$

$

Not available

57

Simplicity 172639

Depth Limit Bracket Assy.

$

$

Not available

58

Simplicity 2107031SM

Chain
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

59

Simplicity 108200

Chain Clip

$

$

Not available

60

Simplicity 2156306SM

Pin

$7.49

$

In Stock, Qty 20+

0

61

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

62

Simplicity 2705066

Hex. Capscrew, 3/8"-16 x 4-1/2"

$

$

Not available

63

Simplicity 2717510

Hex. Nut, Full Lock, 3/8-16 x 1-3/4

$

$

Not available

64

Simplicity 2176366ASM

Guard Assembly

$39.99

$

Usually ships in 2-12 days

0
