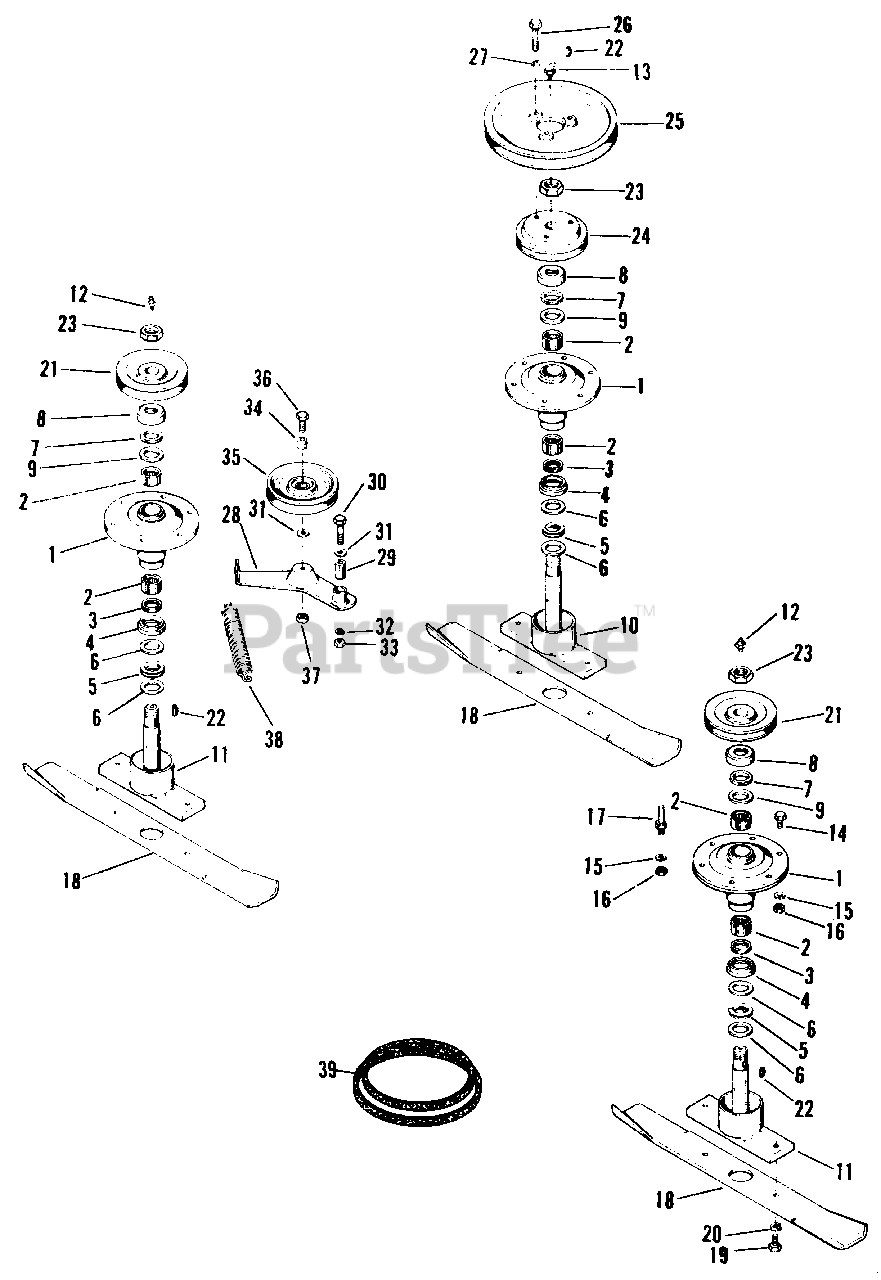

990698 - Simplicity 60" Mower Deck ARBORS & BLADES Parts Diagram

60" Mower Deck

ARBORS & BLADES Parts Diagram

  • Title

1

Simplicity 2172596SM

Arbor Tube Assembly
(Superseded to 2172596ASM)

$467.99

$

Usually ships in 2-12 days

0

2

Simplicity 2105195SM

Roller Bearing

$34.99

$

In Stock, only 2 left!

0

3

Simplicity 2172588SM

Seal

$9.99

$

In Stock, only 1 left!

0

4

Simplicity 2172587SM

Seal Cup

$40.99

$

Usually ships in 2-12 days

0

5

Simplicity 2172584SM

Spring

$5.49

$

In Stock, only 2 left!

0

6

Simplicity 2172586SM

Washer

$9.49

$

In Stock, Qty 5

0

7

Simplicity 2172590SM

Thrust Bearing

$13.99

$

In Stock, only 3 left!

0

8

Simplicity 2172585SM

Cup

$21.99

$

Usually ships in 2-12 days

0

9

Simplicity 2172589SM

Thrust Washer

$16.99

$

In Stock, only 2 left!

0

10

Simplicity 2172576SM

Center Arbor Assembly

$167.99

$

Usually ships in 2-12 days

0

11

Simplicity 2172577SM

Side Arbors Assembly

$216.99

$

Usually ships in 2-12 days

0

12

Simplicity 2727002

Grease Fitting

$

$

Not available

13

Simplicity 2727006

Grease Fitting

$

$

Not available

14

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

15

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

16

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

17

Simplicity 2156131SM

Stud

$

$

Not available

18

Simplicity 2172741ASM

BLADE, 21"

$29.99

$

In Stock, only 2 left!

0

19

Simplicity 2715120

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

20

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

21

Simplicity 2172575SM

Pulley

$98.99

$

Usually ships in 2-12 days

0

22

Simplicity 2830672SM

Key

$5.49

$

In Stock, only 3 left!

0

23

Simplicity 2717523

Hex Nut, Jam, Lock, 7/8"

$

$

Not available

24

Simplicity 2175295SM

Pulley

$164.99

$

Usually ships in 2-12 days

0

25

Simplicity 175296

Pulley

$

$

Not available

26

Simplicity 2705006

Hex Capscrew, 3/8"-16 x 2"

$

$

Not available

27

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

28

Simplicity 2172601SM

Idler Lever Assembly
(Superseded to 2172601ASM)

$109.99

$

Usually ships in 2-12 days

0

29

Simplicity 1729274SM

Inner Race

$13.99

$

Usually ships in 2-12 days

0

30

Simplicity 2705010

Hex Capscrew, 3/8"-16 x 1-3/4" lg.

$

$

Not available

31

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

32

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

33

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

34

Simplicity 2170291

Spacer

$

$

Not available

35

Simplicity 2172930SM

Idler Pulley

$76.99

$

Usually ships in 2-12 days

0

36

Simplicity 2108497

Special Screw

$

$

Not available

37

Simplicity 2717524

Hex Nut, Jam, Lock, 3/8"-16

$

$

Not available

38

Simplicity 2108449SM

Spring

$36.99

$

Usually ships in 2-12 days

0

39

Simplicity 2172444SM

V-BELT, 116.1"

$74.99

$

Usually ships in 2-12 days

0
