990698 - Simplicity 60" Mower Deck DECK & COVERS Parts Diagram

60" Mower Deck

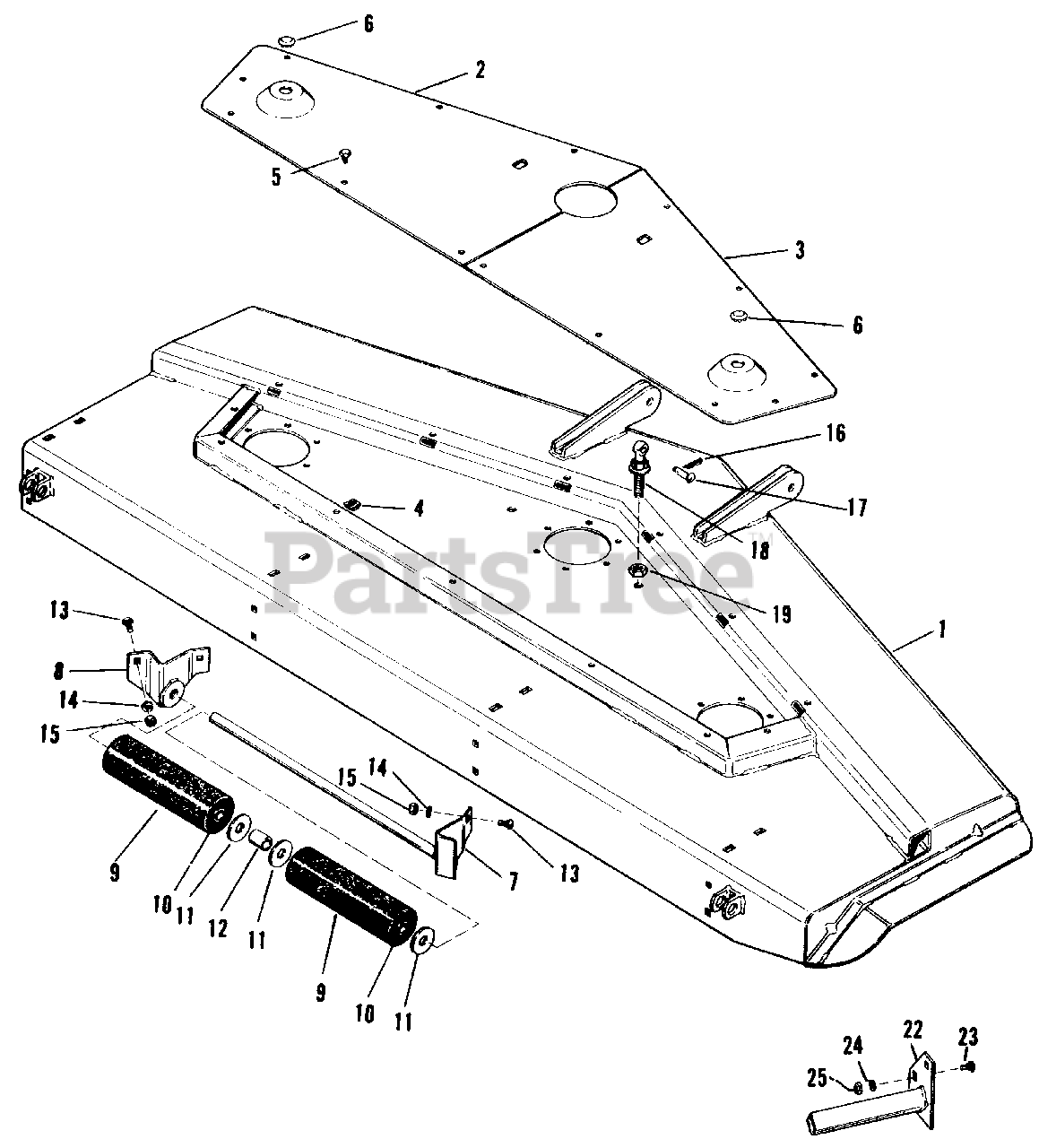

DECK & COVERS Parts Diagram

  • Title

1

Simplicity 172560

Deck Assembly

$

$

Not available

2

Simplicity 172642

Cover Plate, L.H.

$

$

Not available

3

Simplicity 172968

Cover Plate, R.H.

$

$

Not available

4

Simplicity 718058

Clip Nut

$

$

Not available

5

Simplicity 2172427

Self Tapping Screw, 5/16"-12

$

$

Not available

6

Simplicity 172971

Plug Button

$

$

Not available

7

Simplicity 2172606

Bracket & Shaft Assy.

$

$

Not available

8

Simplicity 2173270ASM

Bracket Assembly

$49.99

$

Usually ships in 2-12 days

0

9

Simplicity 2175729

Roller w/Bushing

$

$

Not available

10

Simplicity 2108419

Bushing

$

$

Not available

11

Simplicity 2116001

Washer

$

$

Not available

12

Simplicity 123025

Hub

$

$

Not available

13

Simplicity 2702015

Carriage Bolt 5/16"-18 x 3/4" lg.

$

$

Not available

14

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

15

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

16

Simplicity 2106787

Spring Clip

$

$

Not available

17

Simplicity 2108158

Pin

$

$

Not available

18

Simplicity 2176887

Eyebolt Assembly

$

$

Not available

19

Simplicity 2717519

Hex Nut, Jam. 7/16"-14

$

$

Not available

22

Simplicity 173551

Stone Guard Assembly

$

$

Not available

23

Simplicity 2702002

Carriage Bolt, 3/8"-16 x l" lg.

$

$

Not available

24

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

25

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available
