990700 - Simplicity 42" Grader Blade 42" GRADER BLADE Parts Diagram

42" Grader Blade

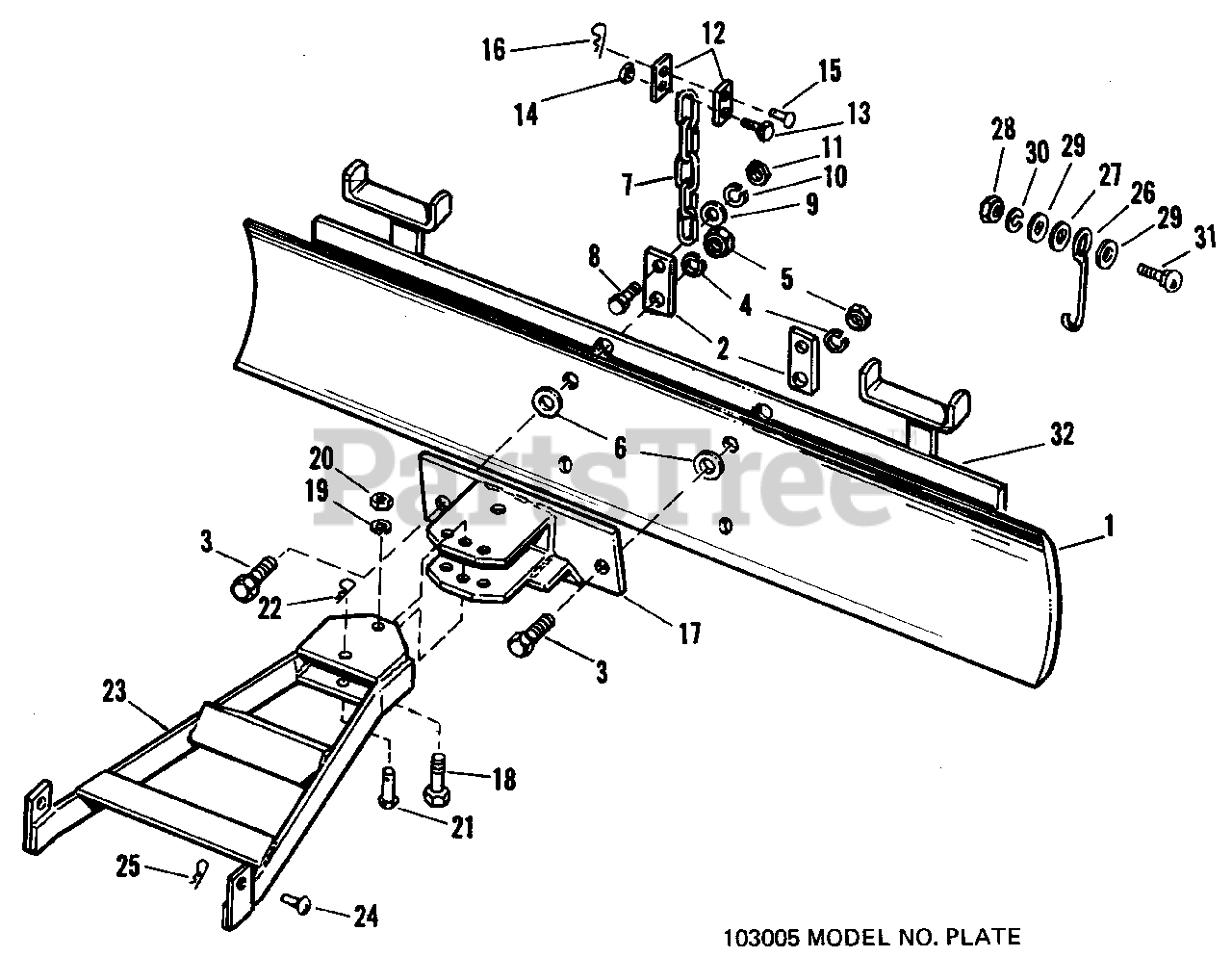

42" GRADER BLADE Parts Diagram

  • Title

1

Simplicity 107056

Grader Blade

$

$

Not available

2

Simplicity 107057

Link

$

$

Not available

3

Simplicity 2705056

Hex Capscrew, 5/8"-11 x 3" lg.

$

$

Not available

4

Simplicity 2720005

Lock Washer, 5/8"

$

$

Not available

5

Simplicity 2717004

Hex Nut, Full, 5/8"-11

$

$

Not available

6

Simplicity 2121210SM

Washer

$1.99

$

Usually ships in 2-12 days

0

7

Simplicity 2107031SM

Chain
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

8

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

9

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

10

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

11

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

12

Simplicity 108199

Link

$

$

Not available

13

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

14

Simplicity 2717510

Hex Nut, Full, Lock, 3/8"-16

$

$

Not available

15

Simplicity 1708298SM

Pin

$

$

Not available

16

Simplicity 816104

Spring Clip

$

$

Not available

17

Simplicity 107058

Hitch Assembly

$

$

Not available

18

Simplicity 2705056

Hex Capscrew, 5/8"-16 x 3" lg.

$

$

Not available

19

Simplicity 2720005

Lock Washer, 5/8"

$

$

Not available

20

Simplicity 2717004

Hex Nut, Full, 5/8"-16

$

$

Not available

21

Simplicity 1729275SM

Pin

$18.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960033SM

Spring Clip

$3.49

$

In Stock, only 1 left!

0

23

Simplicity 107062

Draw Bar Assembly

$

$

Not available

24

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

25

Simplicity 2106788

Spring Clip

$

$

Not available

26

Simplicity 108551

Hook

$

$

Not available

27

Simplicity 2159134

Nylon Washer

$

$

Not available

28

Simplicity 2717530

Hex Nut, Jam, 5/16"-18

$

$

Not available

29

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

30

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

31

Simplicity 2702008

Carriage Bolt, 5/16"-18 x 1-1/4" lg.

$

$

Not available

32

Simplicity 172738

Bracket Assy.

$

$

Not available

32

Simplicity 173334

I.D. Plate No.

$

$

Not available
