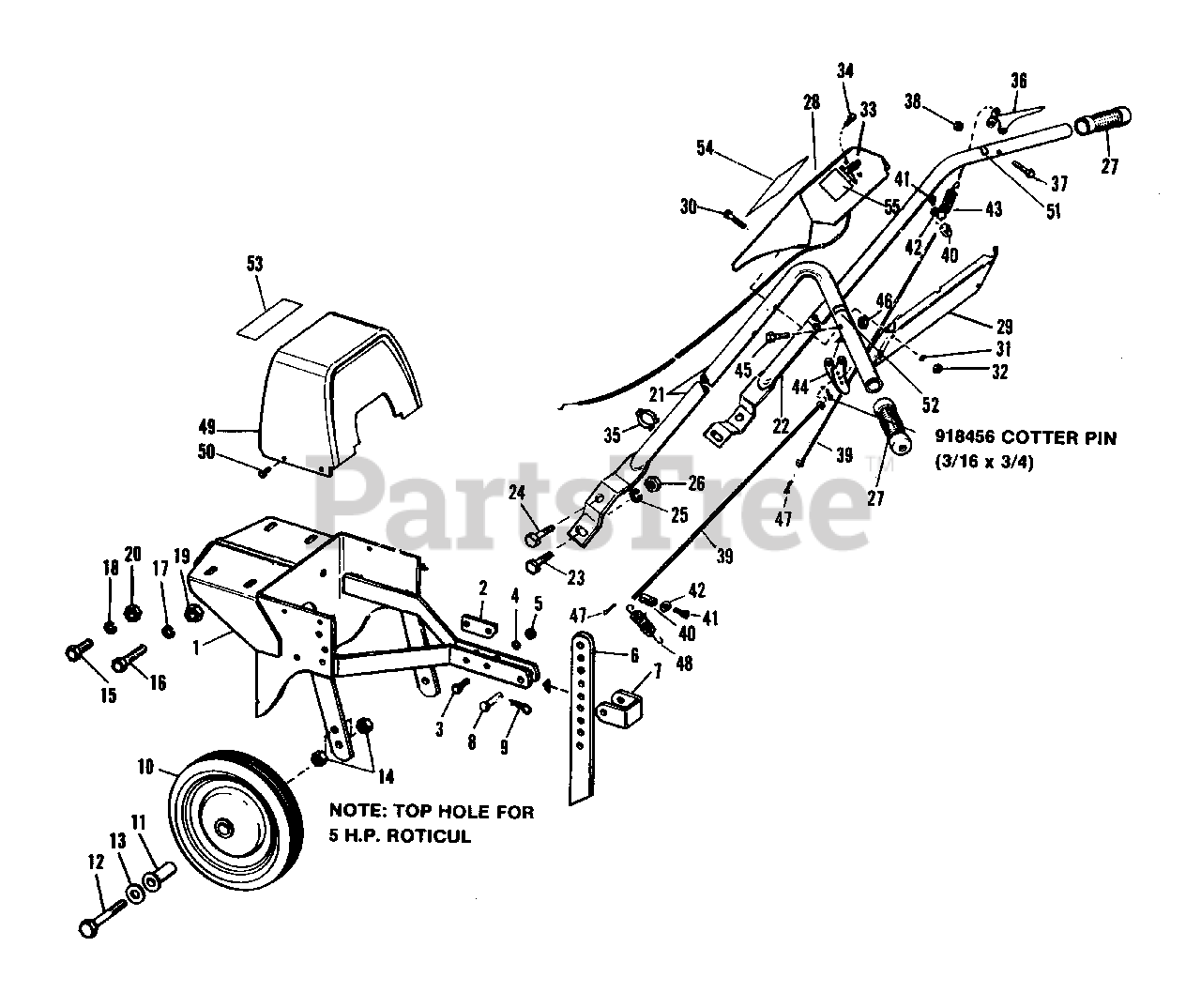

990702 - Simplicity Roticul Reversing Tiller, 3hp Frame, Handles & Controls Parts Diagram

Roticul Reversing Tiller, 3hp

Frame, Handles & Controls Parts Diagram

  • Title

1

Simplicity 170879

BODY ASSY

$

$

Not available

2

Simplicity 2827557

PLATE, Stop

$

$

Not available

3

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

5

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

6

Simplicity 118081

BAR, Depth

$

$

Not available

7

Simplicity 118447

CLAMP

$

$

Not available

8

Simplicity 2105249SM

PIN, Inner

$16.99

$

Usually ships in 2-12 days

0

9

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

10

Simplicity 118469

WHEEL & TIRE ASSY

$

$

Not available

11

Simplicity 2118132SM

BUSHING, Wheel

$

$

Not available

12

Simplicity 920207

CAPSCREW, Hex, 1/2-13 x 3

$

$

Not available

13

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

14

Simplicity 2813744

NUT, Hex, Jam, 1/2-13

$

$

Not available

15

Simplicity 2808127

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

16

Simplicity 2828038

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

17

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

18

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

19

Simplicity 913901

NUT, Hex, Full, 7/16-20

$

$

Not available

20

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

21

Simplicity 118466

HANDLE, L.H.

$

$

Not available

22

Simplicity 118467

HANDLE, R.H.

$

$

Not available

23

Simplicity 2817400

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

24

Simplicity 2828728

SCREW, Hex, Whiz Lock, 3/8-16 x 1

$

$

Not available

25

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

26

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

27

Simplicity 2106558

GRIP

$

$

Not available

28

Simplicity 170923

HOUSING ASSY, Control

$

$

Not available

29

Simplicity 2108298

COVER, Handle, Upper

$

$

Not available

30

Simplicity 2818240

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

31

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

32

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

33

Simplicity 172925

THROTTLE ASSY, Control

$

$

Not available

34

Simplicity 2823188

SCREW, Hex, Self-Tapping, 1/4-20 x 1/2

$

$

Not available

35

Simplicity 80611-08

CLIP, Cable

$

$

Not available

36

Simplicity 118431

GRIP, Clutch

$

$

Not available

37

Simplicity 2818240

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

38

Simplicity 2823358

NUT, Hex, Full Lock, 1/4-20

$

$

Not available

39

Simplicity 172924

ROD

$

$

Not available

40

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

41

Simplicity 928722

SETSCREW, Sq. Hd. #10-24 x 5/8

$

$

Not available

42

Simplicity 2823212

WASHER, Flat, #10

$

$

Not available

43

Simplicity 2121037SM

SPRING

$

$

Not available

44

Simplicity 118449

GRIP, Clutch

$

$

Not available

45

Simplicity 2818240

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

46

Simplicity 2823358

NUT, Hex, Full Lock, 1/4-20

$

$

Not available

47

Simplicity 2818458

PIN. Cotter, 3/16 x 1

$

$

Not available

48

Simplicity 2118495SM

SPRING

$5.99

$

Usually ships in 2-12 days

0

49

Simplicity 170359

COVER

$

$

Not available

50

Simplicity 2827428

SCREW, Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

51

Simplicity 118484

FILM, Tiller Clutch

$

$

Not available

52

Simplicity 118485

FILM, Tiller Clutch

$

$

Not available

53

Simplicity 155061

FILM, Simplicity

$

$

Not available

54

Simplicity 118482

EMBLEM, "S"

$

$

Not available

55

Simplicity 174796

DECAL, Throttle

$

$

Not available
