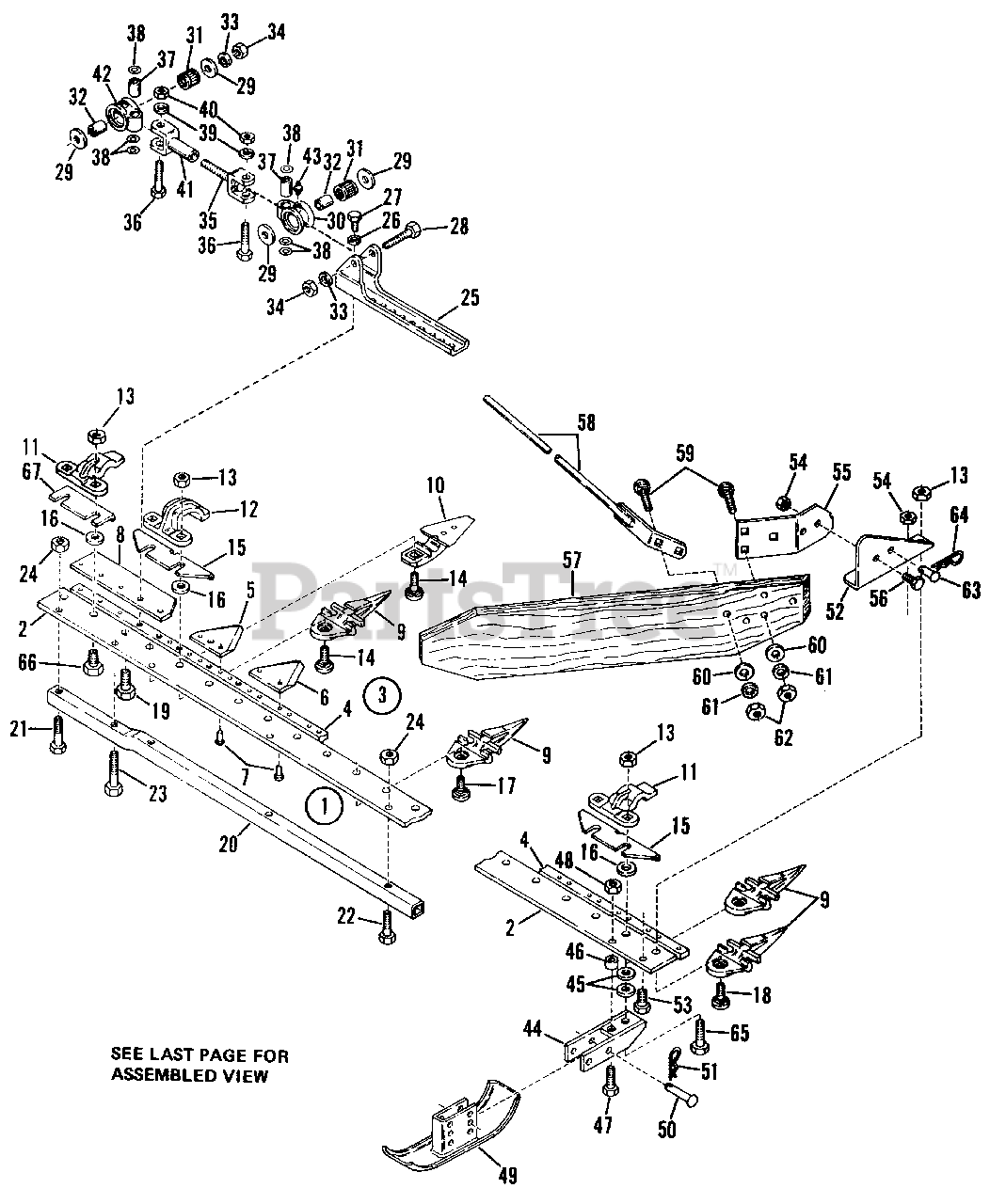

990707 - Simplicity 57" Sickle Bar > Parts Diagrams (2) > SICKLE ASSEMBLY

  • Title
174216

1

Cutter Bar Assembly (Incl. Ref. Nos. 2 thru 18)

Part# 174216

OEM Warranty Repair Part for Simplicity

Not available

174188

2

BAR, Cutter

Part# 174188

OEM Warranty Repair Part for Simplicity

Not available

174201

3

Blade Assembly (Incl. Ref. Nos. 4 thru 8)

Part# 174201

OEM Warranty Repair Part for Simplicity

Not available

174202

4

Bar

Part# 174202

OEM Warranty Repair Part for Simplicity

Not available

174203

5

SECTION, Knife

Part# 174203

OEM Warranty Repair Part for Simplicity

Not available

174535

6

SECTION, Knife

Part# 174535

OEM Warranty Repair Part for Simplicity

Not available

724701

7

Rivet

Part# 724701

OEM Warranty Repair Part for Simplicity

Not available

173559

8

BAR, Filler

Part# 173559

OEM Warranty Repair Part for Simplicity

Not available

174536

9

Guard

Part# 174536

OEM Warranty Repair Part for Simplicity

Not available

174541

10

Shear Finger Assembly

Part# 174541

OEM Warranty Repair Part for Simplicity

Not available

174537

11

CLIP, Bar

Part# 174537

OEM Warranty Repair Part for Simplicity

Not available

174538

12

CLIP, Bar

Part# 174538

OEM Warranty Repair Part for Simplicity

Not available

2717519

13

Full Lock Hex. Nut, 7/16"-14 N.C.

Part# 2717519

OEM Warranty Repair Part for Simplicity

Not available

ORG-702019

14

Carriage Bolt, 7/16"-14 x 1-1/2"

Part# ORG-702019

OEM Warranty Repair Part for Simplicity

Currently unavailable

174539

15

PLATE, Wear

Part# 174539

OEM Warranty Repair Part for Simplicity

Not available

174540

16

WASHER, Plain

Part# 174540

OEM Warranty Repair Part for Simplicity

Not available

702025

17

Carriage Bolt, 7/16"-14 x 1" lg.

Part# 702025

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $15.93

702028

18

CAP, Fuel Tank

Part# 702028

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.35

2715092

19

Hex. Capsrew, Gr. 5, 7/16"-14 x 1-1/4"

Part# 2715092

OEM Warranty Repair Part for Simplicity

Not available

174183

20

TUBE, Square

Part# 174183

OEM Warranty Repair Part for Simplicity

Not available

2715036

21

Hex Cap Screw, 3/8"-16 N.C. x 2-1/4" SAE Grade 5

Part# 2715036

OEM Warranty Repair Part for Simplicity

Not available

2705010

22

Screw, Cap, Hex., 3/8"-16 N.C. x 1-3/4" lg.

Part# 2705010

OEM Warranty Repair Part for Simplicity

Not available

2715160

23

Hex Head Capscrew, 3/8"-16 x 2-3/4"

Part# 2715160

OEM Warranty Repair Part for Simplicity

Not available

2717510

24

Nut, Lock, Hex Hd., Full, 3/8"-l6 N.C.

Part# 2717510

OEM Warranty Repair Part for Simplicity

Not available

174191

25

HEAD, Sickle

Part# 174191

OEM Warranty Repair Part for Simplicity

Not available

2720001

26

Lockwasher, External 1/4" (Mfg. Nos. 953 & 954)

Part# 2720001

OEM Warranty Repair Part for Simplicity

Not available

2715088

27

Hex Head Capscrew, 5/16"-24 x 3/4"

Part# 2715088

OEM Warranty Repair Part for Simplicity

Not available

715149

28

Hex Head Capscrew

Part# 715149

OEM Warranty Repair Part for Simplicity

Not available

173141

29

WASHER

Part# 173141

OEM Warranty Repair Part for Simplicity

Not available

8161196

30

HOUSING, Pitman Bearing

Part# 8161196

OEM Warranty Repair Part for Simplicity

Not available

2157678SM

31

BEARING, Needle (Pitman)

Part# 2157678SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $28.23

173177

32

Spacer

Part# 173177

OEM Warranty Repair Part for Simplicity

Not available

2720006

33

Lockwasher 7/16" Henry #918199

Part# 2720006

OEM Warranty Repair Part for Simplicity

Not available

2717022

34

Nut-Hex.-Full 7/16"-14 N.C. Henry #918213

Part# 2717022

OEM Warranty Repair Part for Simplicity

Not available

173530

35

Clevis Assembly

Part# 173530

OEM Warranty Repair Part for Simplicity

Not available

715161

36

Crankshaft

Part# 715161

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $204.63

1729273SM

37

BEARING, Pivot Block

Part# 1729273SM

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $61.77

2101025SM

38

WASHER, 5/8

Part# 2101025SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.02

2720002

39

Lockwasher, 3/8" (Mfg. Nos. 920 & 953)

Part# 2720002

OEM Warranty Repair Part for Simplicity

Not available

2717003

40

Nut-Hex.-Full 3/8"-16 N.C. Henry #916950

Part# 2717003

OEM Warranty Repair Part for Simplicity

Not available

173529

41

Clevis Assembly

Part# 173529

OEM Warranty Repair Part for Simplicity

Not available

174322

42

HOUSING, Bearing Pitman

Part# 174322

OEM Warranty Repair Part for Simplicity

Not available

2727002

43

Fitting, Grease, Alemite No. 1641

Part# 2727002

OEM Warranty Repair Part for Simplicity

Not available

174194

44

Support Assembly

Part# 174194

OEM Warranty Repair Part for Simplicity

Not available

2719001

45

Plain Washer, 5/16" (Mfg. Nos. 953 & 954)

Part# 2719001

OEM Warranty Repair Part for Simplicity

Not available

174206

46

Spacer

Part# 174206

OEM Warranty Repair Part for Simplicity

Not available

2705009

47

SCREW, Hexagon Head Cap 3/8"-16 N.C. x 1-1/2" Large

Part# 2705009

OEM Warranty Repair Part for Simplicity

Not available

2717510

48

Nut, Lock, Hex Hd., Full, 3/8"-l6 N.C.

Part# 2717510

OEM Warranty Repair Part for Simplicity

Not available

174181

49

Shoe Assembly

Part# 174181

OEM Warranty Repair Part for Simplicity

Not available

2105249SM

50

PIN, Round Head Drilled, 3/8 x 2-3/8

Part# 2105249SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $12.63

2106787

51

CLIP, Spring (Serviced in 5 pk)

Part# 2106787

OEM Warranty Repair Part for Simplicity

Not available

174393

52

Bracket

Part# 174393

OEM Warranty Repair Part for Simplicity

Not available

2705005

53

CAPSCREW, 7/16"-20 NF x 3/4" Hex Head, Large

Part# 2705005

OEM Warranty Repair Part for Simplicity

Not available

2717510

54

Nut, Lock, Hex Hd., Full, 3/8"-l6 N.C.

Part# 2717510

OEM Warranty Repair Part for Simplicity

Not available

174557

55

SUPPORT, Divider Board

Part# 174557

OEM Warranty Repair Part for Simplicity

Not available

108766

56

Bolt, Carriage, 3/8"-16 NC x 1" lg.

Part# 108766

OEM Warranty Repair Part for Simplicity

Not available

101078

57

BOARD, Divider

Part# 101078

OEM Warranty Repair Part for Simplicity

Not available

101079

58

Divider Rod Assembly

Part# 101079

OEM Warranty Repair Part for Simplicity

Not available

2702005

59

Bolt, Carriage, 3/8"-16 NC x 1-1/2" lg.

Part# 2702005

OEM Warranty Repair Part for Simplicity

Not available

2719001

60

Plain Washer, 5/16" (Mfg. Nos. 953 & 954)

Part# 2719001

OEM Warranty Repair Part for Simplicity

Not available

2720002

61

Lockwasher, 3/8" (Mfg. Nos. 920 & 953)

Part# 2720002

OEM Warranty Repair Part for Simplicity

Not available

2717003

62

Nut-Hex.-Full 3/8"-16 N.C. Henry #916950

Part# 2717003

OEM Warranty Repair Part for Simplicity

Not available

1708298SM

63

Pin, 3/8" dia. x 1" lg., Round Head Rivet

Part# 1708298SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.86

2106787

64

CLIP, Spring (Serviced in 5 pk)

Part# 2106787

OEM Warranty Repair Part for Simplicity

Not available

705064

65

Hex Capscrew. 7/16"-14 x 2" lg.

Part# 705064

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $70.38

2715080

66

Hex. Cap Screw, 7/16"-14 x 1-1/2"

Part# 2715080

OEM Warranty Repair Part for Simplicity

Not available

174368

67

PLATE, Wear

Part# 174368

OEM Warranty Repair Part for Simplicity

Not available
