990730 - Simplicity 400 lb. Front End Loader Frame and Hydraulics Group - Lift (3689I01) Parts Diagram

400 lb. Front End Loader

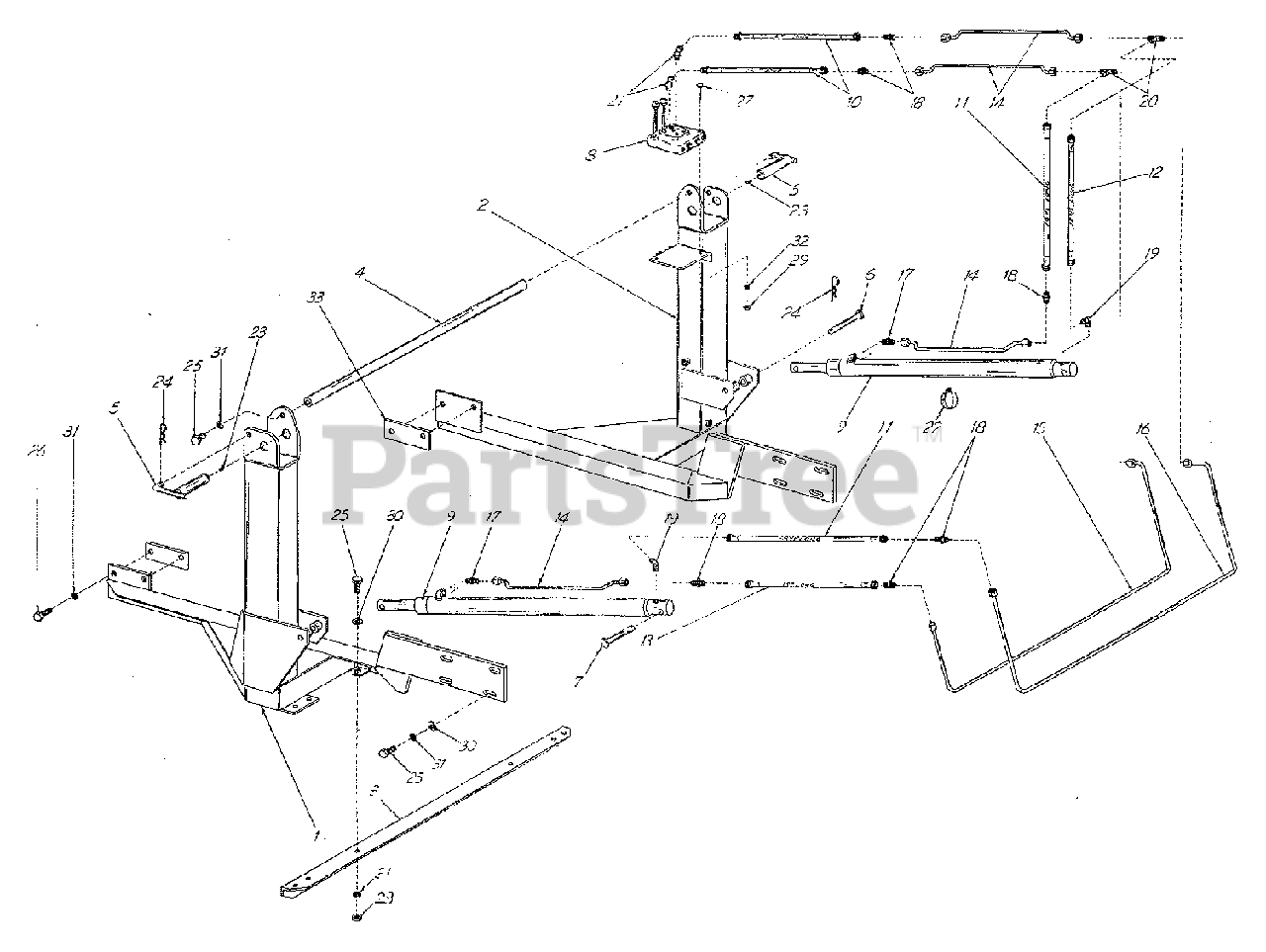

Frame and Hydraulics Group - Lift (3689I01) Parts Diagram

  • Title

1

Simplicity 4722

SIDE FRAME RH WELDED ASSEMBLY

$

$

Not available

2

Simplicity 44723

SIDE FRAME LH WELDED ASSEMBLY (Reservoir)

$

$

Not available

3

Simplicity 4725

BOTTOM SUPPORT ANGLE

$

$

Not available

4

Simplicity 4724

BAR, Support

$

$

Not available

5

Simplicity 4727

PIN, Lock

$

$

Not available

6

Simplicity 4734

PIN

$

$

Not available

7

Simplicity 4735

PIN

$

$

Not available

8

Simplicity 4167

HYDRAULIC VALVE

$8.99

$

Usually ships in 2-12 days

0

9

Simplicity 4733

HYDRAULIC CYLINDER

$

$

Not available

10

Simplicity 1810-85

HYDRAULIC HOSE, 1/4 ID x 16-1/2" Long

$

$

Not available

11

Simplicity 1810-72

HYDRAULIC HOSE, 1/4 ID x 18-1/2" Long

$

$

Not available

12

Simplicity 1810-81

HYDRAULIC HOSE, 1/4 ID x 13-1/2" Long

$

$

Not available

13

Simplicity 1810-82

HYDRAULIC HOSE, 1/4 ID x 15 " Long

$

$

Not available

14

Simplicity 4740

HYDRAULIC TUBE ASSEMBLY

$

$

Not available

15

Simplicity 4743

HYDRAULIC TUBE ASSEMBLY

$

$

Not available

16

Simplicity 4744

HYDRAULIC TUBE ASSEMBLY

$

$

Not available

17

Simplicity 4738

STRAIGHT ADAPTER

$

$

Not available

18

Simplicity 4749

STRAIGHT ADAPTER

$

$

Not available

19

Simplicity 4339

ELBOW ADAPTER, 90 Degrees

$

$

Not available

20

Simplicity 4337

UNION TEE

$

$

Not available

21

Simplicity 3536

UNION ADAPTER, 45 Degrees

$

$

Not available

22

Simplicity 4340

HOSE CLAMP

$

$

Not available

23

Simplicity 1123-2

FITTING, Grease, 45 Degrees

$

$

Not available

24

Simplicity 2124-3

PIN, Hair, #3
(Superseded to 5021243)

$84.99

$

Usually ships in 2-12 days

0

25

Simplicity 1111-29

BOLT, 1/2 NC x 1-1/4 Hex Head Capscrew

$

$

Not available

26

Simplicity 1111-89

BOLT, 1/2 NC x 2" Hex Head Capscrew

$

$

Not available

27

Simplicity 1111-85

BOLT, 1/4 NC x 2" Hex head Capscrew

$

$

Not available

28

Simplicity 1112-5

NUT, 1/2 NC Hex
(Superseded to 7011125YP)

$11.99

$

Usually ships in 2-12 days

0

29

Simplicity 1112-14

NUT, 1/4 NC Hex

$

$

Not available

30

Simplicity 1113-29

WASHER, 1/2 Plain Standard

$

$

Not available

31

Simplicity 1113-5

WASHER, 1/2 Lock
(Superseded to 7060341YP)

$199.99

$

Usually ships in 2-12 days

0

32

Simplicity 1113-20

WASHER, 1/4 Lock

$

$

Not available

33

Simplicity 4806

REAR SPACER PLATE

$

$

Not available
