990730 - Simplicity 400 lb. Front End Loader Frame and Hydraulics Group - Main (3689I02) Parts Diagram

400 lb. Front End Loader

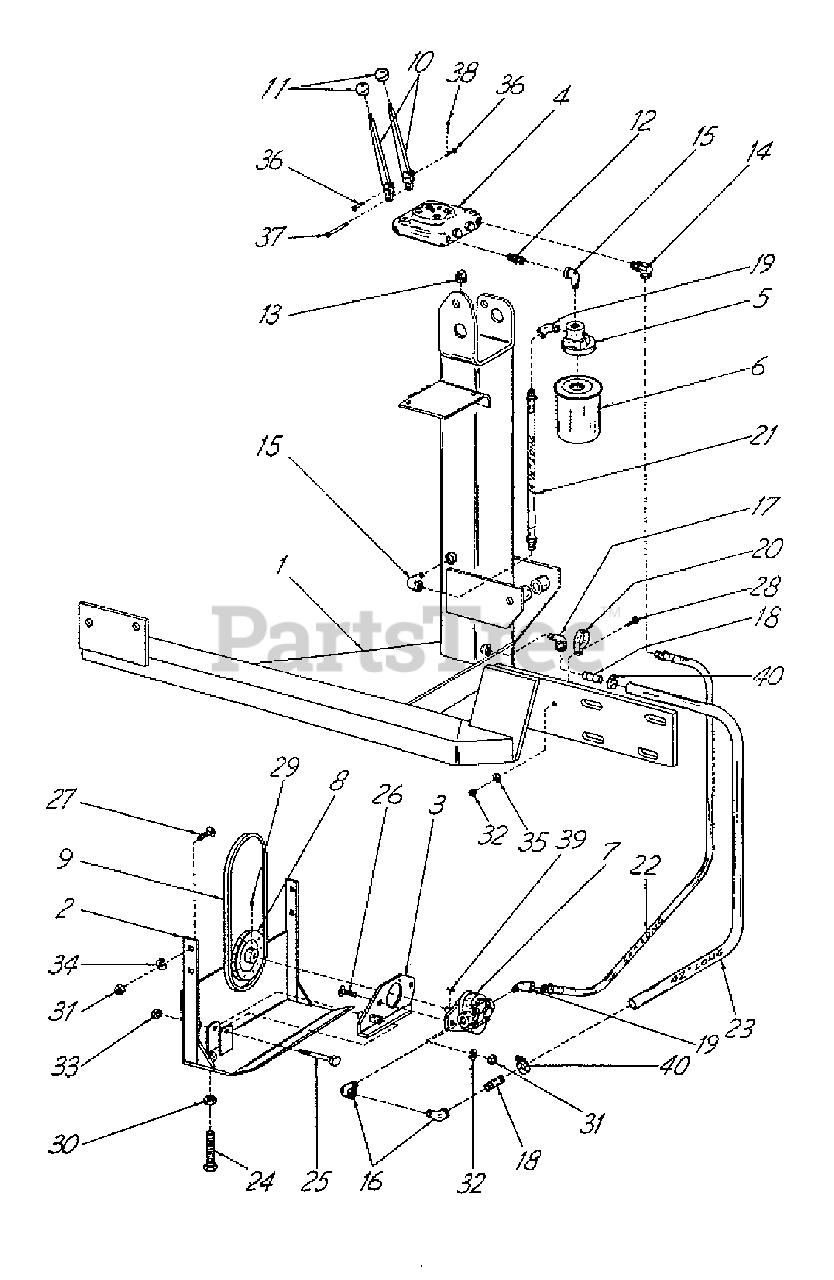

Frame and Hydraulics Group - Main (3689I02) Parts Diagram

  • Title

1

Simplicity 4723

SIDE FRAME LH WELDED ASSEMBLY

$

$

Not available

2

Simplicity 4728

WELDED ASSEMBLY, Pump Mounting Bracket

$

$

Not available

3

Simplicity 4729

WELDED ASSEMBLY, Pump Adjustment Bracket

$

$

Not available

4

Simplicity 4167

VALVE, Hydaulic

$8.99

$

Usually ships in 2-12 days

0

5

Simplicity 4333

FILTER, Oil

$

$

Not available

6

Simplicity 4343

CARTRIDGE, Replaceable

$

$

Not available

7

Simplicity 4720

PUMP, Hydraulic

$

$

Not available

8

Simplicity 4731

SHEAVE, w/Setscrew

$

$

Not available

9

Simplicity 1176-41

BELT

$

$

Not available

10

Simplicity 4325

HANDLE, Control Valve

$

$

Not available

11

Simplicity 4326

KNOB, Plastic Valve

$

$

Not available

12

Simplicity 4358

STRAIGHT ADAPTER W/O Ring

$

$

Not available

13

Simplicity 3700-10

BREATHER ASSEMBLY

$

$

Not available

14

Simplicity 3081

ADAPTER, Union 90 Degrees

$

$

Not available

15

Simplicity 1821-7

STREET ELL, 90 Degrees x 3/8 NPT

$

$

Not available

16

Simplicity 1821-6

STREET ELL, 90 Degrees x 1/2 NPT

$

$

Not available

17

Simplicity 1821-28

STREET ELL, 90 Degrees x 1/2 NPT

$

$

Not available

18

Simplicity 1821-29

PIPE NIPPLE, 2" Long x 1/2 NPT

$

$

Not available

19

Simplicity 1821-34

STREET ELL, 45 Degrees x 3/8 NPT

$

$

Not available

20

Simplicity 4739

CLAMP, Hose

$

$

Not available

21

Simplicity 1810-87

HYDRAULIC HOSE, 3/8 ID x 14-1/2" Long

$

$

Not available

22

Simplicity 1810-86

HYDRAULIC HOSE, 3/8 ID x 54" Long

$

$

Not available

23

Simplicity 1810-88

HYDRAULIC HOSE, 3/4 ID x 42" Long

$

$

Not available

24

Simplicity 1111-23

BOLT, 1/2 NC x 2" Hex Head Capscrew

$

$

Not available

25

Simplicity 111-131

BOLT, 3/8 NC x 3-1/4 Hex Head Capsrew

$

$

Not available

26

Simplicity 1111-196

BOLT, 3/8 NC x 1-1/4 Carriage

$

$

Not available

27

Simplicity 1111-72

BOLT, 3/8 NC x 1" Carriage

$

$

Not available

28

Simplicity 1111-27

BOLT, 5/16 NC x 1" Hex Head Capscrew

$

$

Not available

29

Simplicity 1111-220

SETSCREW, 5/16 NC x 5/16 Socket Head

$

$

Not available

30

Simplicity 1112-5

NUT, 1/2 NC Plain Hex
(Superseded to 7011125YP)

$11.99

$

Usually ships in 2-12 days

0

31

Simplicity 1112-7

NUT, 3/8 NC Plain Hex
(Superseded to 7060332YP)

$73.99

$

Usually ships in 2-12 days

0

32

Simplicity 1112-9

NUT, 5/16 NC Plain Hex

$

$

Not available

33

Simplicity 1112-51

NUT, 3/8 NC Stover Lock

$

$

Not available

34

Simplicity 1113-8

WASHER, 3/8 Lock
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 15

0

35

Simplicity 1113-10

WASHER, 5/16 Lock

$

$

Not available

36

Simplicity 1121-38

CLEVIS PIN, Short

$

$

Not available

37

Simplicity 1121-39

CLEVIS PIN, Long

$

$

Not available

38

Simplicity 1124-18

PIN, Cotter, 3/32 x 1/2" Long

$

$

Not available

39

Simplicity 2741-212

KEY

$

$

Not available

40

Simplicity 4746

CLAMP, Hose

$

$

Not available
