990730 - Simplicity 400 lb. Front End Loader Hydraulic Group - Cylinder (3689I06) Parts Diagram

400 lb. Front End Loader

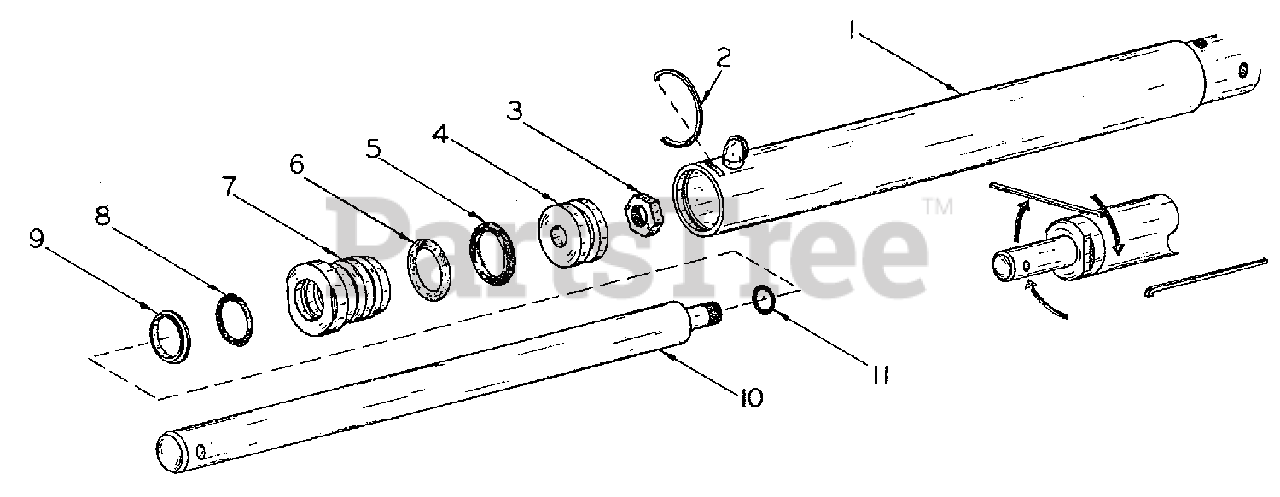

Hydraulic Group - Cylinder (3689I06) Parts Diagram

  • Title

-

Simplicity 4733

HYDRAULIC CYLINDER COMPLETE (Lift)

$

$

Not available

-

Simplicity 4736

HYDRAULIC CYLINDER COMPLETE (Dump)

$

$

Not available

1

Simplicity 4733-1

BARREL ASSEMBLY (Lift)

$

$

Not available

1

Simplicity 4736-1

BARREL ASSEMBLY (Dump)
(Superseded to 5047361B)

$826.99

$

Usually ships in 2-12 days

0

2

Simplicity 4331-2

WIRE, Locking
(Superseded to 5043312)

$

$

Not available

3

Simplicity 4331-3

NUT, Piston
(Superseded to 5043313)

$

$

Not available

4

Simplicity 4331-4

PISTON

$

$

Not available

5

Simplicity 4331-5

SEAL, O-Ring, Piston

$

$

Not available

6

Simplicity 4331-6

O-RING, Head

$

$

Not available

7

Simplicity 4331-7

HEAD

$

$

Not available

8

Simplicity 4331-8

SEAL, O-Ring, Head

$

$

Not available

9

Simplicity 4331-9

SHAFT, Seal
(Superseded to 5043319)

$84.99

$

Usually ships in 2-12 days

0

10

Simplicity 4733-2

SHAFT (Lift)

$

$

Not available

10

Simplicity 4736-2

SHAFT (Dump)

$

$

Not available

11

Simplicity 4331-11

GASKET, Piston

$

$

Not available

-

Simplicity 4331-12

SEAL REPAIR KIT

$

$

Not available
