990730 - Simplicity 400 lb. Front End Loader

400 lb. Front End Loader

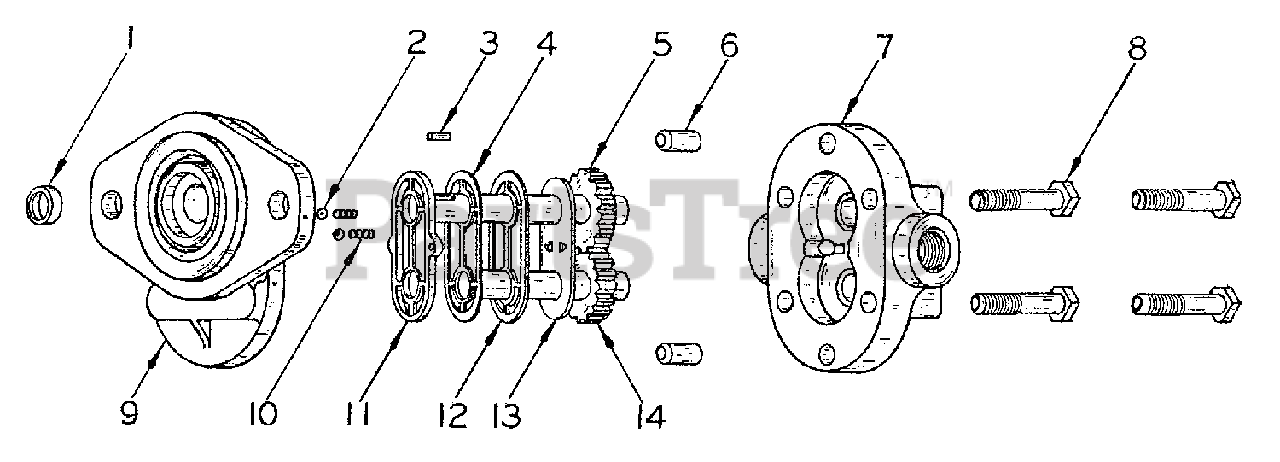

990730 - Simplicity 400 lb. Front End Loader > All Diagrams & Kits (6) > Hydraulic Group - Pump (3689I05)

  • Title
4720

-

HYDRAULIC PUMP COMPLETE

Part# 4720

OEM Warranty Repair Part for Simplicity

Not available

4166-10

1

SEAL, Shaft

Part# 4166-10

OEM Warranty Repair Part for Simplicity

Not available

4166-12

2

STEEL BALL, 3/16 Diameter

Part# 4166-12

OEM Warranty Repair Part for Simplicity

Not available

4166-13

3

KEY

Part# 4166-13

OEM Warranty Repair Part for Simplicity

Not available

4166-7

4

PROTECTOR GASKET

Part# 4166-7

OEM Warranty Repair Part for Simplicity

Not available

4166-3

5

DRIVE GEAR ASSEMBLY

Part# 4166-3 (Superseded to 7041663YP)

OEM Warranty Repair Part for Simplicity

Not available

4166-5

6

DOWEL PIN, 1/4 Diameter x 1/2 LG

Part# 4166-5

OEM Warranty Repair Part for Simplicity

Not available

4720-1

7

HOUSING ASSEMBLY

Part# 4720-1

OEM Warranty Repair Part for Simplicity

Not available

4166-14

8

CAPSCREW, 1/4-20 H.T. 1-3/4 LG

Part# 4166-14

OEM Warranty Repair Part for Simplicity

Not available

NLA - 4166-1

9

FRONT PLATE ASSEMBLY

Part# NLA - 4166-1

OEM Warranty Repair Part for Simplicity

Currently unavailable

4166-11

10

SPRING, Check

Part# 4166-11

OEM Warranty Repair Part for Simplicity

Not available

4166-6

11

DIAPHRAGM SEAL

Part# 4166-6

OEM Warranty Repair Part for Simplicity

Not available

4166-8

12

BACK-UP GASKET

Part# 4166-8 (Superseded to 5041668B)

OEM Warranty Repair Part for Simplicity

Not available

4166-9

13

DIAPHRAGM

Part# 4166-9

OEM Warranty Repair Part for Simplicity

Not available

4166-4

14

IDLER GEAR ASSEBMLY

Part# 4166-4

OEM Warranty Repair Part for Simplicity

Not available

4166-15

-

SEAL REPAIR KIT

Part# 4166-15

OEM Warranty Repair Part for Simplicity

Not available
