990730 - Simplicity 400 lb. Front End Loader Hydraulic Group - Valve (3689I04) Parts Diagram

400 lb. Front End Loader

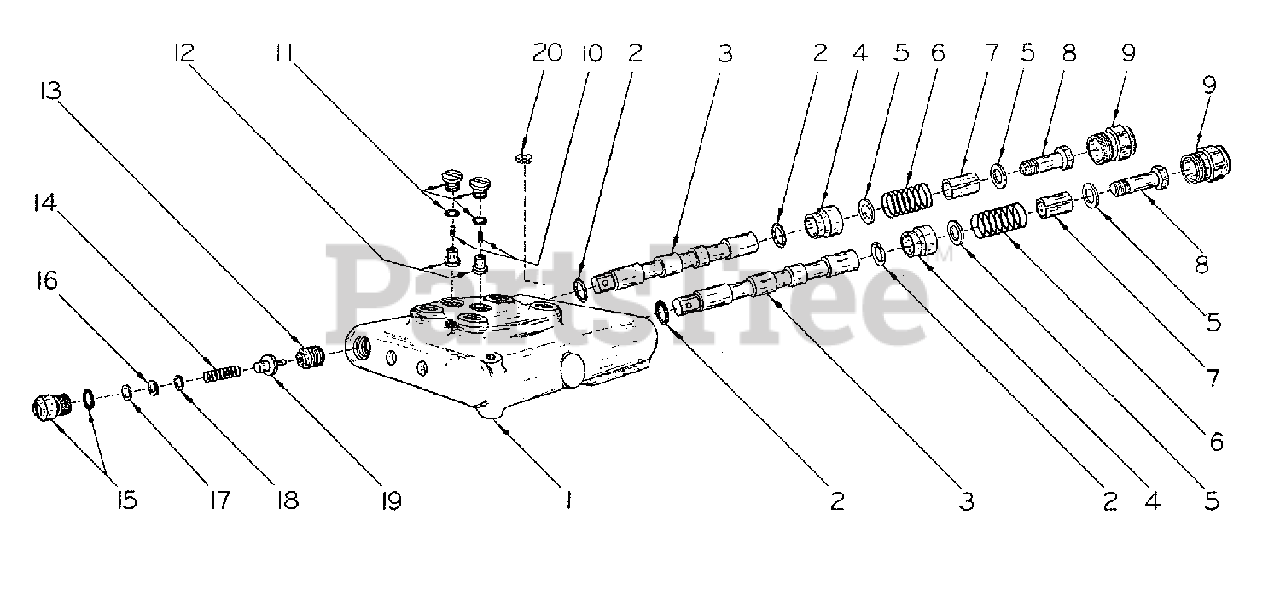

Hydraulic Group - Valve (3689I04) Parts Diagram

  • Title

1

Simplicity 4167-1

BODY
(Superseded to 5041671)

$9.49

$

Usually ships in 2-12 days

0

2

Simplicity 4167-5

RING, "O" 3/32 x 1/2 ID

$

$

Not available

3

Simplicity NLA - 4167-2

SPOOL, Standard

$

$

Currently unavailable

4

Simplicity 4167-6

BUSHING

$

$

Not available

5

Simplicity 4167-7

WASHER, Miscellaneous Steel
(Superseded to 7041677YP)

$103.99

$

Usually ships in 2-12 days

0

6

Simplicity 4167-8

SPRING, Spool

$

$

Not available

7

Simplicity 4167-9

SPACER, Spool

$

$

Not available

8

Simplicity 4167-10

SCREW, Spool

$

$

Not available

9

Simplicity 4167-3

CAP ASSEMBLY

$

$

Not available

10

Simplicity 4167-11

SPRING, Lift Check

$

$

Not available

11

Simplicity 4167-12

PLUG ASSEMBLY, Lift Check

$

$

Not available

12

Simplicity 4167-13

PLUNGER, Lift Check

$

$

Not available

13

Simplicity 4167-14

SEAT

$

$

Not available

14

Simplicity 4167-15

SPRING

$

$

Not available

15

Simplicity 4167-4

PLUG ASSEMBLY

$

$

Not available

16

Simplicity 4167-16

SHIM, .015 Thick

$

$

Not available

17

Simplicity 4167-17

SHIM, .010 Thick

$

$

Not available

18

Simplicity 4167-18

SHIM, .035 Thick

$

$

Not available

19

Simplicity 4167-19

POPPET

$

$

Not available

20

Simplicity 3072-12

RESTRICTOR

$

$

Not available

-

Simplicity 4167-20

SEAL REPAIR KIT

$

$

Not available
