990740 - Simplicity 48" Mower Deck ROLLER ASSEMBLY Parts Diagram

48" Mower Deck

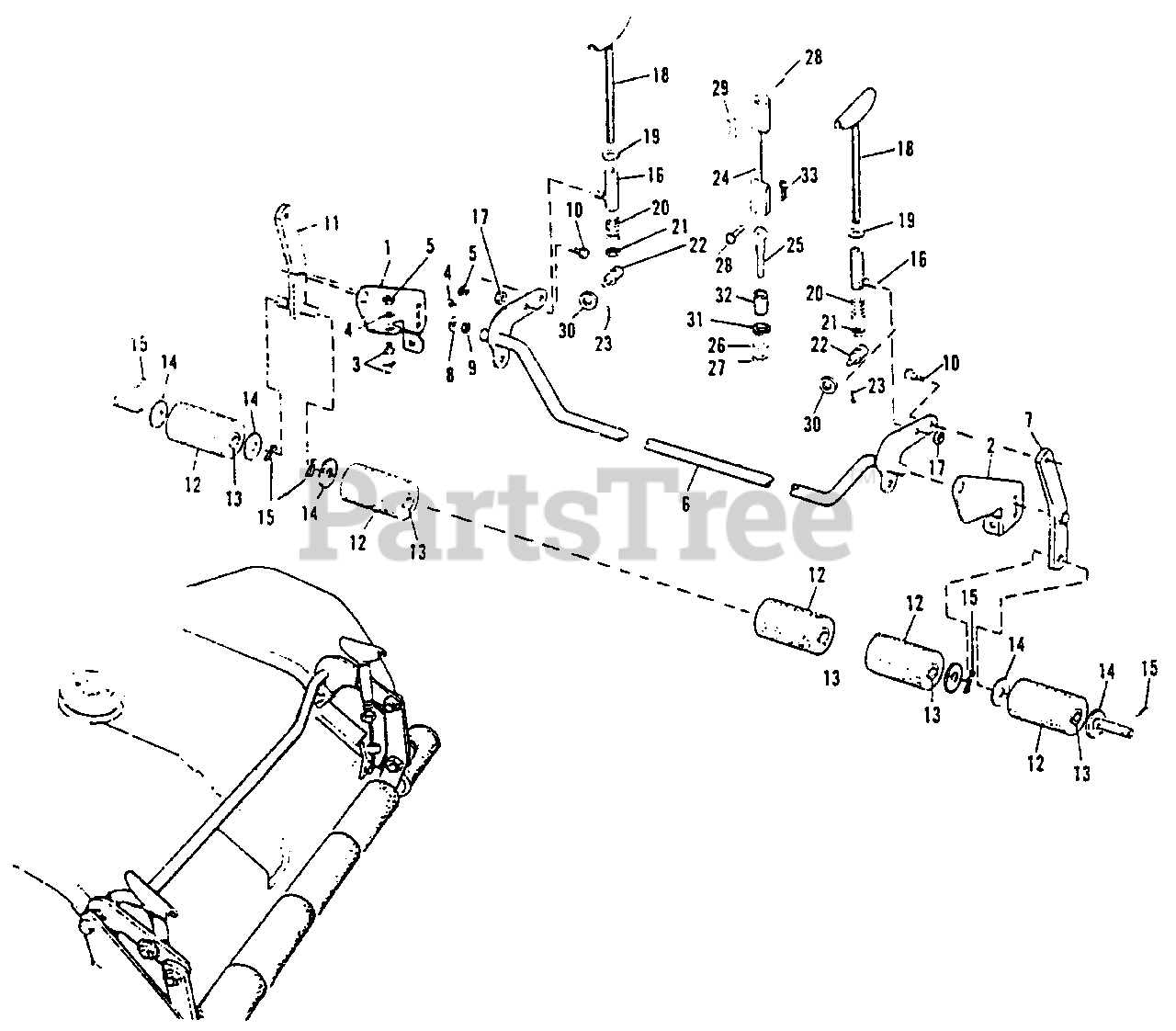

ROLLER ASSEMBLY Parts Diagram

  • Title

1

Simplicity 2172047SM

R.H. Roller Bracket
(Superseded to 2172047ASM)

$51.99

$

Usually ships in 2-12 days

0

2

Simplicity 2172046ASM

L.H. Roller Bracket

$103.99

$

Usually ships in 2-12 days

0

3

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

4

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

5

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

6

Simplicity 2172015ASM

Rocker Assembly Arm

$116.99

$

Usually ships in 2-12 days

0

7

Simplicity 2108465

Roller Bar Assembly L.H.

$

$

Not available

8

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

9

Simplicity 2717510

Full Hex. Nut, 3/8"-16

$

$

Not available

10

Simplicity 2705005

Hex. Cap Screw, 3/8"-16 x 1"

$

$

Not available

11

Simplicity 2172075

Roller Shaft Assembly

$

$

Not available

12

Simplicity 2108432SM

Roller W/Bushing

$36.99

$

In Stock, only 4 left!

0

13

Simplicity 2108419

Bushing

$

$

Not available

14

Simplicity 2116001

Washer

$

$

Not available

15

Simplicity 2722011

Cotter Pin, 3/16"-1"

$

$

Not available

16

Simplicity 2108241SM

Socket Crank Assembly
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

17

Simplicity 2717510

Full Hex. Nut. 3/16"-16

$

$

Not available

18

Simplicity 2108415

Adjusting Screw Assembly

$

$

Not available

19

Simplicity 2719001

Plain Washer 3/8"

$

$

Not available

20

Simplicity 2108360SM

Adjusting Screw Spring

$5.49

$

In Stock, only 1 left!

0

21

Simplicity 2717013

Hex. Jam Nut, 3/8"-16

$

$

Not available

22

Simplicity 2108512SM

Pivot

$36.99

$

In Stock, only 2 left!

0

23

Simplicity 2722016

Cotter Pin, 3/32" x 3/4"

$

$

Not available

24

Simplicity 172860

Cable Assembly, Lift

$

$

Not available

25

Simplicity 2171815SM

Eye Bolt

$54.99

$

Usually ships in 2-12 days

0

26

Simplicity 2720002

Washer, Lock, 3/8" Std.

$

$

Not available

27

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 NC

$

$

Not available

28

Simplicity 1708298SM

Pin

$

$

Not available

29

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

30

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

31

Simplicity 2719001

Plain Flat Washer 3/8"

$

$

Not available

32

Simplicity 172082

Spacer

$

$

Not available

33

Simplicity 2722001

Cotter Pin. 3/32" x 3/4"

$

$

Not available
