990745 - Simplicity 42" Snow Thrower Attachment 36" & 42" Snowthrower Parts Diagram

42" Snow Thrower Attachment

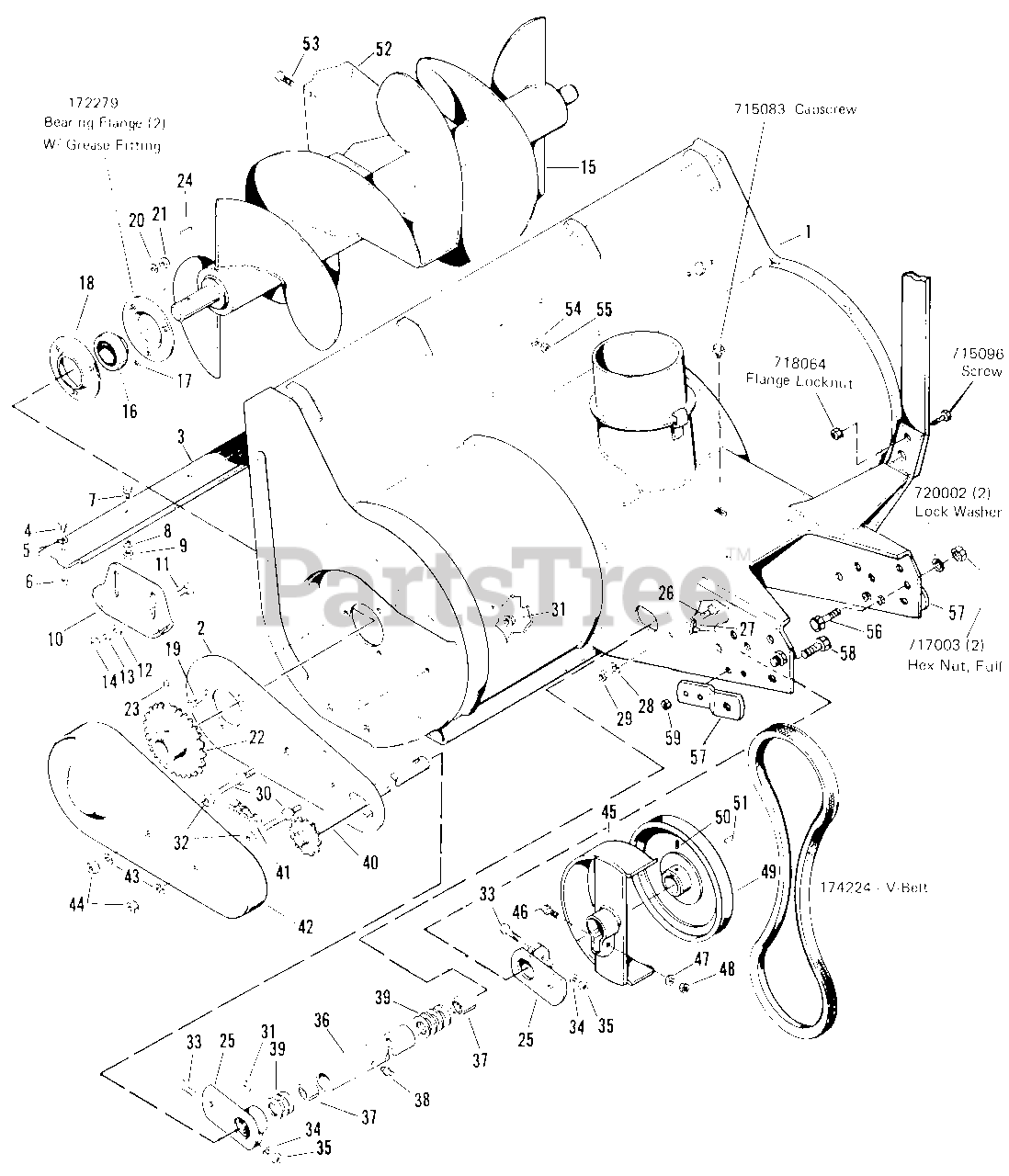

36" & 42" Snowthrower Parts Diagram

  • Title

1

Simplicity 2177737

Body Assembly

$

$

Not available

2

Simplicity 2171221

Side Plate

$

$

Not available

3

Simplicity 2106746ASM

Body Scraper

$158.99

$

In Stock, only 1 left!

0

4

Simplicity 2715071

Hex Capscrew, 5/16" 18 x 5/8"

$

$

Not available

5

Simplicity 2719006

Plain Washer l/4"

$

$

Not available

6

Simplicity 2717511

Hex Nut, Full Lock, 5/16"-18

$

$

Not available

7

Simplicity 2715018

Hex Capscrew, 1/4"-20x 5/8"

$

$

Not available

8

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

9

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

10

Simplicity 2177434C

Skid

$

$

Not available

11

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

12

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

13

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

14

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

15

Simplicity 2106748

Rotor Assembly

$

$

Not available

16

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

17

Simplicity 2713509

Set Screw, 1/4"-28 x 1/4"

$

$

Not available

18

Simplicity 2172278ASM

Bearing Flange

$11.99

$

In Stock, only 2 left!

0

19

Simplicity 2705017

Hex Capscrew 5/16-18 x 3/4

$

$

Not available

20

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

21

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

22

Simplicity 2106653SM

Rotor Sprocket

$98.99

$

Usually ships in 2-12 days

0

23

Simplicity 2713503

Set Screw, 5/16-18

$

$

Not available

24

Simplicity 2151040SM

Key

$9.49

$

In Stock, only 2 left!

0

25

Simplicity 176161

Clamp Support

$

$

Not available

26

Simplicity 2715096

Hex Capscrew, 3/8"-16 x 1"

$

$

Not available

27

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

28

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

29

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

30

Simplicity 106771

Stud

$

$

Not available

31

Simplicity 2718035

Nut, "Whiz Lock" 3/8"-16

$

$

Not available

32

Simplicity 2717510

Hex Nut, Full, Lock, 3/8"-16

$

$

Not available

33

Simplicity 2715078

Hex Capscrew, 5/16"-18 x 1-1/2"

$

$

Not available

34

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

35

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

36

Simplicity 2106756A

Bearing Housing

$

$

Not available

37

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, only 2 left!

0

38

Simplicity 2727013

Grease Fitting

$

$

Not available

39

Simplicity 80611012

Washer

$

$

Not available

40

Simplicity 2106757SM

Shaft Assembly

$240.99

$

In Stock, only 1 left!

0

41

Simplicity 2171242SM

Chain w/Conn. Link

$66.99

$

Usually ships in 2-12 days

0

42

Simplicity 2171220

Chain Guard

$

$

Not available

43

Simplicity 2720002

Lock Washer

$

$

Not available

44

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

45

Simplicity 171211

Belt Guard Assembly

$

$

Not available

46

Simplicity 2715078

Hex Capscrew, 5/16"-18 x 1-1/2

$

$

Not available

47

Simplicity 2720001

Lock Washer 5/16

$

$

Not available

48

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

49

Simplicity 2171248SM

Pulley

$103.99

$

Usually ships in 2-12 days

0

50

Simplicity 2713006

Set Screw, 5/16"-18 x 1/2"

$

$

Not available

51

Simplicity 2725003

Key

$

$

Not available

52

Simplicity 2106774ASM

Deflector

$29.99

$

Usually ships in 2-12 days

0

53

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8"

$

$

Not available

54

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

55

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

56

Simplicity 2715024

Hex Capscrew, 3/8 x 5/16

$

$

Not available

57

Simplicity 2177565ASM

Frame Clip

$13.99

$

In Stock, only 2 left!

0

58

Simplicity 2715136

Hex Capscrew, 7/16"-14 x 1

$

$

Not available

59

Simplicity 2718073

Flange Locknut, 7/16"- 14

$

$

Not available
