990784 - Simplicity 42" Mower Deck ARBOR ASSEMBLIES Parts Diagram

42" Mower Deck

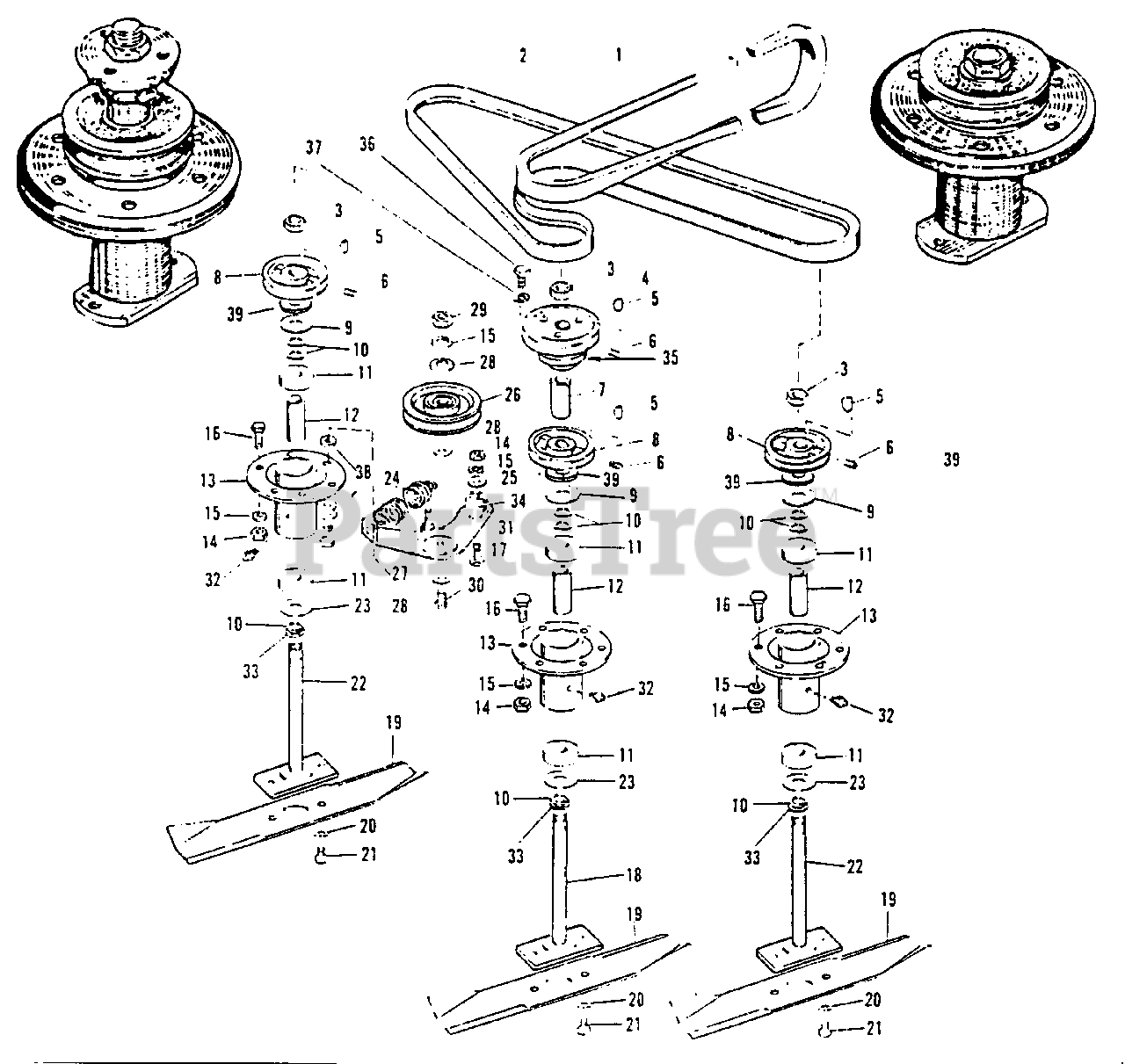

ARBOR ASSEMBLIES Parts Diagram

  • Title

1

Simplicity 2174687

Belt P.T.O.

$

$

Not available

2

Simplicity 2108209

Belt, "V" (Mower Spindle Drive)

$

$

Not available

3

Simplicity 2717517

Hex. Jam Lock Nut, 3/4"-16

$

$

Not available

4

Simplicity 2174189SM

Pulley

$113.99

$

Usually ships in 2-12 days

0

5

Simplicity 2725006

Key, Woodruff, 61

$

$

Not available

6

Simplicity 2713504

Set Screw, 5/16"-18 x 3/8"

$

$

Not available

7

Simplicity 2108436SM

Spacer

$13.99

$

In Stock, only 1 left!

0

8

Simplicity 2108142

Pulley

$

$

Not available

9

Simplicity 2108134

Backing Ring

$

$

Not available

10

Simplicity 2108181

Washer

$

$

Not available

11

Simplicity 2108202SM

Bearing

$11.99

$

In Stock, Qty 20+

0

12

Snapper 2108201SM

Spacer

$19.99

$

In Stock, only 2 left!

0

13

Simplicity 2108679

Arbor Tube Assembly

$

$

Not available

14

Simplicity 2717003

Full Hex., Nut, 3/8"-16

$

$

Not available

15

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

16

Simplicity 2705004

Hex. Cap Screw, 3/8"-16 x 3/4" lg.

$

$

Not available

17

Simplicity 2705010

Hex. Cap Screw, 3/8"-16 x 1 3/4" lg.

$

$

Not available

18

Simplicity 1685004SM

Arbor Crive Assembly

$

$

Not available

19

Simplicity 2108298

Knife Blade

$

$

Not available

20

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

21

Simplicity 2715024

Hex. Hd. Capscrew, 3/8"-16 x 5/8"

$

$

Not available

22

Simplicity 2108250SM

Arbor Assembly

$115.99

$

In Stock, only 1 left!

0

23

Simplicity 2108257SM

Washer

$6.99

$

In Stock, only 2 left!

0

24

Simplicity 2154369SM

Spring

$17.99

$

In Stock, only 1 left!

0

25

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

26

Simplicity 2108386SM

Idler Pulley

$

$

Not available

27

Simplicity 2156131SM

Stud

$

$

Not available

28

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

29

Simplicity 2717003

Full Lock Hex, Nut, 3/8"-16

$

$

Not available

30

Simplicity 2108418

Screw

$

$

Not available

31

Simplicity 2108416SM

Idler Lever Assembly
(Superseded to 2108416ASM)

$59.99

$

Usually ships in 2-12 days

0

32

Simplicity 2727014

Grease Fitting

$

$

Not available

33

Simplicity 2108472

Washer

$

$

Not available

34

Simplicity 1729274SM

Race Inner Bearing

$13.99

$

Usually ships in 2-12 days

0

35

Simplicity 2172854

Hub

$

$

Not available

36

Simplicity 2715045

Screw, Cap-3/8"-24 x 1 3/4"

$

$

Not available

37

Simplicity 2720002

Washer, Lock-3/8"

$

$

Not available

38

Simplicity 2719002

Washer, 5/16"

$

$

Not available

39

Simplicity 2108139

Flinger

$

$

Not available
