990785 - Simplicity 46" Sickle Bar DRIVE GROUP Parts Diagram

46" Sickle Bar

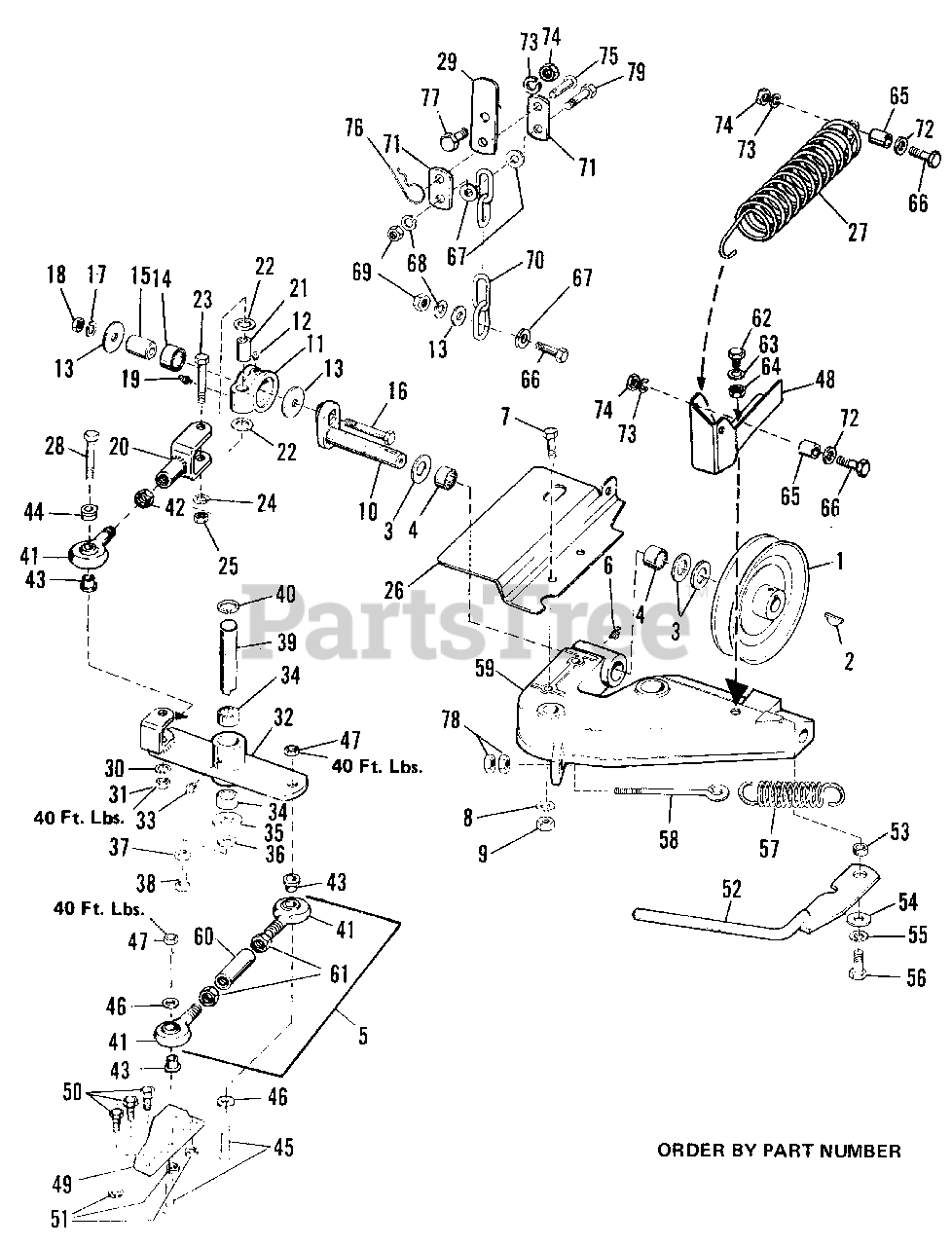

DRIVE GROUP Parts Diagram

  • Title

1

Simplicity 106485

Drive Pulley

$

$

Not available

2

Simplicity 2725504

Key, Hi-Pro

$

$

Not available

3

Simplicity 2101022

Washer

$

$

Not available

4

Simplicity 2154258SM

Bearing, Needle

$26.99

$

In Stock, only 2 left!

0

5

Simplicity 101110

Rod End Assembly

$

$

Not available

6

Simplicity 2705005

Fitting, Grease

$

$

Not available

7

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 NC x 1-1/4" lg.

$

$

Not available

8

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

9

Simplicity 2717003

Hex Nut, Full, 3/8"-16 NC

$

$

Not available

10

Simplicity 101006

Shaft, Crank

$

$

Not available

11

Simplicity 8161196

Housing, Pitman Bearing

$

$

Not available

12

Simplicity 2727002

Fitting, Grease

$

$

Not available

13

Simplicity 1924356SM

Washer
(Superseded to 703591)

$5.49

$

In Stock, Qty 17

0

14

Simplicity 2157678SM

Bearing, Needle

$34.99

$

Usually ships in 2-12 days

0

15

Simplicity 8161197

Race, Inner, Pitman Bearing

$

$

Not available

16

Simplicity 2715036

Capscrew, Hex Hd., 3/8"-16 NC x 2-1/4" lg.

$

$

Not available

17

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

18

Simplicity 2717003

Hex Nut, Full, 3/8"-16 NC

$

$

Not available

19

Simplicity 2727006

Fitting, Grease (45ø)

$

$

Not available

20

Simplicity 101104

Clevis Assembly, Pitman

$

$

Not available

21

Snapper 1729273SM

Bearing, Pivot Block

$76.99

$

In Stock, only 1 left!

0

22

Simplicity 2101025SM

Washer

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 2715036

Capscrew, Hex Hd., 3/8"-16 NC x 2-1/4" lg.

$

$

Not available

24

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

25

Simplicity 2717003

Hex Nut, Full, 3/8"-16 NC

$

$

Not available

26

Simplicity 101103

Shield

$

$

Not available

27

Simplicity 2101126SM

Spring

$46.99

$

In Stock, only 1 left!

0

28

Simplicity 2715043

Capscrew, Hex Hd., 3/8"-16 NC x 2-1/2" lg.

$

$

Not available

29

Simplicity 101083

Chain Support

$

$

Not available

30

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

31

Simplicity 2717003

Hex Nut, Full, 3/8"-16 NC

$

$

Not available

32

Simplicity 101095

Rocker Arm Assembly

$

$

Not available

33

Simplicity 2727002

Fitting, Grease

$

$

Not available

34

Simplicity 2154258SM

Bearing, Needle

$26.99

$

In Stock, only 2 left!

0

35

Simplicity 101035

Washer

$

$

Not available

36

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

37

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

38

Simplicity 2705004

Capscrew, Hex Hd., 3/8"-16 NC x 3/4" lg.

$

$

Not available

39

Simplicity 101030

Shaft, Rocker Arm

$

$

Not available

40

Simplicity 2154264SM

Ring, Retaining

$5.99

$

In Stock, only 2 left!

0

41

Simplicity 2101106SM

Rod End

$86.99

$

Usually ships in 2-12 days

0

42

Simplicity 2717016

Hex Nut, Full, 1/2"-20 NF

$

$

Not available

43

Simplicity 101107

Spacer

$

$

Not available

44

Simplicity 101108

Spacer

$

$

Not available

45

Simplicity 715143

Hex Capscrew, 3/8"-24 x 1-3/4" lg.

$83.99

$

Usually ships in 2-12 days

0

46

Simplicity 2157424SM

Washer

$7.49

$

In Stock, Qty 5

0

47

Simplicity 2717515

Hex Nut, Full, Lock, 3/8"-24 NF

$

$

Not available

48

Simplicity 101134

Mounting Assembly Cable

$

$

Not available

49

Simplicity 101074

Head, Sickle

$

$

Not available

50

Simplicity 715103

Capscrew, Hex Hd., 5/16"-24 NF x 3/8" lg.

$335.99

$

Usually ships in 2-12 days

0

51

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

52

Simplicity 101050

Latch Assembly

$

$

Not available

53

Simplicity 101053

Spacer, Latch

$

$

Not available

54

Simplicity 2719003

Washer, Plain

$

$

Not available

55

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available

56

Simplicity 2705042

Capscrew, Hex Hd., 7/16"-14 NC x 1-1/4" lg.

$

$

Not available

57

Simplicity 101064

Spring

$

$

Not available

58

Simplicity 101065

Eye Bolt

$

$

Not available

59

Simplicity 101109

Hinge

$

$

Not available

60

Simplicity 101111

Pivot End Rod

$

$

Not available

61

Simplicity 2717016

Jam Nut, Hex 1/2"-20 NF

$

$

Not available

62

Simplicity 2705041

Capscrew, Hex Hd., 7/16"-14 NC x 1" lg.

$

$

Not available

63

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available

64

Simplicity 2717022

Hex Nut, Full

$

$

Not available

65

Simplicity 2153073

Spacer

$

$

Not available

66

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

67

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

68

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

69

Simplicity 2717003

Hex Nut, Full, 3/8"-16 NC

$

$

Not available

70

Simplicity 175359

Chain, Lift

$

$

Not available

71

Simplicity 108199

Link, Mower Lift

$

$

Not available

72

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

73

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

74

Simplicity 2717003

Hex Nut, Full, 3/8"-16 NC

$

$

Not available

75

Simplicity 1708298SM

Pin

$

$

Not available

76

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

77

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

78

Simplicity 2717001

Hex Nut, Full, 5/16"-18 NC

$

$

Not available

79

Simplicity 2705016

Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available
