990785 - Simplicity 46" Sickle Bar FRAME AND DRIVE ASSEMBLIES Parts Diagram

46" Sickle Bar

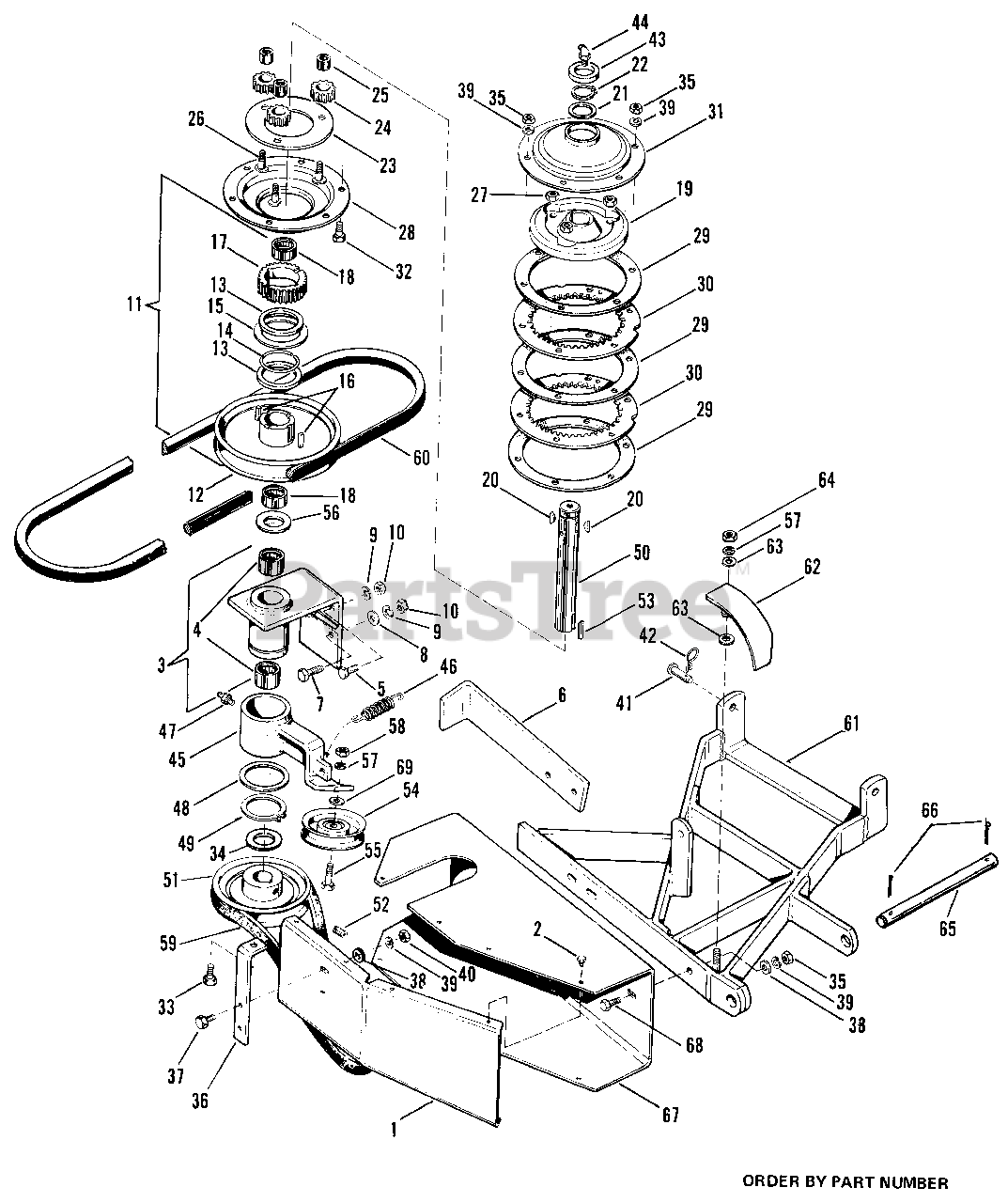

FRAME AND DRIVE ASSEMBLIES Parts Diagram

  • Title

1

Simplicity 174985

Shield

$

$

Not available

2

Simplicity 2714020

Self Tapping Screw

$

$

Not available

3

Simplicity 174974

Tube & Support Assy. w/Bearings

$

$

Not available

4

Simplicity 173739

Bearings

$

$

Not available

5

Simplicity 2715121

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

6

Simplicity 175353

Stop

$

$

Not available

7

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4"

$

$

Not available

8

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

9

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

10

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

11

Simplicity 173556

Pulley and Hub Assembly

$

$

Not available

12

Simplicity 173557

Hub and Pulley

$

$

Not available

13

Simplicity 161037

Washer

$

$

Not available

14

Simplicity 157326

Ring

$

$

Not available

15

Simplicity 161075

Seal

$

$

Not available

16

Simplicity 173570

Key

$

$

Not available

17

Simplicity 173553

Sun Gear

$

$

Not available

18

Simplicity 173738

Bearing

$

$

Not available

19

Simplicity 173542

Spider Hub

$

$

Not available

20

Simplicity 2725003

Key

$

$

Not available

21

Simplicity 2173668SM

Washer

$9.49

$

In Stock, only 2 left!

0

22

Simplicity 8051040

Retaining Ring

$

$

Not available

23

Simplicity 157333

Ring Bolt

$

$

Not available

24

Simplicity 157335

Pinion

$

$

Not available

25

Simplicity 157337

Needle Bearing

$

$

Not available

26

Simplicity 157336

Pinion Pin

$

$

Not available

27

Simplicity 2717530

Hex Nut, Full, Lock 5/16"-18

$

$

Not available

28

Simplicity 161054

Cover, Left Hand

$

$

Not available

29

Simplicity 161129

Gasket

$

$

Not available

30

Simplicity 157382

Ring Gear

$

$

Not available

31

Simplicity 173550

Cover

$

$

Not available

32

Simplicity 2715048

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

33

Simplicity 2715073

Hex Capscrew, 5/16"-18 x 7/8"

$

$

Not available

34

Simplicity 2168055SM

Thrust Washer

$

$

Not available

35

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

36

Simplicity 174821

Bracket

$

$

Not available

37

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available

38

Simplicity 2719006

Plain Washer, 5/16"

$

$

Not available

39

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

40

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

41

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

42

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

43

Simplicity 2118118SM

Oil Seal

$10.99

$

In Stock, Qty 6

0

44

Simplicity 2727004

Grease Fitting

$

$

Not available

45

Simplicity 174573

Arm Assembly

$

$

Not available

46

Simplicity 2159159SM

Spring

$37.99

$

In Stock, only 1 left!

0

47

Simplicity 2727002

Grease Fitting

$

$

Not available

48

Simplicity 174534

Washer, Special

$

$

Not available

49

Simplicity 174527

Retaining Ring

$

$

Not available

50

Simplicity 174544

Shaft

$

$

Not available

51

Simplicity 174542

Pulley

$

$

Not available

52

Simplicity 715169

Set Screw, 3/8"-16 x 3/4"

$

$

Not available

53

Simplicity 2154267SM

Key

$

$

Not available

54

Simplicity 2106716

Idler Pulley

$

$

Not available

55

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

56

Simplicity 2168055SM

Thrust Washer

$

$

Not available

57

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

58

Simplicity 2717013

Hex Nut, Full, 3/8"-16

$

$

Not available

59

Simplicity 2174911SM

V-Belt (Mower Drive)

$28.99

$

Usually ships in 2-12 days

0

60

Simplicity 2173037

V-Belt

$

$

Not available

61

Simplicity 174989

Frame Assembly

$

$

Not available

62

Simplicity 101117

Belt Guard Assembly

$

$

Not available

63

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

64

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

65

Simplicity 101015

Hinge Shaft

$

$

Not available

66

Simplicity 2722011

Cotter Pin, 3/16" x 1" lg.

$

$

Not available

67

Simplicity 174984

Shroud

$

$

Not available

68

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

69

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available
