990791 - Simplicity Dual Lift Lever DUAL LIFT LEVER Parts Diagram

Dual Lift Lever

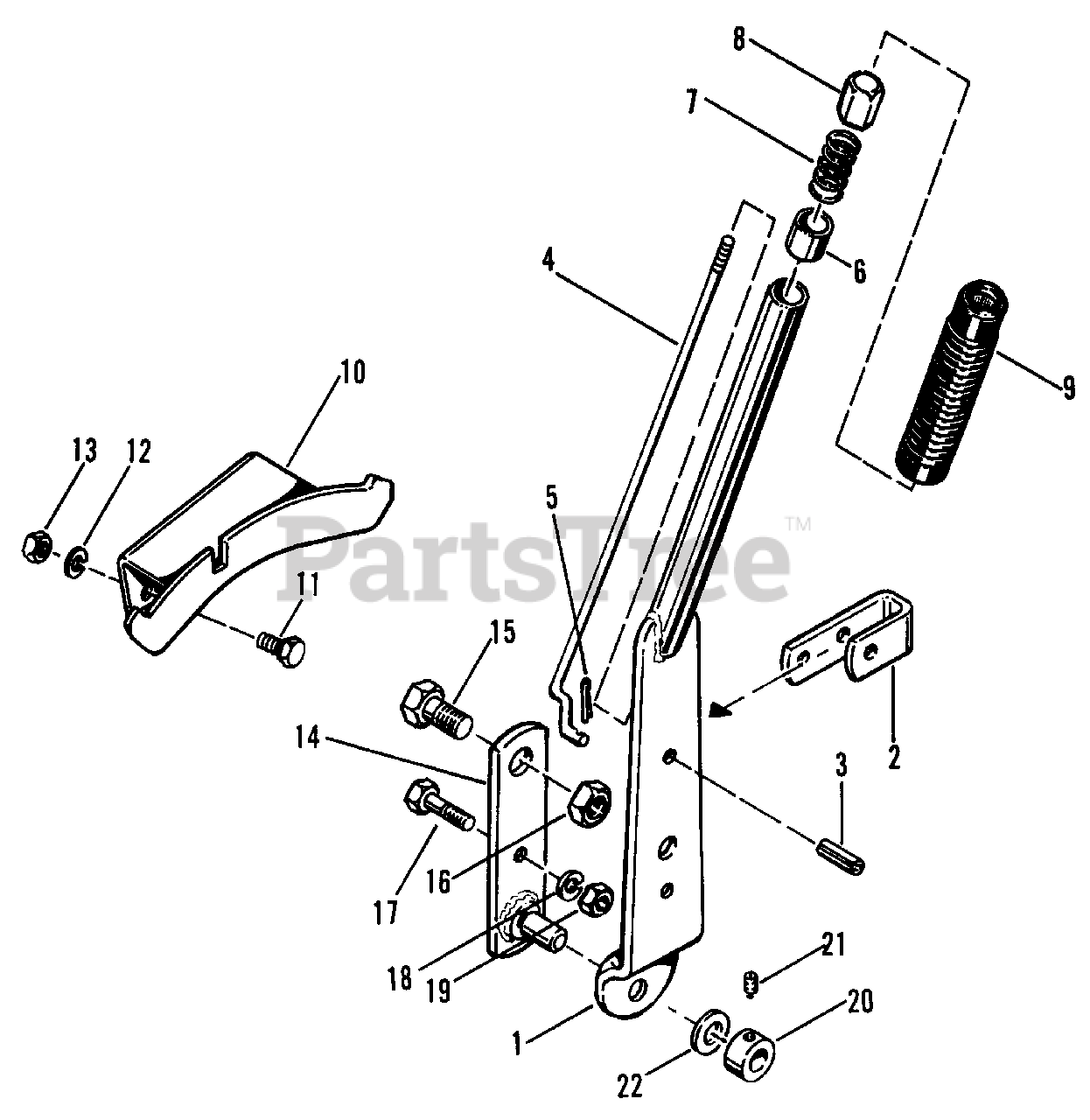

DUAL LIFT LEVER Parts Diagram

  • Title

1

Simplicity 157160

Lift Lever Assembly

$

$

Not available

2

Simplicity 157166

Lift Lever Latch

$

$

Not available

3

Simplicity 2723007

Roll Pin, 3/8"-1"

$

$

Not available

4

Simplicity 157167

Latch Rod

$

$

Not available

5

Simplicity 2722001

Cotter Pin

$

$

Not available

6

Simplicity 154226

Spacer

$

$

Not available

7

Simplicity 2152006SM

Spring

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 2154227SM

Thumb Button

$

$

Not available

9

Simplicity 2156209

Handle Grip
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

10

Simplicity 174718

Quadrant Assembly

$

$

Not available

11

Simplicity 2705004

Hex Capscrews, 3/8"-16 x 3/4" lg.

$

$

Not available

12

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

13

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

14

Simplicity 174711

Front Lift Lever Assy.

$

$

Not available

15

Simplicity 715138

Hex Capscrew, 1/2"-13 x 1"

$132.99

$

Usually ships in 2-12 days

0

16

Simplicity 2717521

Center Lock Jam Nut, 1/2" 13

$

$

Not available

17

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

18

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

19

Simplicity 2717003

Hex Nut, 3/8"-16

$

$

Not available

20

Simplicity 1729254SM

Set Collar
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

21

Simplicity 2713502

Set Screw, 5/16"-18 x 1/4" lg.

$

$

Not available

22

Simplicity 2719004

Plain Washer, 1/2"

$

$

Not available
